80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card

China 80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card supplier
80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card supplier 80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card supplier 80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card supplier 80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card supplier

Large Image :  80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: KMH-80R

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 30 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Power: AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires Ambient Temp: +5ºC~+35ºC
Temp Range: -20℃ ~ +150℃ Temp Uniformity: ±2.0℃
Exterior Material: Baked Painting Steel Insulation Material: Glass Wool


80 Litter Capacity Environmental Climatic Humidity Temperature Test Chamber For Card


Application

 Temperature Humidity Test Chamber is applied to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Specification :


Model KMH-80R KMH-80L

KMH-80S


Internal Dimensions
WxHxD (mm)
400X500X400
External Dimensions
WxHxD (mm)
600 X 1650 X 1220
Temperature Range -20 ºC~+150ºC -40ºC~+150ºC -70 ~+150ºC
Humidity Range 10%~98%R.H.
Indication Resolution/
Distribution
Uniformity of
Temperature
and Humidity
0.1ºC; 0.1% R.H / ±2.0ºC; ±3.0% R.H.
Control Accuracy
of Temperature
and Humidity
±0.5ºC; ±2.5% R.H.
Temperature Rising
/Falling Velocity
Temperature rising approx. 0.1~3.0ºC/min;
temperature falling approx. 0.1~1.5ºC/min;

Interior and Exterior Material
Interior material is SUS 304# stainless steel,exterior is stainless steel or see cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Water Purifier
Compressor French Tecumseh Brand, Germany Bizer Brand
Power AC 220V(±10%), 1∮ 3 Lines , 50/60HZ;
Weight (Kg)

300kg



2. Protection System



A. Heater protection switch if no water
B. Humidifier protection switch if no water
C. Heater over-current circuit breaker
D. Humidifier over-current circuit breaker
E. Circulating fan over-current overload protection
F. Compressor high voltage protection switch
G. Compressor overheat protection switch
H. Compressor over-current protection switch
I. Over-voltage under-phase protection switch
J. Circuit Breakers
K. Leakage switch
L Low humidifier protection
M. Water tank low water level warning
Controller noise isolation protection
O. Zero-crossing gate fluid power controller

3. Alarm indicator Equipment stops running and sends audible alarm when the above protection appears, meanwhile, fault, causes and solutions will be displayed on the screen.



Featuers

1. Delicate touch and excellent user experience;
2. Unique and compact design, topgrade appearance, stable performance and easy operation;
3. Can simulate a wide range of temperature and humidity environments;
4. Capable of testing large components, assemblies, and finished products;
5. Customized sizes and configurations avaible;
6. One year warranty
7.Visually attractive with large windows
8.Space-saving and Compact with optimized test chamber volumes
9.Powerful, suitable for a broad range of applications involving temperature and relative humidity

Standards Implement and Met
GB11159-89
GB10590-89
GB15091-89
GB/T2423.25-1992
GB/T2423.26-1992
GJB150.0-86

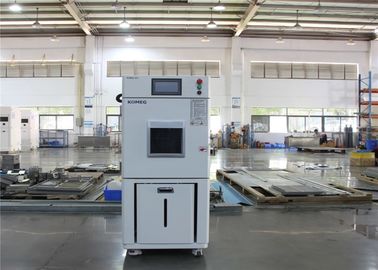

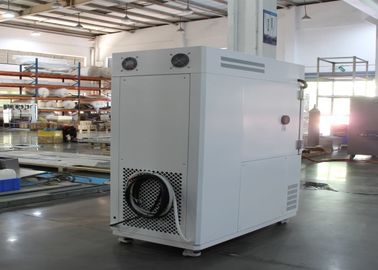

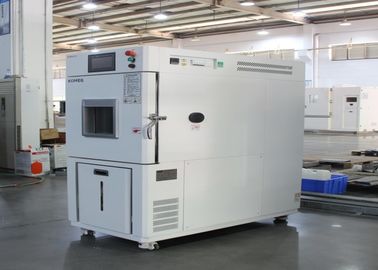

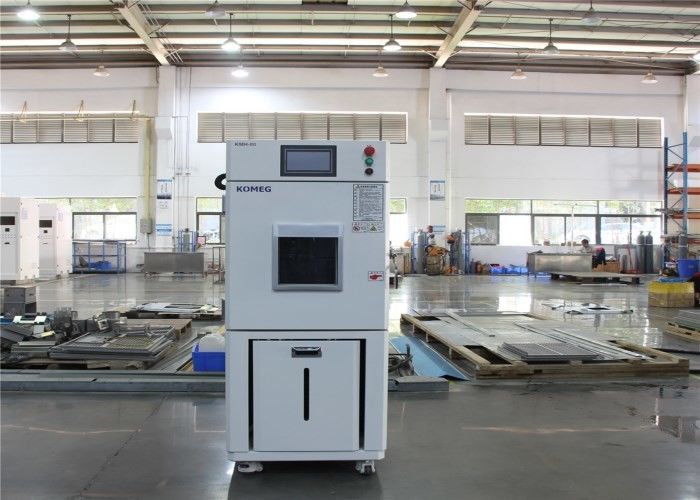

Photos show
80 Litter Capacity Environmental Climatic Testing Systems Humidity Temperature For Card
