Product Details:
Payment & Shipping Terms:
|
| Workspace Volumeial: | W 700 × H 700 × D 480 Mm | Exterior Size: | About W 900 × H 1735 × D 1500 Mm |
|---|---|---|---|
| Controller: | LCD Touch Panel | Temperature Range: | Single Stage Refrigeration System |
| Ramping And Soaking Rate: | -70℃↑ +100℃ About 60min(no-loadm,Temperature Of +25℃) +20℃↓-70℃ About 80min(no-loadm,Temperature Of +25℃) | Humidity Range: | 20%R.H.～98%R.H |
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

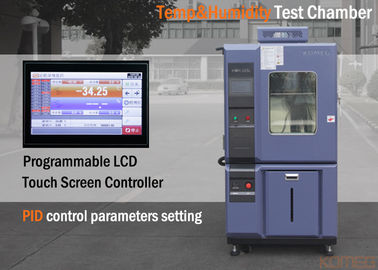

225L Stainless Steel Temperature And Humidity Chamber With LCD Touch Panel
Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
Specifications
| 1,Temperature | |
|
1.1Temperature range |
-70℃ ～ +150℃ |
| 1.2 Temp Deviation | ≦±2.0℃ |
| 1.3 Temp Constancy | ±0.5℃ |
| 1.4 Temp Uniformity | ≦2.0℃ |
|
1.5 Ramping and soaking rate |
-70℃↑ +100℃ About 60min(no-loadm,Temperature of +25℃) +20℃↓-70℃ About 80min(no-loadm,Temperature of +25℃) |
| 2,Humidity | |
| 2.1 Humidity range | 20%R.H～98%R.H |
| 2.2 Control range |
|
| 2.3Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| 2.4Humidity uniformity | ±3.0％RH(no-load) |
| 2.5Humidity constancy | ±2.0％RH |
| temperature and humidity performance measurement comply with related regulation of IEC60068-3-5 standard; Sensors placed in the air outlet. | |
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
Company introduction:
Since 1990, manufacturers of custom environmental chambers and standard environmental chambers,
Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude
chambers, temperature chambers, temperature and humidity chambers, environmental test chamber
manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar
panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in
chambers, laboratory test chambers, environment test rooms.
