Stainless Steel Hot Air Circulation Drying Cabinet Oven Metal Pharmaceutical

Large Image : Stainless Steel Hot Air Circulation Drying Cabinet Oven Metal Pharmaceutical

Product Details:

Place of Origin:	China
Brand Name:	Komeg
Certification:	CE
Model Number:	KOV-3456B

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	rigid foam and wooden box
Delivery Time:	35 days after confirm the order
Payment Terms:	L/C, T/T, Western Union, D/P
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Powder:	200kg	Interior Size:	W 1020 × H 1100 × D 850 Mm
Material:	Interior Material: SUS 316# Stainless Steel	Exterior Material:	Cold Painting
Insulation Materials::	Glass Fiber	Temp Range:	+200℃ ～ +300℃
Highlight:	large industrial ovens , vacuum drying oven , Hot Air Circulation Drying Cabinet Oven Metal

Custom Size Industrial Drying Oven Drying Cabinet For Cable Pharmaceutical Powder

OEM&ODM are welcome ,more information , pls kindly contact :anna@komegtech.com

Application

Drying ovens are divided into electric heating blast drying ovens and vacuum drying ovens according to

different types of dry materials. Nowadays, they have been widely used in chemical industry, electronic

communications, plastics, cables, electroplating, hardware, automobiles, optoelectronics, and rubber

products. Die, spraying, printing, medical, aerospace and colleges and other industries. Due to the huge

market demand, the variety of drying ovens is diversified, and the quality of the products is not the same.

In order to make people understand the drying oven more clearly, the quality of the drying oven should be

determined with a pair of eye-catching eyes.

Technical Specification

Model	KOV-3456B
Temp Range	+200℃ ～ +300℃ (
load	1000kg
Interior size	W 1500 × H 1200 × D 1800 mm
Exterior size	W 1940 × H 1550 × D 2570 mm
Door	Double door ,middle open
Material	stainless steel
Insulation materials	Glass fiber
Work timer	Digital timer type 1, range 0 to 9999min (after the temperature is reached, timing starts, when timing is completed, operation stops
Tray	SUS 316# 9 layers Stainless steel tray , bearing a total of 200kg powder hot plate attached below each layer. Tray Size: W 1000 × H 50 × D 800 mm

Other specification

Temperature controller	Korea Original imported thermostat ST-540 High precision (0.1%), high performance Supports multiple inputs (T/C, RTD, DCV) Can complete multiple output and simultaneous output (Max 4 points) The parameter is easy to operate and can be set by text Can support the suppression of system overshoot (Overshoot) function Alarm output 1 point Auxiliary output state operation screen display Each zone input adjustment function (Max 4 Zone) The function of controlling heating and cooling PID automatic adjustment function (AT Gain) Supports multiple communication protocols (Modbus, etc.) Achieve high quality and high reliability (CE, CUL, ISO, etc.)
Safety Protection device	A. Oven temp breaker B .buzzer C. Fault indicator D. No fuse switch E. Ground protection F.Phase loss protection
Power supply	AC 3ψ4W 380V 50Hz (R,S,T,N Add ground wire) (Voltage fluctuations≦±10%)

Feathers :

Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods.

This type of product can meet the following criteria:

GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test

GJB360．8-87(MIL-STD．202F) High Temperature Life Test

GBJl50．3(MIL-STD-810D) High Temperature Test

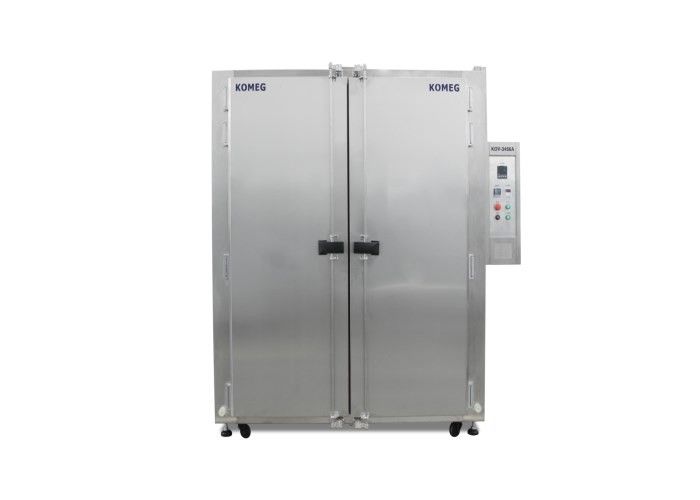

Photo show

Stainless Steel Hot Air Circulation Drying Cabinet Oven Metal Pharmaceutical 0

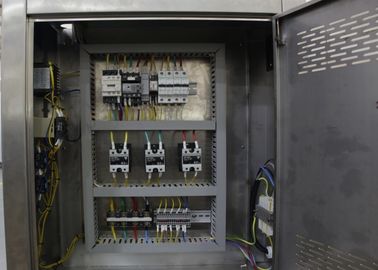

Inside of chamber

Stainless Steel Hot Air Circulation Drying Cabinet Oven Metal Pharmaceutical 1

Tag:

Contact Person: Ms. KOMEG

Tel: +86-13143135835

Fax: 86-769-83396675
