Product Details:
Payment & Shipping Terms:
|
| Products Name: | KMH-1500L Programmable Temperature And Humidity Chamber | Application: | Electronic Products To Do The Heat And Cold Resistance Test |
|---|---|---|---|
| Material: | Stainless Steel Plate (SUS304) | Temperature Range: | -40 °C~ +150°C |
| Humidity Range: | 20%R.H ~ 98%R.H | Power Supply: | AC 380V/50Hz 3 Phase 4 Wires+Ground Wires |
| High Light: | climatic test chambers,Climatic Testing Chamber |
||

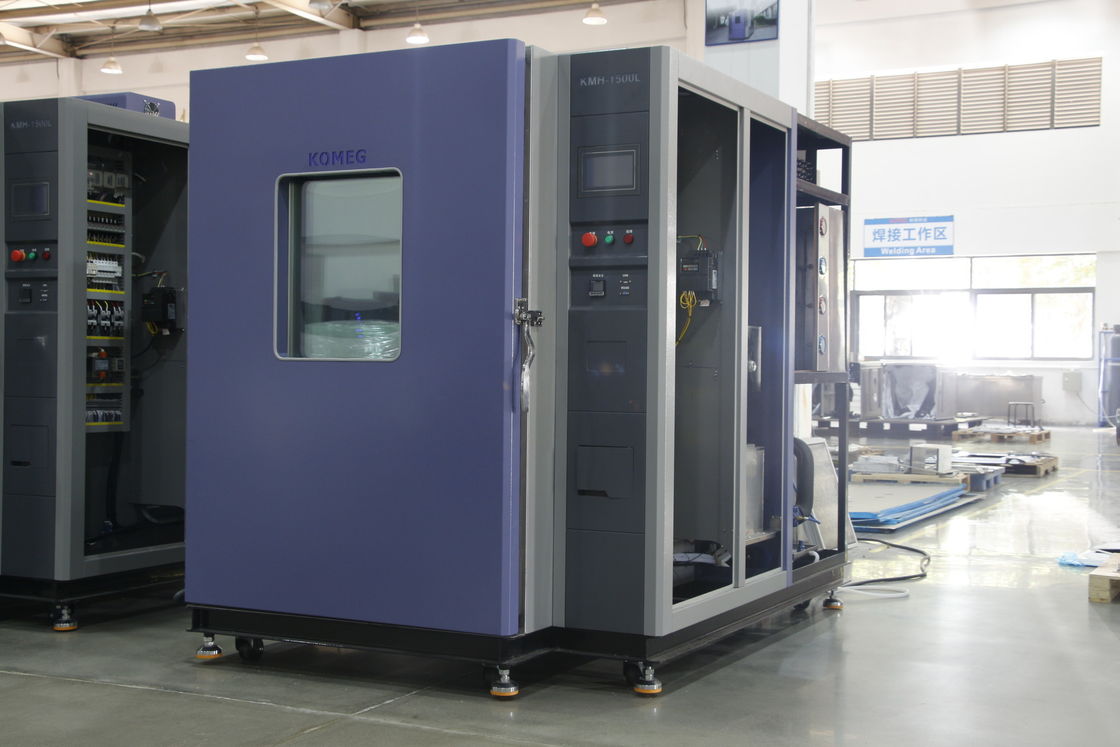

KMH-1500L Programmable Temperature and Humidity Test Chamber
KOMEG Programmable Climatic Chamber with high precision microcomputer control temperture and
humidity system, with PID control the refrigerant flow to make the system' s heating / humidification
volume reduction, to achieve low power consumption, energy, carbon reduction effect, cooling, heating,
humidity control intelligent electronic control, long-term stable use.
Copper-tube-bending machine applied, nitrogen protective welding,
ensuring the cleanness of refrigeration system, energy-saving, electrical control cabinet seperated
design for ensuring the components longer service time.
| Programmable Temperature and Humidity Test Chamber | ||||||||||||
| Model(KMH) | 1500L | |||||||||||
| Interior chamber size(mm) | W | 1000 | ||||||||||
| H | 1500 | |||||||||||
| D | 1000 | |||||||||||
| Exterior chamber size(mm) | W | 1550 | ||||||||||
| H | 1895 | |||||||||||
| D | 2230 | |||||||||||
| Temp. range |
-40°C~+150°C |
|||||||||||
| Temp. deviation | ≤ ±2.0°C | |||||||||||
| Temp. fluctuation |
±0.5°C |
|||||||||||
| Heating rate | from +20°C ~ +150°C ≤ 60 min (with load) | |||||||||||
| Cooling rate | from +20°C ~ -40°C ≤ 40 min (with load) | |||||||||||
| Humidity range | 20~98%R.H | |||||||||||
| Humidity fluctuation | ±2.0%R.H | |||||||||||
| Humidity deviation |
+2.0/-3.0RH (humidity > 75%RH) ±5.0%RH (humidity ≤ 75%RH) |
|||||||||||
| System | ||||||||||||
| Balanced & Humidity Control System | ||||||||||||
| Internal material | Matte stainless steel plate(SUS 304) | |||||||||||
| External material | Baked painting quality steel sheet | |||||||||||
| Insulation material | Rigid polyurethane Foam+glass fiber wool | |||||||||||
| Chamber door |
Single-open door, left-opening, with heating wire was installed at the door frames to prevent condensation at low temperatures |
|||||||||||
| Observation window |
With 1 set 400*500mm (width*height) observation window installed on the door, multi-hollow electric insulation coated glass prevent condensation effectively |
|||||||||||
| Lighting device | One light of 11W/AC 220V, located on observation window | |||||||||||
| Heater | Quality nickel-chromium alloy wire electric heaters, Non-contact control mode (SSR) | |||||||||||
| Condensate outlet hole |
Equipped with drainage hole and pipes for test space condensed water and refrigeration system condensate |
|||||||||||
| Cable hole | Two cable holes of 100mm located on both sides of the test chamber, with rubber stopper and plastic cover | |||||||||||
| Sample-holder | Two layers of stainless steel sample holder. Weight bearing 30KG/layer | |||||||||||
| Moving casters | With 4 mobile casters (with foot cups) | |||||||||||
| Electrical control cabinet | Total power circuit breaker, over-temperature protection | |||||||||||
Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
Why Choose KOMEG?
Over 28 Years' Experience
KOMEG has been the brand of Komeg Technology Industrial since 1990, which was an enterprise focused
in researching, manufacturing and selling reliability testing device. Including High and Low Temperature
Testing chamber, Power Battery High and Low Temperature Explosion Proof Test Chamber, Thermal Shock
Testing Chamber, Walk-in Temperature and Humidity Test Chamber, Temperature and Humidity Altitude test
Chamber, Precious Oven Test Chamber, etc. We built producing factory 1 and factory 2, which is about
10000 M. Both of our factories strictly obey ISO9001 and ISO14001 standards, to ensure high performance
and reliability of our products.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
