Products Name: | KMH Temperature And Humidity Chamber | Application: | Electronic Products To Do The Heat And Cold Resistance Test |
---|---|---|---|
Material: | Stainless Steel Plate (SUS304) | Refrigeration System: | Air Cooled And Water Cooled For Option |
Temperature Range: | -70 °C~ +150°C | System: | Balanced And Humidity Control System |
Power Supply: | AC 380V/50Hz 3 Phase 4 Wires+Ground Wires | ||
High Light: | temperature and humidity chamber,temperature test chamber |

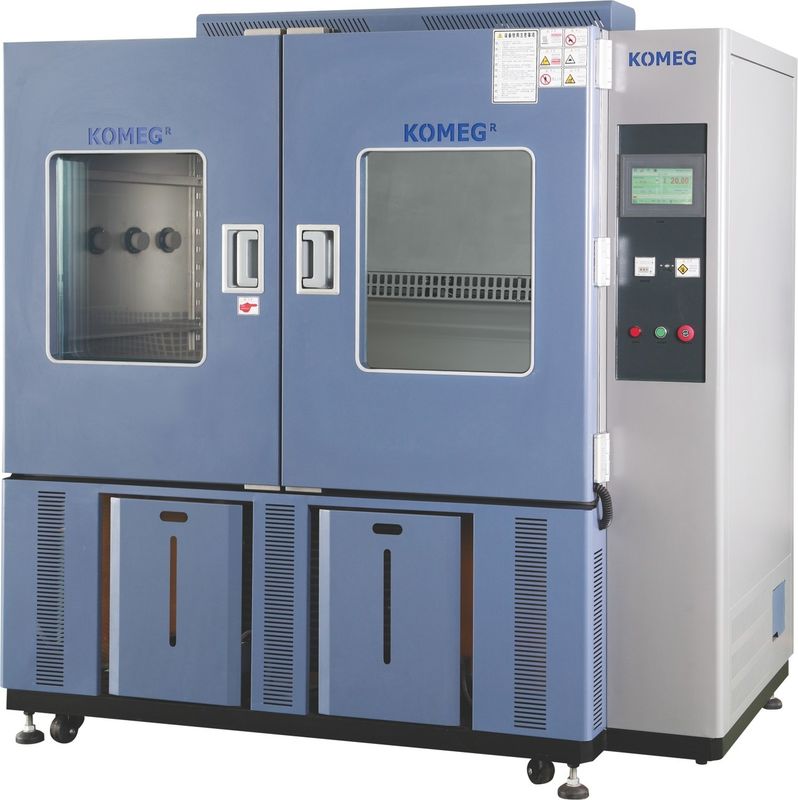

Temperature range -70°C ~ +150°C,baked painting steel,climatic test chamber
Climatic Test Chamber used for electronic products resistance test
KOMEG Temperature and Humidity Chamber used for inspecting the equipment and testing the
performance of materials in various environments and all kinds of materials which need to test the heat
resistance, cold restance. for LCD, PCB and other products do the high temperature aging test, for
automobile to do the high and low temperature, damp and heat test.
Temperature and Humidity Chamber | ||||||||||||
Model(KMH) | 225S | 408S | 800S | 1000S | ||||||||
Interior size(CM) | W | 70 | 70 | 100 | 100 | |||||||
H | 70 | 75 | 100 | 100 | ||||||||
D | 48 | 80 | 80 | 100 | ||||||||
Exterior size(CM) | W | 90 | 90 | 120 | 120 | |||||||
H |
173.5 |
178.5 | 203.5 | 203.5 | ||||||||
D | 150.5 | 182 | 181.5 | 201.5 | ||||||||
Weight(kg) | 330 | 450 | 550 | 650 | ||||||||
Temp. range |
-70°C~+150°C |
|||||||||||
Temp. uniformity | ±2.0°C | |||||||||||
Temp. fluctuation |
±0.5°C |
|||||||||||
Heat up time | -70°C~+100°C Within 60 min | |||||||||||
Cool down time | +20°C~ -70°C Within 80 min | |||||||||||
Humidity range | 20~98%R.H | |||||||||||
Humidity fluctuation | ±2.5%R.H | |||||||||||
Humidity uniformity | ±3.0%RH (>75%RH) ±5.0%RH (≤75%RH) | |||||||||||
System | ||||||||||||
Balanced & Humidity Control System | ||||||||||||
Interior material | Stainless steel plate(SUS 304) | |||||||||||
Exterior material | Baked painting steel or stainless steel(SUS304) | |||||||||||
Insulation material | Rigid polyurethane Foam+glass fiber wool | |||||||||||
Refrigeration system | Air cooled and Water Cooled for option | |||||||||||
Hermetic compressor,stage refrigeration system | ||||||||||||
Controller |
Touch screen controller Chinese, English, Russian menu Operation mode: setting/program Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant |
|||||||||||
Safety devices |
No-fuse breaker, over-pressure, over-heat and over-current protectors for compressor over-temp. protector, over-load protector of fan, dry heat protector, short of water protector |
|||||||||||
Standard Accessories | Observation Window*1, cable port(port 50mm)*2, shelves*2, chamber lamp*1, power cable 2m | |||||||||||
Ambient Temp. | +5ºC~+35ºC | |||||||||||
Equipment power | 8KW | 7.2KW | 8.5KW | 11KW | ||||||||
Weight(kg) | 450 | 870 | 880 | 920 | ||||||||
Power | AC 380V/50Hz ,3 Phase 4 wires +Ground Wires |
Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
Why Choose KOMEG?
Over 28 Years' Experience
KOMEG has been the brand of Komeg Technology Industrial since 1990, which was an enterprise focused
in researching, manufacturing and selling reliability testing device. Including High and Low Temperature
Testing chamber, Power Battery High and Low Temperature Explosion Proof Test Chamber, Thermal Shock
Testing Chamber, Walk-in Temperature and Humidity Test Chamber, Temperature and Humidity Altitude test
Chamber, Precious Oven Test Chamber, etc. We built producing factory 1 and factory 2, which is about
10000 M. Both of our factories strictly obey ISO9001 and ISO14001 standards, to ensure high performance
and reliability of our products.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
