| Products Name: | Walk-in Constant Temperature And Humidity Chamber | Application: | Suitable For High And Low Temperature,hot And Humidity Test |
|---|---|---|---|
| Material: | Stainless Steel Plate (SUS304) | Temperature Range: | -60 °C~ +120°C For Option |
| System: | Balanced And Humidity Control System | ||
| High Light: | temperature and humidity chamber,temperature test chamber |
||
Walk-in Constant Temperature and Humidity Chamber to test various performance in temperature or humidity environment

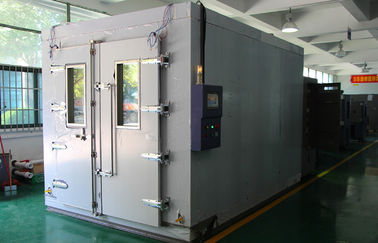

Walk-in Constant Temperature And Humidity Chamber
KOMEG Walk-in Temperature and Humidity Test Chambers are suitable for aerospace products,
electronic instruments, materials, electrical and electronic products, all kinds of electronic components
to test the various performance cables in the high and low temperature, or in hot and humidity
environment.
| Model | KMHW | ||||||
| 4 | 6 | 8 | 13 | 17 | 21 | ||
| Volume(m3) | 9 | 12.9 | 16.8 | 27 | 35.2 | 43.3 | |
| Interior Dimension(cm) | W | 210 | 300 | 390 | 300 | 390 | 480 |
| H | 210 | 210 | 210 | 210 | 210 | 210 | |
| D | 205 | 205 | 205 | 430 | 430 | 430 | |
| Exterior Dimension(cm) | W | 325 | 416 | 505 | 505 | 505 | 595 |
| H | 235 | 235 | 235 | 235 | 235 | 235 | |
| D | 225 | 225 | 225 | 225 | 450 | 450 | |
| System | Balanced and Humidity Control System | ||||||
| Temp.range | -60°C~120°C for option | ||||||
| Humidity range | 20%~95% | ||||||
| Temp. fluctuation | ±0.5°C | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2°C | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat up time | +20°C~+80°C Within 60 min | ||||||
| Cool down time | +20°C~-55°C , -40°C , -20°C ,-10°C Within 120 or 90 or 60 min | ||||||
| Internal material | Stainless steel plate(SUS 304) | ||||||
| External material | Baked painting steel or stainless steel (SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (cm) | Single wing door : W80*H180 ; Double wing door :W160*H180 | ||||||
| Refrigeration system |
Water cooled ( HFC-507 and HFC-23 ) Semi-hermetic compressor, single stage or cascade refrigeration system, CFC free referigerant |
||||||
| Safety devices |
No fuse breaker, over pressure, over heat and over current protectors for compressor, over temperature protector, over load protector of fan and dry heater |
||||||
| Standard accessories | Observation window*1, cable port(50mm)*1, chamber lamp*1, status indicator light*1 | ||||||
| Ambient temp. | 5°C~+35°C | ||||||
| Power | AC 380V (±10%) 50Hz 3 phase 4 wires + Ground Wires | ||||||
Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
Why Choose KOMEG?
Over 28 Years' Experience
KOMEG has been the brand of Komeg Technology Industrial since 1990, which was an enterprise focused
in researching, manufacturing and selling reliability testing device. Including High and Low Temperature
Testing chamber, Power Battery High and Low Temperature Explosion Proof Test Chamber, Thermal Shock
Testing Chamber, Walk-in Temperature and Humidity Test Chamber, Temperature and Humidity Altitude test
Chamber, Precious Oven Test Chamber, etc. We built producing factory 1 and factory 2, which is about
10000 M. Both of our factories strictly obey ISO9001 and ISO14001 standards, to ensure high performance
and reliability of our products.
