KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat

KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat
KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat

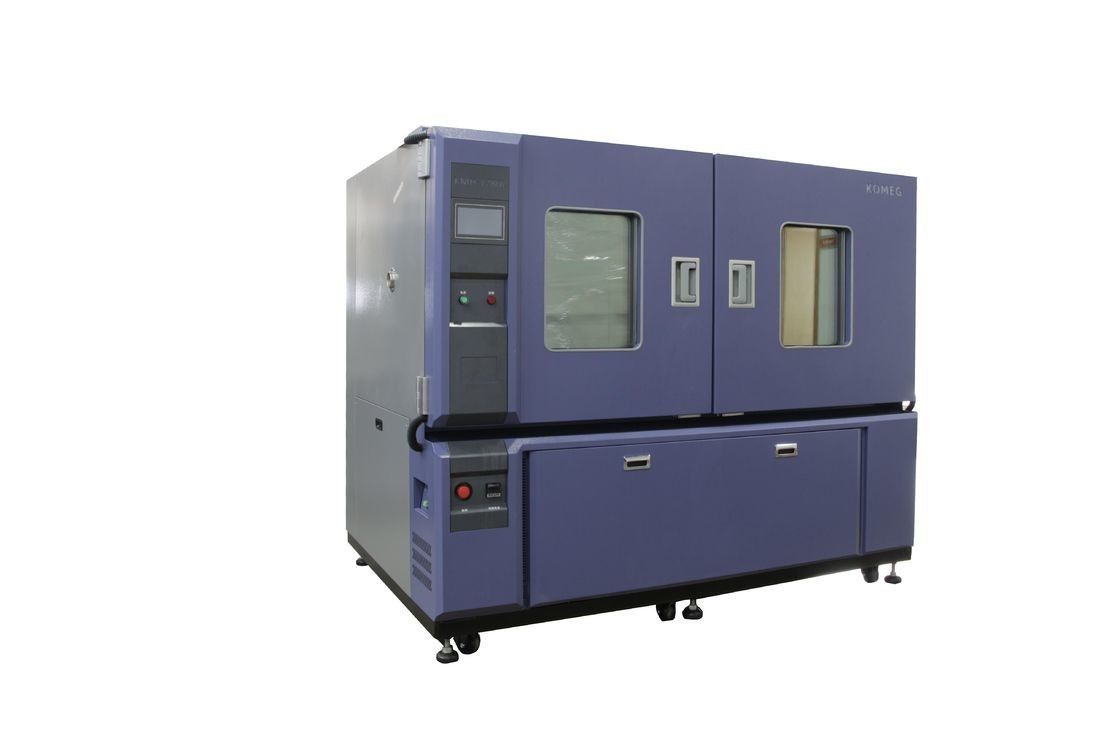

Large Image :  KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat

Product Details:
Place of Origin: China Dongguang
Brand Name: KOMEG
Certification: CE/ISO
Model Number: KMHEG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: pp film and Wooden Case
Delivery Time: 60 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: More Than 1,000 Sets Per Years
Detailed Product Description
Warranty: At Least Two Years Temperature: -20℃~+150℃
Temp Uniformity: ±2℃ Ambient Temp:: +5ºC~+35ºC
Exterior Material: Baked Painting Steel
High Light:

temperature and humidity chamber

,

humidity and temperature controlled chamber

     Advanced Technologies, easy to operate programmable thermostat , Test Chamber



●  Advanced Technologies, easy to operate programmable thermostat



Specification :



Model DTH-80A DTH-80B DTH-80C
Internal Dimensions
WxHxD (mm)
400X500X400
External Dimensions
WxHxD (mm)
1150X1150X1050
Temperature Range (RT+10ºC) ~+150ºC 0~+150ºC -20 ~+150ºC
Humidity Range 20%~98%R.H.
Indication Resolution/
Distribution
Uniformity of
Temperature
and Humidity
0.1ºC; 0.1% R.H / ±2.0ºC; ±3.0% R.H.
Control Accuracy
of Temperature
and Humidity
±0.5ºC; ±2.5% R.H.
Temperature Rising
/Falling Velocity
Temperature rising approx. 0.1~3.0ºC/min;
temperature falling approx. 0.1~1.5ºC/min;

Interior and Exterior Material
Interior material is SUS 304# stainless steel,exterior is stainless steel or see cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Water Purifier
Compressor French Tecumseh Brand, Germany Bizer Brand
Power AC 220V(±10%), 1∮ 3 Lines , 50/60HZ;
Weight (Kg) 75



KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat 0



Features
A. Reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% R.H.
B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -40 ºC and 150 ºC.
C. Forced ventilation loops design, balance temperature & humidity control system (BTHC).
D. We can provide custom-made machine and optional accessories satisfied your special requirements.
E. Improved programming and data collection via computer
F. Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
