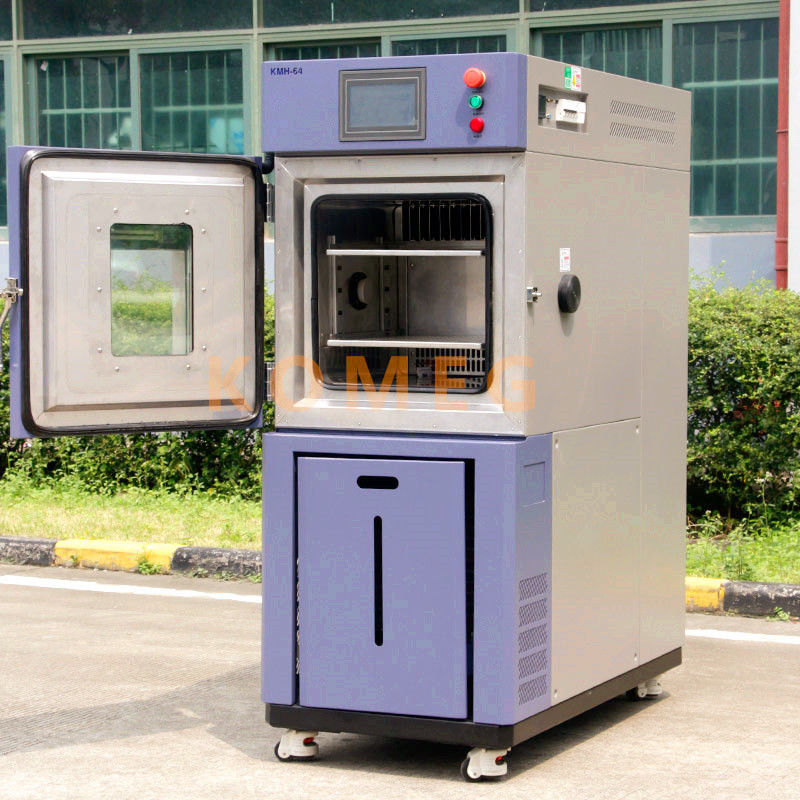

64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen

China 64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen supplier
64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen supplier 64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen supplier 64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen supplier 64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen supplier

Large Image :  64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, ISO9001
Model Number: KMH-64R

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Contact Now
Detailed Product Description
Temperature Range: -20℃ ~ +150℃ Temp Deviation: ≦±2.0℃
Workspace Volume: W 400 × H 400 × D 400 Mm Exterior Size: W 600 × H 1570 × D 1200 Mm
Door: Single Door, Left Open Inner Wall Material: SUS304 # Matte Stainless Steel Plate

Temperature range-20℃ to +150℃ 64 LTemperature And Humidity Chamber with 7-inch TFTdisplay screen



Product Overview



Able to accurately simulate a wide range of complicated natural environments, and is suitable for



reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental



testing equipment and test methods for the basic parameters of electric and electronic products under



the condition of humidity, low temperature, high temperature, and constant heat.





Application



Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical



appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research



institution, inspection and quarantine bureau, university etc..





Specifications



Temperature
Temperature range -20℃ ~ +150℃
Temp Deviation ≦±2.0℃
Temp Fluctuation ±0.5℃
Temp Uniformity ≦2.0℃
Ramping and soaking rate

Heating up rate:

-20℃ to +100℃ about 35 min (no-load, ambient temperature +25℃)

Cooling rate::

+20℃ to -20℃ about 45 min (no-load, ambient temperature +25℃)

Humidity
Humidity range 20~98%R.H
 Control range



Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

Humidity uniformity ±3.0%RH(no-load)
Humidity fluctuation ±2.0%RH
Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.
. Chamber Structure

Overall structure and chamber was composed of three parts as below.

Insulation box, separate refrigeration units, and electrical control cabinet.

Chamber size

Workspace volume: W 400 × H 400 × D 400 mm

Exterior size: W 600 × H 1570 × D 1200 mm (not including the machine protruding part)

 Insulation box

Wall material: high-quality carbon steel with static color spray

Inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

Door

Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.
Observation window With observation windowW210×H230mm, multi-hollow electric insulation coated glass prevent condensation effectively
Lighting device 11W/AC220V *1 located on observation window
 Heating

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

 Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device.

Water outlet hole Available for drain the condensate water
Cable port Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover
 Shelf for samples Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer
 Mobile Casters Mobile Casters with foot cups
Electric control box Total power circuit breaker, over-temperature protection.
 Water supply system Water pump automatic supply




Product details



64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.





64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen





After-sales Service and Training



Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty



period, the user will be charged properly. Irregular examination and life-long service are available;



Note: If needed, provide 2 operators for on-site installation and training



64L -20℃ ~ +150℃ Temperature Humidity Chamber With 7 - Inch TFT Display Screen
