Product Details:
Payment & Shipping Terms:
|
| Cooling Mode: | Water Cooled | Heater: | Iron-chrome Wire Heater |
|---|---|---|---|
| Interior Material: | Stainless Steel(SUS04) | Exterior Material: | Baked Painting Steel Or Stainless Steel(SUS04) |
| Controller: | Touch Screen Programmable Controller | Temp Range: | -40ºC~+150ºC |
| Highlight: | 3000L Rapid Thermal Cycle Chamber,Thermal Cycle Chamber With Observation Window,GB10592-89 Temperature Cycling Chamber |
||
Water cooling 3000L papid temp.change chamber with glass incorporating heat generator
Application
The Rapid-Rate Thermal Cycle Chamber is ideal for test requiring quick changes 15°C/min ramp rate in
specimen temperature and 23°C/min ramp rate for air temperature. It covers various applications from
JEDEC, IEC standards to screening.
It features new technologies, such as a specimen temperature control function maintaining linear
specimen temperature change rates during rapid thermal cycling, and temperature ramp control.
Features:
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation
and easy maintenance.
Wide variety of refrigeration available for performance and temperature range flexibility.
Programmable LCD touchscreen controller for product or air-change available.
Specifications
| Model | ESS-3000S | ||
| Insaide dimension(W*H*D)cm | |||
| Performance | Temp.range | -40℃ ～ +150℃ | |
| Temp.fluctuation | ±0.5℃ | ||
| Temp.deviation | ±2.0℃ | ||
| Rapid Temp Chang | Rapid Temp Change+80℃～-40℃ Full Linear Control 3℃/min,Rapid Temp Change-40℃～+80℃ Full Linear Control 3℃/min, |
||
| Temp.regulating methods | BTC methods | ||
| Material Science | Interior material | Stainless Steel (SUS304) | |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||
| Insulation material | Rigid polyurethane Foam | ||
| Refrigeration system | Refrigerator | cascade refrigeration system | |
| Cooling Mode | Water Cooled | ||
| Heater | Iron-chrome wire heater | ||
| Blower | Centrifugal Blower | ||
| Door window | Glass incorporating heat generator | ||
| Temp sensor | Pt-100 Platinum resistance | ||
| Controller | Touch Screen Programmable Controller | ||
| Safety device | Over protection,over-heat,over-current protection for compressor,over-temperature protection,over-load protection for blower,hydraulic and lack of water protection,leakage protection | ||
| Standard configuration | Observation window,Cable port,(Ø50mm,1piece for both left and right side),baffle(2sets),chamber lamp | ||
| Select accessories | RS-232C,recorder,special cable port,special specimen holder,additional baffle | ||
| Power | AC 380V/50HZ 3phase4wires+Ground wires | ||
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode

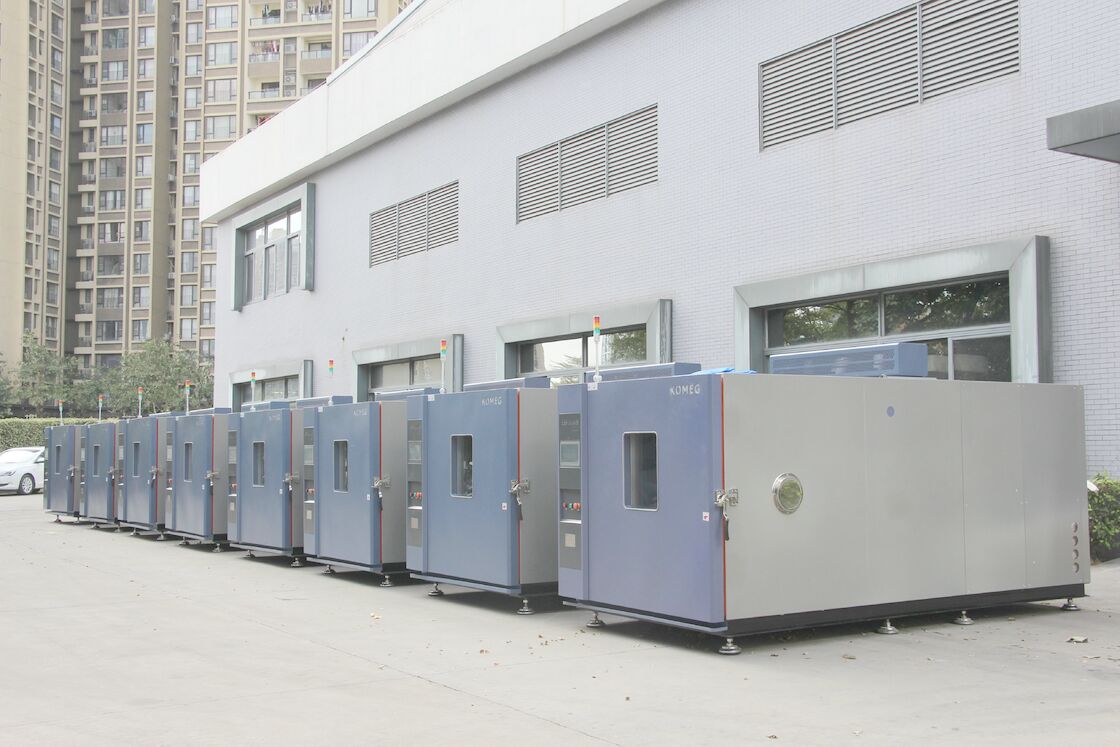

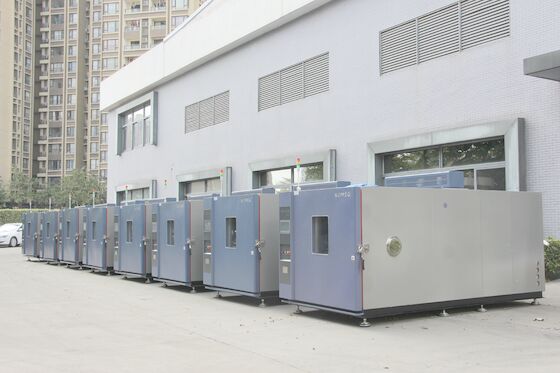

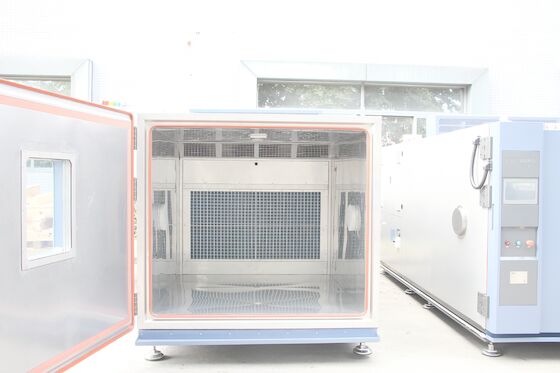

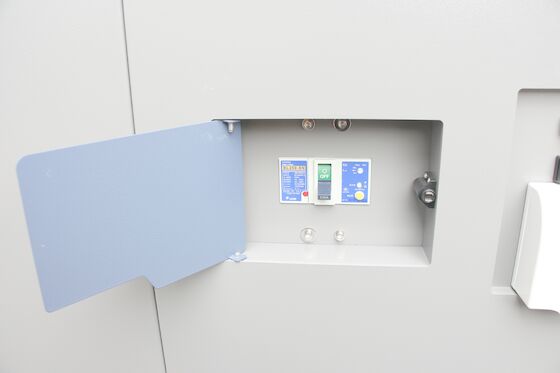

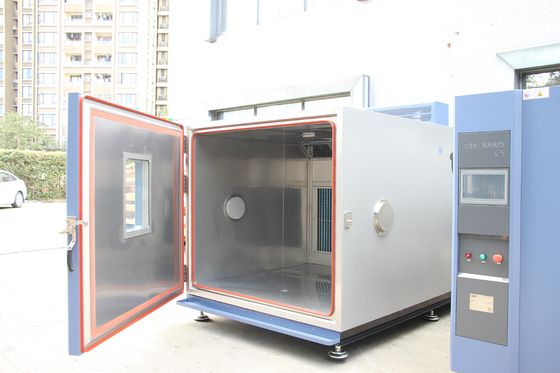

Photos details
Packing details
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched
first, then use strong plywood case for easyload and transport, and to keep the chambers from potential
crash or impact.
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
