Product Details:
Payment & Shipping Terms:
|
Chamber Volume: | (W*H*D=400*400*400mm) | Humidity Control: | 20 To 98%RH |
---|---|---|---|
Temperature Range: | -40 To 150°C | Heat Up Rate: | ≥3°C/min |
Pull Down Rate: | 1 To 3°C/min As Standard And Customized Accept | Material: | Stainless Steel Plate SUS 304 |
Power: | AC 380±10, 50Hz | ||
High Light: | 64L Temperature And Humidity Chamber,Touchscreen Humidity Test Chamber,64L Humidity Test Chamber |
64L LCD Touchscreen Display Temperature And Humidity Chamber
A temperature and humidity chamber (also known as a climate or climate chamber) simulates the effect of a range of temperature and humidity conditions on a product or material, such as telecommunications equipment or photovoltaic solar panels exposed to outdoor temperature and humidity conditions. They have applications in as diverse industries as food science, semiconductors, and military quality assurance. A good constant temperature and humidity chamber is critical to assessing the potential success or failure of a product in the field. Climatic test chambers come in a variety of sizes, from small boxes that fit on a bench to room-sized chambers for large objects or testing large batches of products simultaneously. The temperature range is -73C to 190C, and the relative humidity range is 10% to 98%. Climate chambers are also used when product testing requires constant climatic conditions (temperature and/or humidity).
The purpose of a temperature test is to verify the resistance of a specimen to the environmental influence of temperature. The tests are aimed at the suitability for use and storage at low and high temperatures. In research and development laboratories, the functionality and usability of a product are determined at a very early stage.
5.2 Features
(1) Accurate temperature heating and cooling control
Features temperature heating 3℃/min and cooling performance at 1℃/min with no load for our standard model, and can handle temperature cycle tests at 3℃/min cooling down and heating up rate respectively with load for customized model.
(2) Highly temperature uniformity distribution
KOMEG offers Highest 0.5 ℃ temperature uniformity distribution,this allows minimizes variations in test results over multiple specimens.
(3) Wide Selection control range for temperature and humidity
Features a wider cont rol range of temperature and humidity, including stable control at 95℃/98%RH.
(4) Network solution available
Standard communication support is available with RS-485 or RS-232C interface.
An Ethernet (LAN) port is also available as an option, for simple connection of a computer, tablet computer, or other terminal. Monitoring of chamber’s running conditions, modification of test conditions, starting or stopping operation, and other interaction with the chamber can be performed via a Web browser.
(5) Less temperature and humidity stabilization time
Temperature and humidity stabilization time have been greatly saved by minimizing hunting as the chamber approaches set-point. (under testing operation from RT to 85℃/85% rh).
(6) Color LCD touch-screen Man-Machine interactive system
Operation and settings simplified by the set of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, upstream / downstream control, and trend graphs display.
(7) Specimen temperature control function provides accurate testing
Uses a temperature control sensor (×1) to monitor and control the temperature of the specimen.
(8) Alarm buzzers and displays
When an alarm triggers, alarm information, date and time of occurrence are displayed on screen. A second screen displays the cause and cor rective actions.
5.3 Specification
(1) KMH-R series
Model |
KMH-R series |
|||||
150R |
225R |
408R |
800R |
1000R |
||
Temp. range |
-20°C ~150°C |
|||||
Interior size |
W(mm) |
600 |
700 |
700 |
1000 |
1000 |
H(mm) |
600 |
700 |
750 |
1000 |
1000 |
|
D(mm) |
460 |
480 |
800 |
800 |
1000 |
|
Exterior size |
W(mm) |
880 |
980 |
980 |
1280 |
1280 |
H(mm) |
1730 |
1890 |
1940 |
2160 |
2160 |
|
D(mm) |
1400 |
1460 |
1740 |
1750 |
1950 |
|
Power(KW) |
5.8 |
6 |
7.5 |
12.8 |
12.8 |
|
Weight(KG) |
240 |
280 |
400 |
500 |
580 |
|
Humidity uniformity |
±3.0%R.H |
±5.0%R.H |
||||
Heat up time |
-20°C ~+100°C ,within 35 min |
|||||
Pull down time |
+20°C ~-20°C , within 45 min |
|||||
Humidity Range |
20~98%R.H |
|||||
Temp. constancy |
±0.5ºC |
|||||
Humidity constancy |
±2.5%R.H |
|||||
Temp. uniformity |
±2.0ºC |
|||||
Safety device (standard) |
NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
|||||
Interior material |
Stainless Steel Plate(SUS 304) |
|||||
Exterior material |
Baked Painting Steel Or Stainless steel(SUS304) |
|||||
Insulation material |
Rigid polyurethane Foam and Glass Fiber Wool |
|||||
Ambient Temp. |
+5°C ~+35°C |
|||||
Wiring method |
AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
|||||
Controller |
LCD Touch Screen, Chinese or English display selectable |
|||||
Operation model :Program or fix point running |
||||||
Memory capacity :120programs,1200steps, |
||||||
All repeat 999 cycles, part repeat 99 cycles |
(2)KMH-L series
Model |
KMH-L series |
|||||
150 L |
225 L |
408 L |
800 L |
1000 L |
||
Temp. range |
-40°C ~150°C |
|||||
Interior size |
W(mm) |
600 |
700 |
700 |
1000 |
1000 |
H(mm) |
600 |
700 |
750 |
1000 |
1000 |
|
D(mm) |
460 |
480 |
800 |
800 |
1000 |
|
Exterior size |
W(mm) |
880 |
980 |
980 |
1280 |
1280 |
H(mm) |
1730 |
1890 |
1940 |
2160 |
2160 |
|
D(mm) |
1400 |
1460 |
1740 |
1750 |
1950 |
|
Power(KW) |
5.8 |
6 |
7.5 |
12.8 |
12.8 |
|
Weight(KG) |
250 |
300 |
420 |
530 |
600 |
|
Humidity uniformity |
±3.0%R.H |
±5.0%R.H |
||||
Heat up time |
-40°C ~+100°C ,within 45 min |
|||||
Pull down time |
+20°C ~-40°C , within 60 min |
|||||
Humidity Range |
20~98%R.H |
|||||
Temp. constancy |
±0.5ºC |
|||||
Humidity constancy |
±2.5%R.H |
|||||
Temp. uniformity |
±2.0ºC |
|||||
Safety device (standard) |
NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
|||||
Interior material |
Stainless Steel Plate(SUS 304) |
|||||
Exterior material |
Baked Painting Steel Or Stainless steel(SUS304) |
|||||
Insulation material |
Rigid polyurethane Foam and Glass Fiber Wool |
|||||
Ambient Temp. |
+5°C ~+35°C |
|||||
Wiring method |
AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
|||||
Controller |
LCD Touch Screen, Chinese or English display selectable |
|||||
Operation model :Program or fix point running |
||||||
Memory capacity :120programs,1200steps, |
||||||
All repeat 999 cycles, part repeat 99 cycles |
(3)KMH-S series
Model |
KMH-S series |
|||||
150S |
225S |
408S |
800S |
1000S |
||
Temp. range |
-70°C ~150°C |
|||||
Interior sizel |
W(mm) |
600 |
700 |
700 |
1000 |
1000 |
H(mm) |
600 |
700 |
750 |
1000 |
1000 |
|
D(mm) |
460 |
480 |
800 |
800 |
1000 |
|
Exterior size |
W(mm) |
880 |
980 |
980 |
1280 |
1280 |
H(mm) |
1730 |
1890 |
1940 |
2160 |
2160 |
|
D(mm) |
1400 |
1460 |
1740 |
1750 |
1950 |
|
Power(KW) |
5.8 |
6 |
7.5 |
12.8 |
12.8 |
|
Weight(KG) |
280 |
330 |
450 |
550 |
650 |
|
Humidity uniformity |
±3.0%R.H |
±5.0%R.H |
||||
Heat up time |
-70°C ~+100°C ,within 60 min |
|||||
Pull down time |
+20°C ~-70°C , within 80 min |
|||||
Humidity Range |
20~98%R.H |
|||||
Temp. constancy |
±0.5ºC |
|||||
Humidity constancy |
±2.5%R.H |
|||||
Temp. uniformity |
±2.0ºC |
|||||
Safety device (standard) |
NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
|||||
Interior material |
Stainless Steel Plate(SUS 304) |
|||||
Exterior material |
Baked Painting Steel Or Stainless steel(SUS304) |
|||||
Insulation material |
Rigid polyurethane Foam and Glass Fiber Wool |
|||||
Ambient Temp. |
+5°C ~+35°C |
|||||
Wiring method |
AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
|||||
Controller |
LCD Touch Screen, Chinese or English display selectable |
|||||
Operation model :Program or fix point running |
||||||
Memory capacity :120programs,1200steps, |
||||||
All repeat 999 cycles, part repeat 99 cycles |

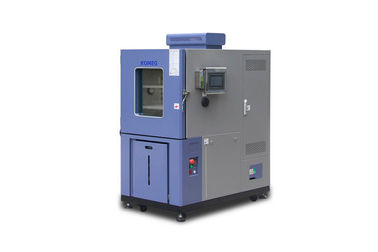

5.3 Product Picture:
