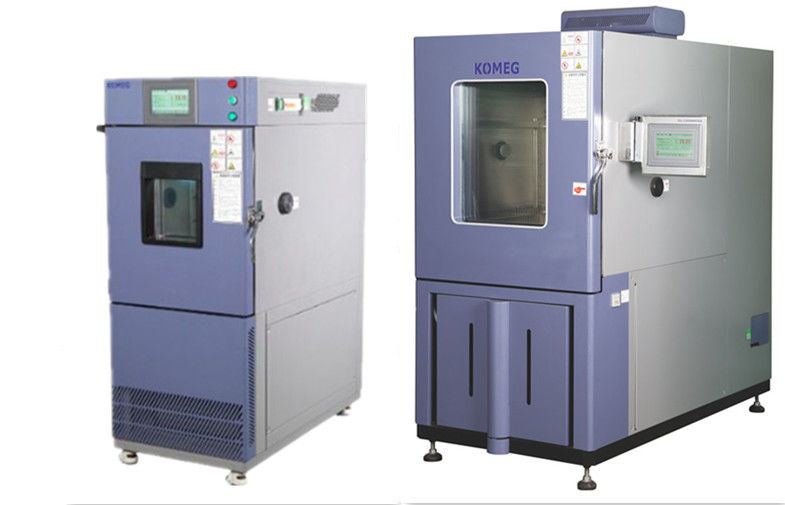

Programmable Low Temperature Humidity Chamber W700*H700*D480mm

Programmable Low Temperature Humidity Chamber W700*H700*D480mm
Programmable Low Temperature Humidity Chamber W700*H700*D480mm Programmable Low Temperature Humidity Chamber W700*H700*D480mm Programmable Low Temperature Humidity Chamber W700*H700*D480mm Programmable Low Temperature Humidity Chamber W700*H700*D480mm

Large Image :  Programmable Low Temperature Humidity Chamber W700*H700*D480mm

Product Details:
Place of Origin: CHINA
Brand Name: KOMEG
Certification: CE, ISO,
Model Number: KMH-225S
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 10000-18000USD / SET
Packaging Details: PP film and Strong Plywood Case
Delivery Time: 20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Application: Laboratory, Testing Center, Internal Volume: 225L
Material: #304 Stainless Steel Controller: 7inch LED Touchscreen
Warranty: 12 Months Free Parts Warranty Lead Time: 20 Working Days Upon The Deposit
Trade Terms: EXW, FOB, CIF, DDU, DDP H.S. Code: 9032100000
High Light:

temperature and humidity chamber


temperature test chamber


Imported Material -70 Deg C Low  Temperature  Humidity Test Chamber



1. Application:


 Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..




2. Products CE Certificate and Features:


1) CE approved with 1 year warranty

2) 33% energy saving than 2rd generation of KOMEG products.

3) Working hours up to 4,320 hours testing without downtime.

4) The ideal simulation test chamber for all heat and cold testing between -70 ºC and 150 ºC

5) Well-suited for reliability testing based on current test standards in the temperature range of -70 °C to 150 °C and 20% to 98% RH.

6) Meet all requirements for extreme testing and low temperature alternating


3. Main Technical Specifications Quick Know:


Inner size: W700*H700*D480mm
Exterior dimension: W980*H1890*D1460mm
Net Weight: 330KG
Temperature range: -70 to 150
° C
Humidity range: 20% to 98%R.H.
Temperature uniformity:  ±0.5
° C
Equipment Power: 8.5KW
Power: AC380 ±10% 50HZ 3 phase 4 lines+ ground line

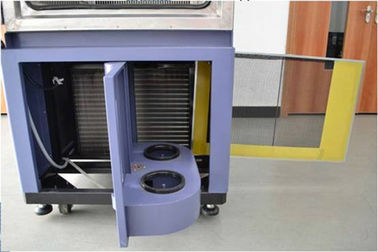

4. Imported Material and Refrigeration system:

Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh, Bock or Danfoss Compressor with Environemntal Friendly Refrigerant


5. Technical Specification:



Model KMH-225L
225L chamber volume
Temp. range  -70°C ~150°C
Display resolution 0.1°C
Temperature stability High±0.5°C ,low ±1.0°C
Temperature uniformity  ±2.0°C
Heat up time  -70°C ~+100°C,within 60 min
Pull down time  +20°C ~-70°C,within 80 min
Humidity range 20~98%R.H,(standard),   '10~98%R.H,(with humidifier)
Humidity constancy ±2.5%R.H
Humidity uniformity ±3.0%R.H
Interior Dimension(mm) 700W*700H*480D
Exterior Dimension(mm) 980W*1890H*1460D
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Total power   6.5KW(heater 3KW included)
Max current 13.6A
Water Consumption 0.7L/hr
Ambient Temp. +5°C ~+35°C
Power Supply   AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires
Weight  300KG
Sight window size 430*530mm
Sample holder  2 pcs
Fittings cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device  (standard)

No fuse breaker,over pressure,over heat&over current protect,over temp.

protect, over load protect for blower, dry heat protect

Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor

Single stage refrigeration system,

CFC-Free refrigerant(HFC-507/HFC-23)

CFC-Free refrigerant(HFC-507/HFC-23)
Controller 7-inch LCD Touch Screen panel
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles

Note: 1. We reserve the right to change specifications without prior notice

2. Customized sizes and configurations available




6. Controller:

Digital Touch Screen
127 program, running  for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.


Programmable Low Temperature Humidity Chamber W700*H700*D480mm 0




7. Packing Info
We have standard inner box PP film and carton plywood for the packing. Especially for the samples,
we will pack them in much safe to guarantee that you can receive a please.
 Programmable Low Temperature Humidity Chamber W700*H700*D480mm 1
8. Installation Environment

Distance from the wall to both sides and rear of chamber more than 800mm, to the front more than 1500mm. Provide independent power distribution switchgear and humidification condensate drains, and external power connector device is necessary
Ground level, well-ventilated, non- flammable, explosive, corrosive gases and dust
No strong electromagnetic radiation nearby
With floor drain ( less than 2 meters from the refrigeration unit )
Venue floor load capacity: not less than 800kg per m2
Leave adequate space for maintenance
