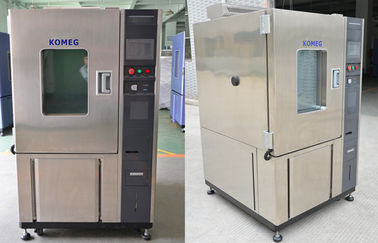

Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment

Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment
Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment

Large Image :  Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE, , ISO
Model Number: KMT-408R
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 10000-18000USD PER SET
Packaging Details: Packed with film firstly, and then reinforced with wooden case for outer packing
Delivery Time: 20 days upon your deposit
Payment Terms: T/T, negotiable, L/C
Supply Ability: 1, 000 SETS / YEAR
Detailed Product Description
Workspace Volume (W X H X D): W700 X H750 X D800mm Exterior Size (W X H X D): W980 X H1940 X D1740mm
Total Power: 5KW Heater: 2.5KW
Temperature Range: -20 °C To 150 °C Material: SUS304 Stainless Steel
Controller: LED Touchscreen 10 Inch
High Light:

temperature testing equipment

,

high temperature test chamber

Refrigerant HFC-23 30% Energy-saving Eco-friendly High-low Temperature Test Chamber





1. High-low temperature test chambers



High-low temperature test chamber is special-purpose thermostatic and humidistatic equipment. It is able to accurately simulate the climate conditions in different environments and is applicable to research institutes, university laboratories and production sectors in sanitary & anti-epidemic, environmental protection, forestry and animal husbandry industries for culture preservation, plant cultivation and breeding experiments of molds, bacteria, and microbes.



Our high quality and versatile KOMEG Temperature-only Test Chambers are ideal for larger test pieces.

Equipped with a user-friendly, comprehensive programming interface with data retrieval via USB, the chambers are available in a wide range of capacities from 64 to 1000 litre.

Additional user options are available including additional shelving, roof ports and a water-cooled refrigeration unit.





2. Explore Temperature Chambers by Type:



High and low extremes of temperature can significantly alter the mechanical and electrical properties of a product, such as the brittleness of components, viscosity of lubricants, electrical conductivity and oscillator frequencies. TRaC's temperature testing can simulate temperature extremes  cycling from -70°C to +180°C (and up to +500°C constant), and KOMEG's 15 temperature chambers cater for small components in our series of 0.4 m3 cabinets through to complete systems, in our range of walk-in chambers.





3. High temperature limits of test chambers




There are many types of test chambers, but they all high and low temperature limits. Let's take a look at the typical high temperatures thresholds and why they exist.



Test chambers usually have wire heaters made of a material called Nichrome. By placing successive loops of heater wire, a greater amount of heat that is generated. The result looks a lot like the inside of a toaster. Fans circulate the air past the heaters, so the samples in the chamber are not exposed to radiant heat. It is very easy to add heaters and increase the speed and / or high limit of a chamber.

KOMEG chambers typically have a high temperature limits under 200°C. Here is a break-down of why a chamber's high temperature limit exists:



150°C: There are two reasons we may limit a chamber to 150°C. First, there may be a limitation of the materials used inside the chamber. Secondly, for extremely fast chambers, we may limit the high temperature to avoid problems with accidentally tripping overheat protection devices.



170-180°C: Most models stop at this temperature range. There is a risk of burning the oil inside the refrigeration's cooling coil.





4. Temperature and Humidity Test Capabilities



KOMEG have a variety of temperature and humidity chambers from small to walk-in chambers that can reproduce a wide range of climatic conditions incluiding  high and low temperature as well as combined temperature and humidity conditions. KOMEG also support a climatic test facility dedicated to tests against requirements for telecoms and radio products.





5. Parameter Specifications:



Model KMH-408R
408L chamber volume
Temp. range  -20°C ~150°C
Display resolution 0.1°C
Temperature stability High±0.5°C ,low ±1.0°C
Temperature uniformity  ±2.0°C
Heat up time  -20°C ~+100°C,within 35 min
Pull down time  +20°C ~-20°C,within 45 min
Interior Dimension(mm) W700 x H750 x D800mm
Exterior Dimension(mm) W980 x H1940 x D1740mm
Interior material Stainless Steel Plate ( SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Total power   7KW ( heater 3KW included)
Max current 6A
Ambient Temp. +5°C ~+35°C
Power Supply   AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires
Weight  400KG
Sight window size 460 X 560mm
Sample holder  2 pcs
Fittings cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device  (standard)

No fuse breaker,over pressure,over heat&over current protect,over temp.

protect, over load protect for blower, dry heat protect

Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor

Single stage refrigeration system,

CFC-Free refrigerant(HFC-507/HFC-23)

Controller 7-inch LCD Touch Screen panel
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles

Note: 1. We reserve the right to change specifications without prior notice                                                         2. Customized sizes and configurations available













6. Details parts of the Temperature Chamber



10 inch LED touchscreen controller

Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment 0



The detailed parts:

Custom High And Low Temperature Test Chamber / Thermostatic And Humidistatic Equipment 1
