Product Details:
Payment & Shipping Terms:
|
| TESTspace Volume (W X H X D): | IW1000 X IH1000 X ID1000mm | Exterior Size (W X H X D): | EW1280 X EH2160x ED1950mm |
|---|---|---|---|
| Total Power: | 20KW | Heater Power: | 6KW |
| Temperature Range: | -70 °C To 150 °C | Wall Material: | SUS304 Stainless Steel |
| Controller Info: | LED Touchscreen 10 Inch | ||
| High Light: | temperature testing equipment,high temperature test chamber |
||

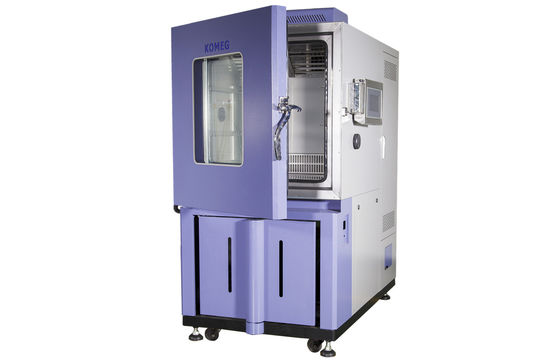

Programmable Climatic High And Low Temperature Test Chamber CE Certified
Application for Programmable Climatic Chamber
The programmable temperature humidity test chamber is applied to test the capabilities of heat-resistance, cold-resistance of materials.It's mainly used in testing the adaptability of electronics,electrical appliances,food,automobile,rubber and plastic,metal and other materials or finished products,components in the high and low temperature environment when storage, transport and using.You can select from a variety of sizes,ranges,and options to meet your specific testing requirements.
Features for Programmable Climatic Chamber
> Stainless steel 304# 1.2mm exterior
> Energy-efficient refrigeration with exclusive electronic expansion valve system
> Specialized humidity generation and control
> Unique thermal break construction for extreme testing
> 3" cable port,two shelf & casters included
> 7" Imported brand " KOMEG" touch screen
>. USB port and WLAN port can be added for machine(can be customized).
Technical Parameter:
|
Model |
KMH-1000S |
||||
|
1000L chamber volume |
|||||
|
Temp. range |
-70°C ～150°C |
||||
|
Display resolution |
0.1°C |
||||
|
Temperature stability |
High±0.5°C ,low ±1.0°C |
||||
|
Temperature uniformity |
±2.0°C |
||||
|
Heat up time |
-70°C ～+100°C,within 60 min |
||||
|
Pull down time |
+20°C ～-70°C,within 80 min |
||||
|
Interior Dimension(mm) |
W1000 x H1000 x D1000mm |
||||
|
Exterior Dimension(mm) |
W1280 x H2160x D1950mm |
||||
|
Interior material |
Stainless Steel Plate ( SUS 304) |
||||
|
Exterior material |
Baked Painting Steel Or Stainless steel ( SUS304) |
||||
|
Insulation material |
Rigid polyurethane Foam and Glass Fiber Wool |
||||
|
Total power |
18KW ( heater 6KW included) |
||||
|
Max current |
40.3A |
||||
|
Ambient Temp. |
+5°C ～+35°C |
||||
|
Power Supply |
|
AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires |
|||
|
Weight |
550KG |
||||
|
Sight window size |
460 X 560mm |
||||
|
Sample holder |
2 pcs |
||||
|
Fittings |
cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m |
||||
|
Safety device (standard) |
No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect |
||||
|
Control System |
Balanced Temperature & Humidity Control (BTHC)System |
||||
|
Refrigeration system |
Air Cooled (Water Cooled is option) |
||||
|
Hermetic compressor |
|||||
|
Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) |
|||||
|
Controller |
7-inch LCD Touch Screen panel |
||||
|
Operation model :Program or fix point running |
|||||
|
Memory capacity :120programs,1200steps, |
|||||
|
All repeat 999 cycles, part repeat 99 cycles |
|||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
