Product Details:
Payment & Shipping Terms:
|
| Volume: | 27.1CBM | Temperature Range: | -60 °C To 150 °C |
|---|---|---|---|
| Material: | SUS304 Stainless Steel | Controller: | LED Touchscreen 7 Inch |
| Highlight: | climatic test chambers,Climatic Testing Chamber,LCD Display Temperature Humidity Chamber |
||

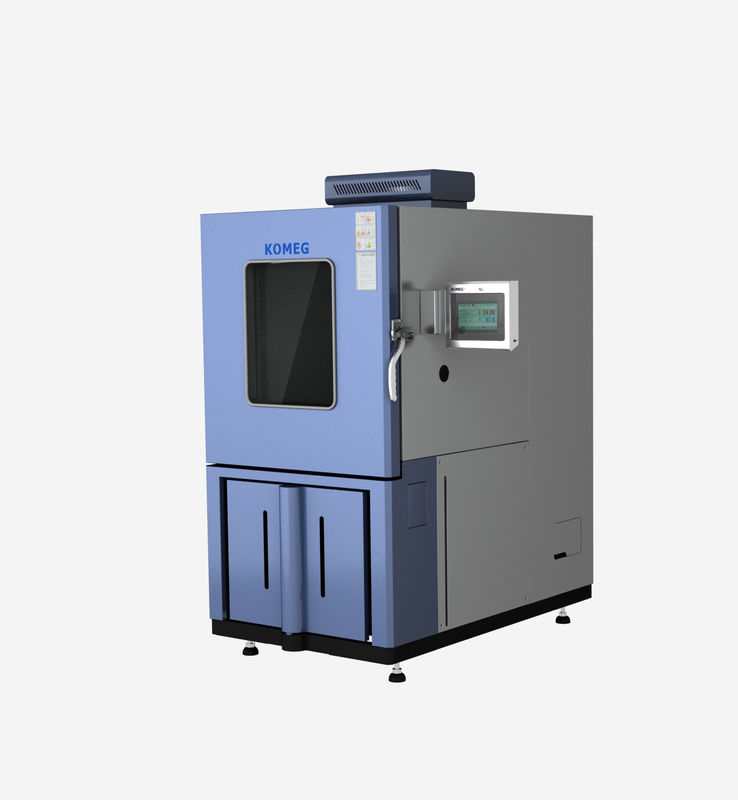

LCD Display Temperature Humidity Chamber environmental test equipment For Automobile
1. Application for Temperature and humidity climate test chamber/equipment
Applicable to environmental adaptability and reliability testing in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.
2. Features:
Temperature and humidity test chamber:
1. Specializing in environmental test chamber for 23 years
2. Valued customers: HUAWEI, TCL, EMERSON, Epson, OMRON, GREE, , FOXCONN, etc.
3. Imported Tecumseh or Danfoss compressor
4. LED Touch Screen Controller
5. One year free parts warranty
3. Specification
| Technical parameters: | |||||
| Environmental Temperature and Humidity Chamber | |||||
| Secifications ( at +20°C room temp. Or+25°C water temp with empty load) | |||||
| Model | KMH-S series | ||||
| 225S | 408S | 800S | 1000S | ||
| Interior sizel | W(mm) | 700 | 700 | 1000 | 1000 |
| H(mm) | 700 | 750 | 1000 | 1000 | |
| D(mm) | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 980 | 980 | 1280 | 1280 |
| H(mm) | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1460 | 1740 | 1750 | 1950 | |
| Weight(KG) | 330 | 450 | 550 | 650 | |
| Temp. range | -70 °C ~+150°C | ||||
| Humidity Range | 20 ~ 98&R.H. | ||||
| Temp. constancy | ±0.5ºC | ||||
| Humidity constancy | ±2.5%R.H | ||||
| Humidity uniformity | ±3.0%R.H | ±5.0 % R.H | |||
| Heat up time | -70°C ~ +100°C , within 60 min | ||||
| Pull down time | +20°C ~ -70°C , within 80 min | ||||
| Equipment Power | 9.5KW | 10.6KW | 18.5KW | 18.5KW | |
| Ambient Temp. | 5ºC ~+35ºC | ||||
| Standard accessories | Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker, over pressure over heat and over current protection for compressor, | ||||
| Over temp. protect, over load protect of blower, dry heat protection | |||||
| Control System | Balanced Temperature & Humidity Control System | ||||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | ||||
| Hermetic compressor,Cascsde Refrigeration | |||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Interior material | Stainless Steel Plate ( SUS 304 ) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| System | Balanced & Humidity Control System | ||||
| Wiring method | AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
