Product Details:
Payment & Shipping Terms:
|
| Application: | Laboratory, Testing Center, STC, | Internal Volume: | 64L |
|---|---|---|---|
| Material: | #304 Stainless Steel | Controller: | 7inch LED Touchscreen Controller |
| Warranty: | 12 Months Free Parts Warranty | Delivery Time: | 20 Working Days Upon The Deposit |
| Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
| Temp. Range: | -20°C ～150°C | Humidity Range: | 20~98%R.H |
| Temp. Constancy: | ±0.5ºC | Temp. Uniformity: | ±2.0ºC |
| Interior Dimension(mm): | 400W X 400H X 400D | Power Supply: | AC 380V±10％ 50Hz ,3 Phase 4 Wires +Ground Wires |
| Refrigeration System: | Air Cooled | ||
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

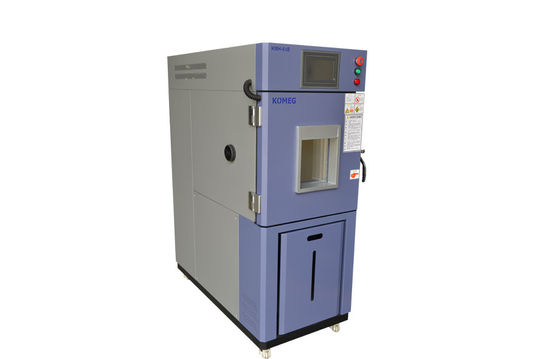

CE Certified Quality Stainless steel temperature humidity chamber used in automotive testing
1. Application:
An environmental test chamber artificially replicates the conditions under which machinery, materials, devices or components might be exposed. It is also used to accelerate the effects of exposure to the environment, sometimes at conditions not actually expected.
2. Products CE Certificate and Features:
1) CE approved with 1 year warranty
2) 33% energy saving than 2rd generation of KOMEG products.
3) Working hours up to 4,320 hours testing without downtime.
4) The ideal simulation test chamber for all heat and cold testing between -70 ºC and 150 ºC
5) Well-suited for reliability testing based on current test standards in the temperature range of -70 °C to 150 °C and 20% to 98% RH.
6) Meet all requirements for extreme testing and low temperature alternating
1) The ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range
2)Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% RH.
3) Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 180 °C with humidity
4. Main Technical Specifications Quick Know:
| Environmental Temperature and Humidity Chamber | ||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||
| Model | KMH-R series | |
| 64R | ||
| Temp. range | -20ºC~150ºC | |
| Interior sizel | W(mm) | 400 |
| H(mm) | 400 | |
| D(mm) | 400 | |
| Exterior size | W(mm) | 600 |
| H(mm) | 1526 | |
| D(mm) | 1200 | |
| Power(KW) | 4.5 | |
| Weight(KG) | 150 | |
| Humidity uniformity | ±3.0%R.H | |
| Heat up time | -20ºC~+100ºC,within 35 min | |
| Pull down time | +20ºC~-20ºC, within 45 min | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |
| Over temp. protect, over load protect of blower, dry heat protection | ||
| Control System | Balanced Temperature & Humidity Control System | |
| Refrigeration system | Air Cooled (Water Cooled Type is option) | |
| Hermetic compressor,Single stage refrigeration system | ||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |
| Operation model :Program or fix point running | ||
| Memory capacity :120programs,1200steps, | ||
| All repeat 999 cycles, part repeat 99 cycles | ||
| Humidity Range | 20~98%R.H | |
| Temp. constancy | ±0.5ºC | |
| Humidity constancy | ±2.5%R.H | |
| Temp. uniformity | ±2.0ºC | |
| Interior material | Stainless Steel Plate(SUS 304) | |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |
| Ambient Temp. | +5ºC~+35ºC | |
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||
5. LCD controller:
6. After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
