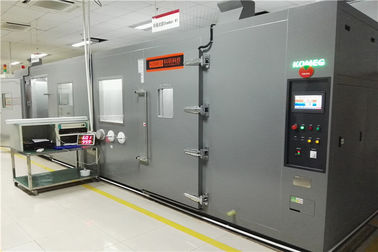

Stability performance aging test chamber for conducting testing of large specimens

China Stability performance aging test chamber for conducting testing of large specimens supplier
Stability performance aging test chamber for conducting testing of large specimens supplier Stability performance aging test chamber for conducting testing of large specimens supplier

Large Image :  Stability performance aging test chamber for conducting testing of large specimens

Product Details:

Place of Origin: guangdong
Brand Name: KOMEG
Certification: CE
Model Number: Burn-in room

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece burn-in aging room
Price: USD2000-USD20000/ piece
Packaging Details: Strong Plywood Case, Meet International Standard
Delivery Time: 25 to 35 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces a year
Contact Now
Detailed Product Description
Products Name: Burn-in Aging Room Temp. Range: Room Temp. +20~+100℃
Power: AC 380±10%50Hz ,3 Phase 4 Wires +Ground Wires Interior Material: Stainless Steel Plate(SUS 304)
Temp. Constancy: ±0.5℃ Temp. Uniformity: ±3℃



Stability performance aging test chamber for conducting testing of large specimens



Application

Suitable for all kinds of electronic products,expecially for products with heating characteristics

Product and loading area should be separated

Large-scale production



Specifications:

Specifications
Interior dimensions(W*H*D) mm 1500*1280*550
Exterior dimensions(W*H*D) mm 1720*1980*750
Temp. range Room Temp. +20~+100℃
Temp. constancy ±0.5℃
Temp. uniformity ±3℃
Test. capacity 88PCS/CYCLE(Custom made available)
Dimension 100W*100HJ*50D(MM)
Test range FAN(full machines number)
Voltage range 3~50V
Current range ±5%
Speed 0-15000RPM,±8%
The detection speed 7-12sec/cycle
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available



Features



1. Standard combined design.

2. SUS#304 stainless steel,firm structure, waterproof design.

3. Suitable for test with large quantity and volume products.

4. Adopt imported large LCD Chinese/English microcomputer temperature controller, easy setting, strong function.

5. Standard RS-232C communication interface device.

6. Unique circulation duct design.

7. Comprehensive security control design, adopt intelligent PID+SST/SCR inverse two-way synchronous output,including the slope of the advanced control logic.

8. Heating box and explosion-proof heater design, advanced PID servo control, security, stability and reliability.



You are warmly welcomed to KOMEG.
We hope to be your reliable business partner in China.
For our new design can achieve high temp. Unifornity (± 0.5 C ).
Tecumseh or Danfoss compressor for your alternative choice.
Germany imported wall material make sure the reliability and good performace.



Stability performance aging test chamber for conducting testing of large specimens





Packaging:

Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.



After-Sales Service

* If you face any problems in future during testing process, we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video, English operation muanual and video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



Why Choose KOMEG?



Over 26 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.


Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why , Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.

Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long



Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)




Stability performance aging test chamber for conducting testing of large specimens

Stability performance aging test chamber for conducting testing of large specimens
