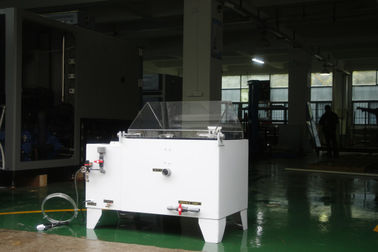

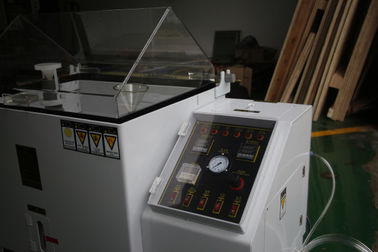

Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing

Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing
Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing
video play

Large Image :  Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: ISO,
Model Number: HL-90-BS
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: 1100 ~1800 USD / SET
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, negotiable
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Material: PVC Temperature Range (Testing Space): 35±1℃~50±1℃
Volume: 270L Air Compressor: 1/2 HP
Power: AC220V 50Hz Test Applicable: NSS, ACSS,CASS,CORK
Product Name: Salt Water Spray Test Chamber Package: Plywood
High Light:

salt spray test equipment

,

salt spray testing machine



Touch screen laboratory salt test chamber For Corrosion Resistant Testing





1. Salt Water Spray Test Chamber's Features:



Salt spray corrosion test chamber (Salt spray test chamber, salt box, salt spray test machine, salt spray corrosion test chamber) can be used to assessing the ability of salt spray corrosion resistant materials. It can be used to assessmaterials’ protection layer resistance capacity to salt spray corrosion, whether you are testing hardware industry, screw industry, electroplate industry, automotive and motorcycle parts, communication industry, computer industry, electronic industry, coating industry, research institution, etc. Our salt spray test chamber can offer you a best solution.Due to the increasingly harsh environment, Salt Spray Tester becomes more and more popular. Salt Spray Tester has been the most hot-selling products these days, for the fast delivery time and reasonable price of Salt Spray Tester.





2. Specifications:



Specifications (Note: We reserve the right to change specifications without prior notice)
Model HL-160-NS HL-120-BS HL-90-BS HL-60-SS
Interior dimensions(W*H*D)mm 1600 X 500 X 1000 1200 X 500 X 800 900 X 500 X 600 600 X 400 X 450
Exterior dimensions(W*H*D)mm 2240 X 1500 X 1600 1410 X 1280 X 880 1460 X 1280 X 910 1130 X 1070 X 630
Testspace Volume(L) 800 480 270 108
Salt Water Tank Volume (L) 60 40 25 15
Heater 15KW+1KW 11KW+1KW 7KW+0.75KW 3KW+0.75KW
Air compressor 2HP 2HP 1/2HP 1/2HP
Temp. range (Testing barrel) 35±1℃~50±1℃
Temp. range (Pressure barrel) 47±1℃~63±1℃
Test applicable  NSS, ACSS,CASS,CORK
Pressed Air Pressure 1.00±0.01kgf/cm²
Spray Amount 1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average)
Ambient Relative Humidity More than 85%R.H.
PH Value 6.5~7.2   3.0~3.2
Spraying Manner Programmable Spraying
Power AC220V 1Φ 50Hz









3. Standards implemented and met:


1) GB/T 2423.17-1993 salt spray test
2) GB/T 2423.18-2000 salt spray test
3) GB/T 10125-1997 salt spray test
4) ASTM.B117-97 salt spray test
5) JIS H8502  salt spray test
6) IEC68-2-11 salt spray test
7) IEC68-2-52 1996 salt spray test
8) GB.10587-89 salt spray test
9) CNS.4158 salt spray test
10) CNS.4159 CASS Copper accelerated acid salt spray test
11) GB/T 12967.3-91 CASS Copper accelerated acid salt spray test






4. Features

1, Interior and exterior use hard PVC, anti-corrosion, anti-aging with smooth and beautiful surface

2, Cover use hard transparent PMM or hard PVC, can view specimen status anytime

3, Fine glass nozzle ensures uniform diffusion of spray and not being blocked by crystal, which further maintain standard and quality of continuous test.

4, Spray time is adjustable

5,High precision temperature controller with digital display introducing P.I.D. automatic tuning control.

6, Double over heating protection and low water level alarm ensures operation safety.

7, Demist function: water sealed chamber cover

8,Comply with international standard like ISO 9227, ASTM B117, CNS, JIS, DIN, GB, BS, IEC, MIL, etc.





5. . Salt Spray Testing working Principle

  • Salt Spraying Process

Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing 0





  • Humidifying Process

Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing 1





  • Drying Process



Touch Screen Laboratory Salt Spray Test Chamber For Corrosion Resistant Testing 2



KOMEG offers the newest and most modern salt fog testing chambers for your testing requirements. KOMEG salt spray test chambers are offered in 60 Liter, 270 Liter, 800 Liter and 960 Liter models and are cost effective solutions to acceleratedcorrosion testing of samples in salt fog. Models have an uncomplicated design that has optimized the openarea to maximize the number of test coupons while providing headroom for testing large and bulky objects.



Ergonomic design

The KOMEG Salt Spray Chambers are floor standing units with lockable wheels (big models) to allow easy andsecure repositioning. Height and reach distances provide easy access for loading and unloading couponsamples into removable slotted racks. An optional reinforced false floor is available to easily locate bulkyand heavy test items.



Accessibility

The Salt Spray chambers have an uncomplicated design that optimizes the open area tomaximize the number of test samples while providing ample room for testing large and bulky items.



Visibility

There are two kinds of material for the gabled canopy. One is the transparent material for the small model allowing full visibility inside the chamber. The other is the fully insulated covering with inspection window that will ensure the chamber achieves maximum operating temperature if thechamber is located in a cool laboratory environment.





Clean operation

The combined water drain and fog vent removes the test water and fog from thechamber to prevent salt fog escape into the test lab atmosphere when the canopy is opened.



Long chamber life

The chambers are made of hard PVC that stands up to the relentlessattack of the corrosive test environment.
