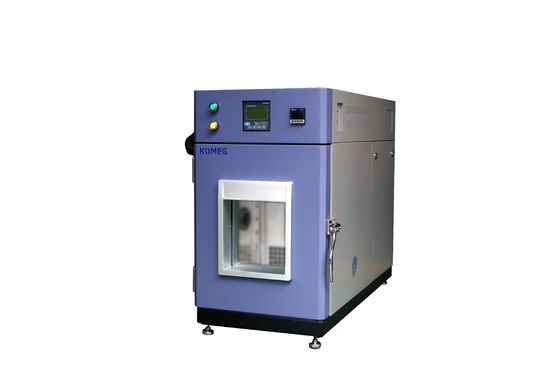

Benchtop Air Cooled Temperature Humidity Chamber For Lab Testing CE ISO

Benchtop Air Cooled Temperature Humidity Chamber For Lab Testing CE ISO
Benchtop Air Cooled Temperature Humidity Chamber For Lab Testing CE ISO Benchtop Air Cooled Temperature Humidity Chamber For Lab Testing CE ISO

Large Image :  Benchtop Air Cooled Temperature Humidity Chamber For Lab Testing CE ISO

Product Details:
Place of Origin: CHINA
Brand Name: KOMEG
Certification: CE, ISO,
Model Number: KMH-36L
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 5000-8000USD / SET
Packaging Details: PP film and Strong Plywood Case
Delivery Time: 25 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Application: Laboratory, Testing Center, STC, Internal Volume: 36L
Material: #304 Stainless Steel Controller: 7inch LED Touchscreen Controller
Warranty: 12 Months Free Parts Warranty Delivery Time: 25 Working Days Upon The Deposit
Trade Terms: EXW, FOB, CIF, DDU, DDP H.S. Code: 9032100000
High Light:

temperature and humidity chamber

,

humidity and temperature controlled chamber



 Benchtop Space-Saving Air Cooled Temperature and Humidity Chamber for lab testing





1. Application:



KOMEG Environmental Systems supplies Temperature / Humidity Chambers to program controlled conditions of combined temperature and relative humidity.



All chamber components offer maximum resistance to the corrosive effects of moisture combined with extreme conditions. Consult the AES design engineering services for special temperature and humidity conditions.



Benchtop type will save a lot of your lan space, and easy for transportation and moving.

Small volume, very convenient for testing and energy-saving.







2. Control method and characteristics:

the balance temperature humidity control system, to control SSPR P.I.D. way, make the system of heat equal to the amount of heat loss, thus the use of long-term stability.







3. Products CE Certificate and Features:



1) CE approved with 1 year warranty

2) 33% energy saving than 2rd generation of KOMEG products.

3) Working hours up to 4,320 hours testing without downtime.

4) The ideal simulation test chamber for all heat and cold testing between -40 ºC and 150 ºC

5) Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 20% to 98% RH.

6) Meet all requirements for extreme testing and low temperature alternating









4. Temperature Humidity Test Chamber Main Technical Specifications Quick Know:





Model KMH-36L
36L chamber volume
Temp. range  -40°C ~150°C
Display resolution 0.1°C
Temperature stability High±0.5°C ,low ±1.0°C
Temperature uniformity  ±2.0°C
Heat up time  -40°C ~+100°C,within 45 min
Pull down time  +20°C ~-40°C,within 60 min
Humidity range 20~98%R.H,(standard),   '10~98%R.H,(with humidifier)
Humidity constancy ±2.5%R.H
Humidity uniformity ±3.0%R.H
Interior Dimension(mm) 300W x 400H x 300D
Exterior Dimension(mm) 880W x 1726H x 1395D
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Total power   4KW(heater 2KW included)
Max current 8A
Water Consumption 0.65L/hr
Ambient Temp. +5°C ~+35°C
Power Supply   AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires
Weight  250KG
Sight window size with LED light
Sample holder  2 pcs
Fittings cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device  (standard) No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect
Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor

Hermetic compressor

Single stage refrigeration system,

CFC-Free refrigerant(HFC-507/HFC-23)

CFC-Free refrigerant(HFC-507/HFC-23)
Controller 7-inch LCD Touch Screen panel
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles
Note: 1. We reserve the right to change specifications without prior notice                                                    2. Customized sizes and configurations available









5. Controller:


Digital Touch Screen
127 program, running  for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.
