Product Details:
Payment & Shipping Terms:
|
| Application: | Laboratory, Testing Center, R&D Center | Internal Volume: | 36L |
|---|---|---|---|
| Material: | #304 Stainless Steel | Controller: | 7inch LED Touchscreen Controller |
| Warranty: | 12 Months Free Parts Warranty | Delivery Time: | 25 Working Days Upon The Deposit |
| Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
| Insulation Material: | PU Foam | Compressor: | Tecumseh |
| High Light: | temperature and humidity chamber,temperature test chamber |
||

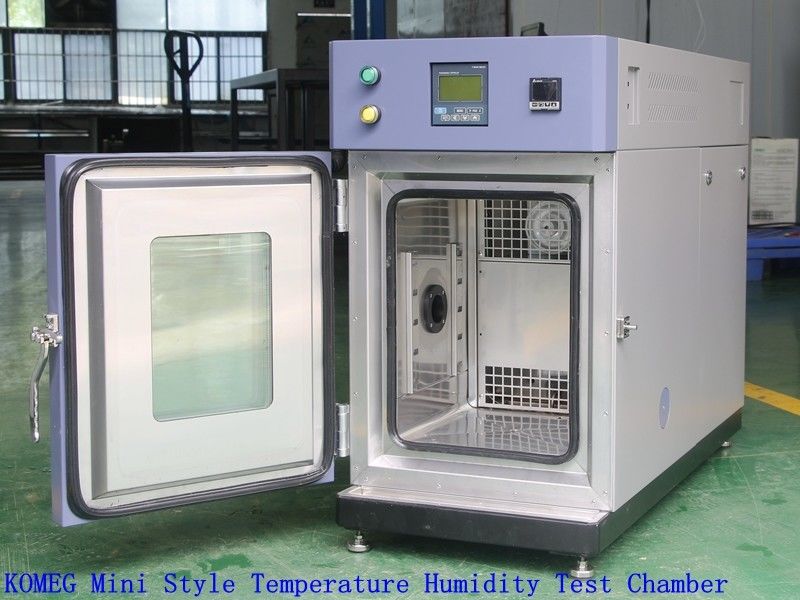

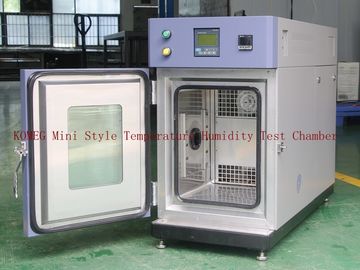

Remote monitoring Energy-Saving Benchtop Temperature and Humidity Test Chamber
1. High performance compact design efficient environment testing chamber
Optimization of the chamber top space
Space has been freed on the top of the chamber for storing cables, manuals and notes, or to keep an instrument device closely connected. (Patent pending)
Variation of accessories to optimize the installation
Wide variety of optional, caster-equipped stands to choose from. Dolly-type, high or low stands that can be combined or stacked to fit your chambers in narrow spaces. rack and water supply/ drain port can be set to meet specific requirements.
Multilingual controller display
User-friendly color display available in English, Chinese, etc, with constant and operation modes.
Copy your test programs, output data on USB memory
Without the need of a PC, copy and transfer your test profiles from one chamber to another. You can also download temperature and humidity data from the chamber for editing on your PC.
Remote monitoring and operation from a browser
Thanks to our internet application, remotely access your chamber to monitor and control it, from a PC, a tablet or even a smartphone.
You can edit program patterns, start or stop the chamber or to notify testing completion.
Stands
Available in 3 different heights, with a total of 9 variations. Mid and high stands come with a shelf. You can also select a floor-standing with built-in 18-liter water tank to supply water for extended duration of humidity testing.
Selection of the water supply method (Option - damp heat type only)
A water tank is equipped as standard and can be accessed from the chamber front. In addition, we have also prepared a roof-top water tank system or continuous water supply method, should longer and continuous testing be necessary.
Viewing window
Viewing windows allow you to observe the status of specimen during a test. The window comes with a transparent, metal film heater to prevent it from fogging or frosting. The window can be mounted on the door or the top of the chamber.
Various ways to "observe", "touch", and "operate"
Viewing windows allow you to see specimen during a test, but you can also add an inner glass door, with optional hand-in port, for a wider view inside the chamber and for the operation of specimen under test. (Viewing window on the door and inner glass door cannot be fitted together.)
2. Temperature Humidity Test Chamber Main Technical Specifications Quick Know:
| Model | KMH-36L | ||||
| 36L chamber volume | |||||
| Temp. range | -40°C ～150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ～+100°C,within 45 min | ||||
| Pull down time | +20°C ～-40°C,within 60 min | ||||
| Humidity range | 20～98％R.H,(standard), '10～98％R.H,(with humidifier) | ||||
| Humidity constancy | ±2.5％R.H | ||||
| Humidity uniformity | ±3.0％R.H | ||||
| Interior Dimension(mm) | 300W x 400H x 300D | ||||
| Exterior Dimension(mm) | 880W x 1726H x 1395D | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 4KW(heater 2KW included) | ||||
| Max current | 8A | ||||
| Water Consumption | 0.65L/hr | ||||
| Ambient Temp. | +5°C ～+35°C | ||||
| Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 250KG | ||||
| Sight window size | with LED light | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect | ||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
|
Hermetic compressor |
|||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
