Product Details:
Payment & Shipping Terms:
|
| Volume: | 27.1CBM | Temperature Range: | -40 °C To 150 °C |
|---|---|---|---|
| Material: | SUS304 Stainless Steel | Controller: | LED Touchscreen 7 Inch |
| Humidity Uniformity: | ±3.0% Or ±5.0% | Humidity Range: | 20~98% |
| Highlight: | climatic test chambers,Climatic Testing Chamber |
||

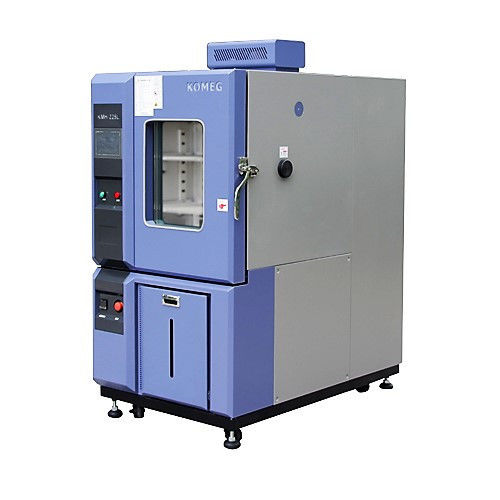

High Performance Temperature Humidity Test Chamber for airplanes or helicopters
1. A large range of standard and custom temperature and climate test chambers to suit many types of environmental testing need. Our temperature and humidity test chambers are available in a variety of sizes and configurations, ranging in size from 50Ltier to 3000Liter, including benchtop, standard type and walk in. Included are ultra low temperature test chamber, high rate of change of temperature chambers (15℃/min) and climate with humidity chambers.
2. Stability Temperature Humidity Test Chamber ClimaticTest Chamber Features:
3. Specifications:
KMH-L series
| Model | KMH-L series | |||||
| 150 L | 225 L | 408 L | 800 L | 1000 L | ||
| Temp. range | -40°C ~150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
| Heat up time | -40°C ~+100°C ,within 45 min | |||||
| Pull down time | +20°C ~-40°C , within 60 min | |||||
| Humidity Range | 20~98%R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5%R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ~+35°C | |||||
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles |
||||||
4. Temperature and Humidity Test Capabilities
KOMEG have a variety of temperature and humidity chambers from small to walk-in chambers that can reproduce a wide range of climatic conditions incluiding high and low temperature as well as combined temperature and humidity conditions. KOMEG also support a climatic test facility dedicated to tests against requirements for telecoms and radio products.
