Payment & Shipping Terms:
|Exterior Material:||Baked Painting Steel Or Stainless Steel (SUS304)||Temperature Range:||-40℃～+160℃|
|Humitity Range:||20%～98%||Compressor:||Danfoss Or Tecumseh Or Bock|
|Heat Up Time:||-40℃～+20℃,within 40 Min||Pull Down Time:||+20℃～-40℃, Within 50 Min|
|Temp. Constancy:||±0.5ºC||Humidity Constancy:||±2.5%R.H|
humidity and temperature controlled chamber,
temperature test chamber

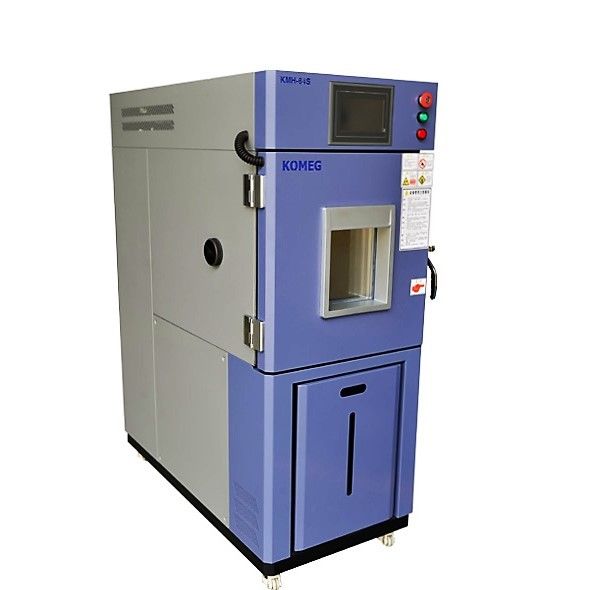

Discount price Xenon lamp Simulate Real Environment climatic test chamber For Environmental Effects testing
An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Such a chamber can be used:
as a stand-alone test for environmental effects on test specimens;
as preparation of test specimens for further physical tests or chemical tests;
as environmental conditions for conducting testing of specimens;
● Stainless steel exterior
● Energy-efficient refrigeration with exclusive electronic expansion valve system
● Specialized humidity generation and control
● Unique thermal break construction for extreme testing
● Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
● No fuse breaker, over pressure,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection
a. High-quality appearance, the body adopted an arc shape, surface automobile coating technology processing, and mechanical explosion-proof handle, easy to operate, safe and reliable.
b. Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window with anti-sweat heaters device prevents water gas condensate, knot, water droplets, LED lamps to keep the inside lighting.
c. Door frame with airtight packing, can be effectively isolated from the internal temperature of the leak
d. With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
e. Compressor cycling system used France “Tecumseh” brand which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)
f. Controller uses the imported LCD display screen, can display measured values (PV) and setting values (SV) time
g. Controller with multi-segment program editor and temperature and humidity can be fast (QUICK) or slope (SLOP) controlled.
h. Built-in mobile wheels allow easy movement and placed, with a strong positioning screw position.
● Cable Port: Φ100mm cable port is available
● Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
● Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
● Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
● Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
● Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber
Our housing are high-quality carbon steel with static color spray outside and galvanized steel sheet inside. Sheet metal processing machines are from Germany. Trumph is famous for its precise bending technology, so our products outlook looks quality, precise and neat.
We use tube bending machine for copper tube bending, this way can decrease the welding points. This is easy to keep the copper tube clean to ensure longer service life of the compressor. Also less welding points can reduce the resistance when the liquid flowing inside, to keep compressor working in higher efficiency, and better energy-saving.
Water and electricity system separating design:
For improving the comparable fragile part, heating part of constant high damp heat test, we apply water and electricity system separating design, to keep the water and electricity system separated with external humidifying system, and use top brand(e.g.: DANFOSS, Schneider, Danfoss, Emerson, Saginomiya, etc. ) for all electronic components to make sure the chambers’ quality and service time.
Inventory Test Chamber
Water and Electricity Separation Design
