Product Details:
Payment & Shipping Terms:
|
| Standard: | Standard And Customized | HS Code: | 90321000 |
|---|---|---|---|
| Temp. Range: | RT20º C-250º C | Volume: | 12 Cubic |
| Temperature Constant: | ±2℃ | Housing Material: | Stainless Steel SUS304 |
| Insulation: | Glass Wool | Certificate: | , CE |
| High Light: | laboratory drying oven,vacuum drying oven |
||

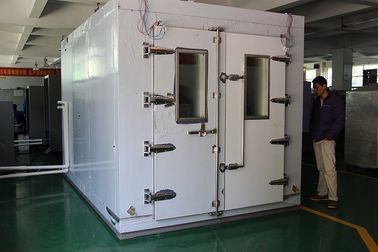

1. Over View
This series of reliability test for industrial products / production, with the features of high temperature control precision and wide control range, performance indicators in line with GB5170.2.3.5.6-95 "electric and electronic products environmental testing equipment Inspection methods for basic parameters of high-temperature test equipment" and meet the standard.
2. South Korea imported thermostat controller ST-570
* Achieve high accuracy (0.1%), high-performance
* High resolution (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Can complete simultaneously output multiple output (Max 4 points)
* Simple parameter setting, text available
* Support suppression system (Overshoot) temperature function
* Alarm output 1 point
* RUN/STOP performance
* Default operation start and termination functions
* Operation screen displays of the auxiliary output status
* Each interval input adjustment function (Max 4 Zone)
*Achieve control of heating, cooling function
* PID auto-adjustment function (AT Gain)
* Support for multiple communication protocols (Modbus, etc.)
* Achieve high-quality, high reliability (CE, CUL, ISO, etc.)
Temp. fluctuation: ≤ ±0.5ºC
Temperature deviation: RT ~ +200 ºC ≤ ±2.0 ºC
+200 ºC~ +300 ºC ≤ ±3.0 ºC
Temp. constancy: ±1.0 ºC
Heat up time: 50 ºC to 200 ºC within 50 min
Control temperature means: Forced hot air circulation, ventlation mode
Interior material: Stainless Steel Plate
Exterior material: Baked painting steel
Standard Version Features:
Nominal temperatures 250/300/350/400 °C;
Outer casing made of galvanized sheet steel, with coating blue, white color;
Corrosion-resistant inner casing made of galvanized sheet steel;
Low external wall temperature and minimal loss of energy due to high quality, generously dimensioned thermal insulation of rock wool;
Grid rails in working chamber, facilitating height adjustment of wire-mesh shelves and grates;
1.Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you
need,control the accuracy by PID parameter.
2.current controller is SSR,contactlessRelay,keep the voltaic high stability.
3.Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life. 4.Temperature range,RT~400°C,normal temperature RT~350°C.
5.Accuracy:contral accuracy±0.5°C,distribution temperature ±2.0°C(no-load)
Air supply system
Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate.Make the wind
path smoothly..
Heating speed:RT~100°C about 10minutes.
Accessories
superhigh temperature protection, non fuse-switch switch, porcelain fuse,motor overcurrent protection
Timer: 9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.
4. Industrial Drying Ovens Technical parameter
| Specifications | |||||||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 | KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm |
400* |
450* |
600* |
600* |
800* |
1000* |
900* |
1000* |
1600* |
| Exterior size (W*H*D)mm |
1010*650 |
1110*800 |
1260*900 |
870*1590 |
1160*1760 |
1360*1715 |
1300* |
1400* |
1600* |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 | 6.5 | 7.5 | 8.5 | 9.5 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||||||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||||||
| Temp. constancy | ±1.0 ºC | ||||||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||||||
| Interior material | Stainless steel plate | ||||||||
| Exterior material | Painted Stainless steel plate | ||||||||
| Insulation material | Glass wool | ||||||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||||||
| Accessories | Recorder, insolating layer | ||||||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. |
|||||||||
Points you may concerned:
Ovens for Specific Applications
With its wide range of special application ovens, we can meet all your research and industrial needs, from plastics and electronics to pharmaceutical and car manufacturing.
Temperature precision
For specific heat treatment processes and drying of protective heat sensitive materials, we have a precise answer.
Safety for high-risk heating
Where there‘s a risk of fire, explosion or the release of aggressive gases or vapors, we offer a safe oven solution.
Material-specific
There are high precise drying ovens specifically designed for materials testing, including cable testing ovens for rubber and plastics.
Space saving
A choice of built-in and bench top ovens optimize your laboratory space.
Customized Products
We will work in partnership with you to tailor-make your oven to meet your particular specifications.
Competent advice
Explain your application need to our specialist and we will suggest the right product.
After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
