Product Details:
Payment & Shipping Terms:
|
Application: | Laboratory, Testing Center | Internal Volume: | 150L |
---|---|---|---|
Interior Material: | SUS 304 Stainless Steel Plate | Exterior Material: | Baked Painting Steel Or Stainless Steel |
Warranty: | 12 Months Free Parts Warranty | Lead Time: | 30 Working Days Upon The Deposit |
Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
Chamber Volume: | 150L | ||
High Light: | temperature and humidity chamber,temperature test chamber |

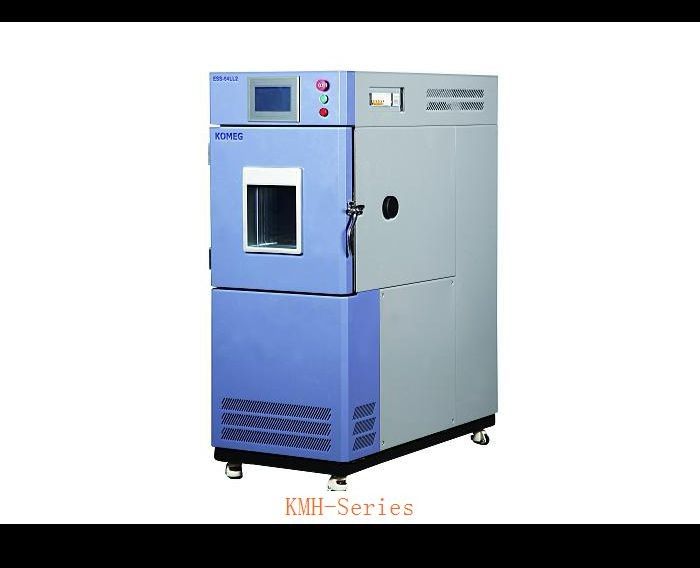

Constant Temperature Humidity Testing Chamber Device
Constant Temperature Humidity Test Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
1. Product CE Certificate and Features:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
4. Temperature humidity Test chamber The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operation life of the machine and decrease the failure rate.
6. Water supply adopts automatic watering system, circulating water supply together with water filter
Internal material: SUS304 High quality stainless steel plate (mirror panels)
External material: High quality iron plate with painting.
Insulation Material: ultra-fine glass fiber insulation cotton.
Heater: nickel-chromium alloy heating wire heating.
Humidifier: stainless steel heating pipe. Automatic water inlet.
Air circulation system: High quality air-conditioning motors, centrifugal impeller;
3. Refrigeration system:
Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor
4. Controller:
Digital Touch Screen
127 program, running for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.
5. Technical Specification:
(1) KMH-R series
Model | KMH-R series | |||||
150R | 225R | 408R | 800R | 1000R | ||
Temp. range | -20°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -20°C ~+100°C ,within 35 min | |||||
Pull down time | +20°C ~-20°C , within 45 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(2)KMH-L series
Model | KMH-L series | |||||
150 L | 225 L | 408 L | 800 L | 1000 L | ||
Temp. range | -40°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -40°C ~+100°C ,within 45 min | |||||
Pull down time | +20°C ~-40°C , within 60 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(3)KMH-S series
Model | KMH-S series | |||||
150S | 225S | 408S | 800S | 1000S | ||
Temp. range | -70°C ~150°C | |||||
Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -70°C ~+100°C ,within 60 min | |||||
Pull down time | +20°C ~-70°C , within 80 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
6. Packing Info
We use standard inner box PP film and carton plywood for the packing.
