Product Details:
Payment & Shipping Terms:
|
Application: | Laboratory, Testing Center | Internal Volume: | 150L |
---|---|---|---|
Interior Material: | SUS 304 Stainless Steel Plate | Exterior Material: | Baked Painting Steel Or Stainless Steel |
Warranty: | 12 Months Free Parts Warranty | Lead Time: | 30 Working Days Upon The Deposit |
Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
Chamber Volume: | 150L | ||
High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |

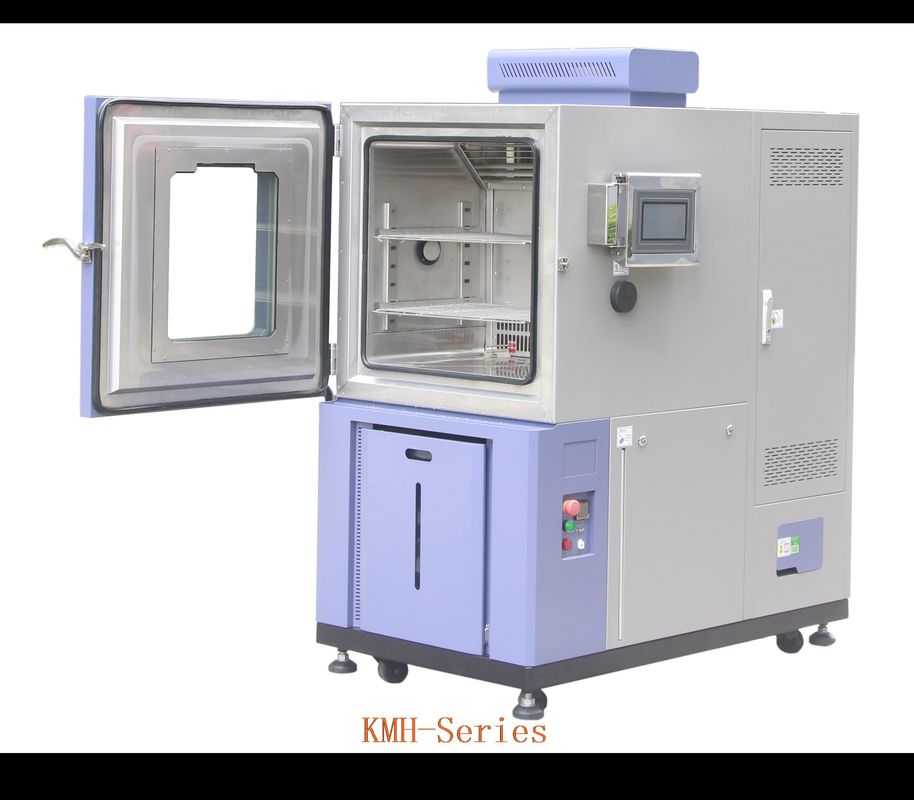

Temperature and Humidity Test Chamber for Calibrating
Constant Temperature Humidity Test Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
1. Product CE Certificate and Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
6. Controller imported LCD display screen can be displayed measuring values and setting the value and time.
7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP) .
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position
1.GB11158 high-temperature testing condition
2.GB10589-89 low-temperature testing condition
3.GB10592-89 high-low-temperature testing condition
4.GB/T10586-89 humidity testing condition
5.GB/T2423.1-2001 low-temperature testing condition
6.GB/T2423.2-2001 high-temperature testing condition
7.GB/T2423.3-93 humidity testing condition
8.GB/T2423.4-93 alternating temperature testing machine
9.GB/T2423.22-2001 temperature testing method
10.IEC60068-2-1.1990 low-temperature testing method
11.IEC60068-2-2.1974 high-temperature testing method
12.GJB150.3 high-temperature test
13.GJB150.4 low-temperture test
14.GJB150.9 humidity test
2. Structure:
Internal material: SUS304 High quality stainless steel plate (mirror panels)
External material: High quality iron plate with painting.
Insulation Material: ultra-fine glass fiber insulation cotton.
Heater: nickel-chromium alloy heating wire heating.
Humidifier: stainless steel heating pipe. Automatic water inlet.
Air circulation system: High quality air-conditioning motors, centrifugal impeller;
3. Refrigeration system:
Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor
4. Controller:
Digital Touch Screen
127 program, running for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.
5. Technical Specification:
(1) KMH-R series
Model | KMH-R series | |||||
150R | 225R | 408R | 800R | 1000R | ||
Temp. range | -20°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -20°C ~+100°C ,within 35 min | |||||
Pull down time | +20°C ~-20°C , within 45 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(2)KMH-L series
Model | KMH-L series | |||||
150 L | 225 L | 408 L | 800 L | 1000 L | ||
Temp. range | -40°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -40°C ~+100°C ,within 45 min | |||||
Pull down time | +20°C ~-40°C , within 60 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(3)KMH-S series
Model | KMH-S series | |||||
150S | 225S | 408S | 800S | 1000S | ||
Temp. range | -70°C ~150°C | |||||
Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -70°C ~+100°C ,within 60 min | |||||
Pull down time | +20°C ~-70°C , within 80 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
6. Packing Info
We use standard inner box PP film and carton plywood for the packing.
