Product Details:
Payment & Shipping Terms:
|
| Types: | Drying Ovens | Material: | Stainless Steel |
|---|---|---|---|
| Temp. Range: | 50℃～250℃ | Temp. Constancy: | ±1.0℃ |
| Temp. Uniformity: | ±2.0℃ | Warranty: | 1 Year |
| High Light: | laboratory drying oven,large industrial ovens |
||
Stainless Steel Interiors Programmable Industrial Walk-In Drying Ovens
5.1 Over View
These heating and drying ovens are available in 7 sizes with a comprehensive range of accessories, e.g. loading trolleys, temperature controller etc. They can be used globally for heating and drying processes in the production and research.
This series of reliability test for industrial products / production, with the features of high temperature control precision and wide control range, performance indicators in line with GB5170.2.3.5.6-95 "electric and electronic products environmental testing equipment Inspection methods for basic parameters of high-temperature test equipment" and meet the standard.
5.2 Description
Industrial ovens are heated chambers used for a variety of industrial applications, including drying, curing, or baking components, parts or final products. Industrial ovens can be used for large or small volume applications, in batches or continuously with a conveyor line, and a variety of temperature ranges, sizes and configurations.
Such ovens are used in many different applications, including chemical processing, food production, and even in the electronics industry, where circuit boards are run through a conveyor oven to attach surface mount components.
5.3 About KOMEG:
As a professional manufacturer and the best brand climatic chamber in China, KOMEG specialized in Environmental testing equipment for quality conscious people since 1990. Our products are CE approved and we are the supplier for ,UL, and world top 500 companies.
5.4 Specifications for Drying Oven
| Specifications of drying oven | |||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||
| Temp. constancy | ±1.0 ºC | ||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||
| Interior material | Stainless steel plate | ||||
| Exterior material | Painted Stainless steel plate | ||||
| Insulation material | Glass wool | ||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||
| Accessories | Recorder, insolating layer | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
| Specifications | ||||
| Model | KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 |
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 |
| Capacity(KVA) | 6.5 | 7.5 | 8.5 | 9.5 |
| Power | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | |||
| Temp. constancy | ±1.0 ºC | |||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | |||
| Heat up time | 50 ºC to 200 ºC within 50 min | |||
| Interior material | Stainless steel plate | |||
| Exterior material | Painted Stainless steel plate | |||
| Insulation material | Glass wool | |||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | |||
| Accessories | Recorder, insolating layer | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||
Main technical specifications
Temp. fluctuation: ≤ ±0.5ºC
Temperature deviation: RT ~ +200 ºC ≤ ±2.0 ºC
+200 ºC~ +300 ºC ≤ ±3.0 ºC
Temp. constancy: ±1.0 ºC
Heat up time: 50 ºC to 200 ºC within 50 min
Control temperature means: Forced hot air circulation, ventlation mode
Interior material: Stainless Steel Plate
Exterior material: Baked painting steel

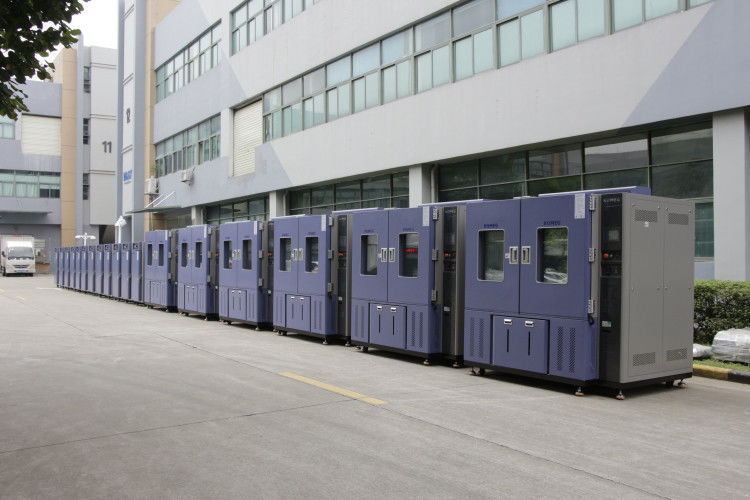

5.6 Factory Pictures
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
