Product Details:
Payment & Shipping Terms:
|
| Application: | Laboratory, Testing Center, STC, | Internal Volume: | 64L |
|---|---|---|---|
| Material: | #304 Stainless Steel | Controller: | 7inch LED Touchscreen Controller |
| Warranty: | 12 Months Free Parts Warranty | Delivery Time: | 20 Working Days Upon The Deposit |
| Trade Terms: | EXW, FOB, CIF | H.S. Code: | 9032100000 |
| Temp. Range: | -70°C ～150°C | Humidity Range: | 20~98%R.H |
| Temp. Constancy: | ±0.5ºC | Temp. Uniformity: | ±2.0ºC |
| Interior Dimension(mm): | 400W X 400H X 400D | Power Supply: | AC 380V±10％ 50Hz ,3 Phase 4 Wires +Ground Wires |
| Refrigeration System: | Air Cooled | ||
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||
AC 380V Touch-screen High and Low Temperature Humidity Chamber for Automobile
1. Application:
An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Such a chamber can be used:
as a stand-alone test for environmental effects on test specimens;
as preparation of test specimens for further physical tests or chemical tests;
as environmental conditions for conducting testing of specimens;
2. Products CE Certificate and Features:
1) CE approved with 1 year warranty
2) 33% energy saving than 2rd generation of KOMEG products.
3) Working hours up to 4,320 hours testing without downtime.
4) The ideal simulation test chamber for all heat and cold testing between -70 ºC and 150 ºC
5) Well-suited for reliability testing based on current test standards in the temperature range of -70 °C to 150 °C and 20% to 98% RH.
6) Meet all requirements for extreme testing and low temperature alternating
1) The ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range
2)Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% RH.
3) Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 180 °C with humidity
4. Main Technical Specifications Quick Know:
| Environmental Temperature and Humidity Chamber | ||||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||||
| Model | KMH-R series | KMH-L series | KMH-S series | |
| 64R | 64L | 64S | ||
| Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC | |
| Interior sizel | W(mm) | 400 | 400 | 400 |
| H(mm) | 400 | 400 | 400 | |
| D(mm) | 400 | 400 | 400 | |
| Exterior size | W(mm) | 600 | 600 | 600 |
| H(mm) | 1526 | 1526 | 1526 | |
| D(mm) | 1200 | 1200 | 1200 | |
| Power(KW) | 4.5 | 4.5 | 4.5 | |
| Weight(KG) | 150 | 150 | 150 | |
| Humidity uniformity | ±3.0%R.H | ±3.0%R.H | ±3.0%R.H | |
| Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min | |
| Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |||
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |||
| Over temp. protect, over load protect of blower, dry heat protection | ||||
| Control System | Balanced Temperature & Humidity Control System | |||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | |||

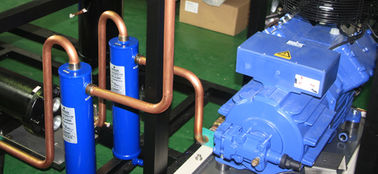

| Hermetic compressor,Single stage refrigeration system | ||||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||
| Operation model :Program or fix point running | ||||
| Memory capacity :120programs,1200steps, | ||||
| All repeat 999 cycles, part repeat 99 cycles | ||||
| Humidity Range | 20~98%R.H | |||
| Temp. constancy | ±0.5ºC | |||
| Humidity constancy | ±2.5%R.H | |||
| Temp. uniformity | ±2.0ºC | |||
| Interior material | Stainless Steel Plate(SUS 304) | |||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||
| Ambient Temp. | +5ºC~+35ºC | |||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
||||
5. Why Choose KOMEG?
Over 26 Years' Experience
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
