Application: | Laboratory, Testing Center | Internal Volume: | 408L |
---|---|---|---|
Interior Material: | SUS 304 Stainless Steel Plate | Exterior Material: | Baked Painting Steel Or Stainless Steel |
Warranty: | 12 Months Free Parts Warranty | Lead Time: | 30 Working Days Upon The Deposit |
Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
Temperature Constancy: | ±0.5 | ||
High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |

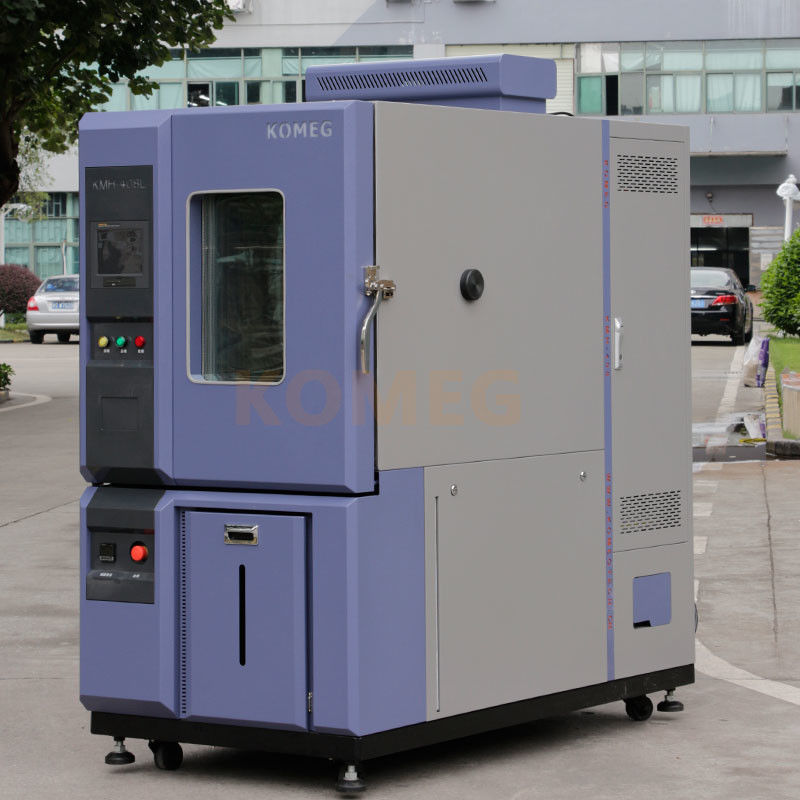

408L Constant temperature and humidity chamber laboratory testing oven
Used for testing the performance of discoloring, fading, aging, transmissibility, peeling, hardening, softening, of the products and materials in the industries of rubber, plastic, paint, petrochemicals, auto, fabric, for solar radiation simulation test( illumination, raining, temperature, humidity, )
1. Product CE Certificate and Features:
1 Automatic temperature controls.
2 Unique design of heat exchanger for improved heat transfer efficiency.
3 Heated with air circulating fan with heater.
4 Temperature controlled by Digital Temperature Indicator and Controller.
5 Transparent viewing window to see the samples.
6 Push type door locking system.
7.Glass window in the door allows sample viewing
Constant temperature and humidity chamber for the reliability of industrial products Damp heat test. Performance indicators in line GB5170.18 "electric and electronic products, the basic parameters of environmental testing equipment, test methods" requirements. This product meets GB10592.89, GB2423.22.87 standard
2. Structure:
3. Refrigeration system:
Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor
4. Controller:
Digital Touch Screen
127 program, running for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.
5. Technical Specification:
(1) KMH-R series
Model | KMH-R series | |||||
150R | 225R | 408R | 800R | 1000R | ||
Temp. range | -20°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -20°C ~+100°C ,within 35 min | |||||
Pull down time | +20°C ~-20°C , within 45 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(2)KMH-L series
Model | KMH-L series | |||||
150 L | 225 L | 408 L | 800 L | 1000 L | ||
Temp. range | -40°C ~150°C | |||||
Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -40°C ~+100°C ,within 45 min | |||||
Pull down time | +20°C ~-40°C , within 60 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
(3)KMH-S series
Model | KMH-S series | |||||
150S | 225S | 408S | 800S | 1000S | ||
Temp. range | -70°C ~150°C | |||||
Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
D(mm) | 460 | 480 | 800 | 800 | 1000 | |
Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
Heat up time | -70°C ~+100°C ,within 60 min | |||||
Pull down time | +20°C ~-70°C , within 80 min | |||||
Humidity Range | 20~98%R.H | |||||
Temp. constancy | ±0.5ºC | |||||
Humidity constancy | ±2.5%R.H | |||||
Temp. uniformity | ±2.0ºC | |||||
Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
Interior material | Stainless Steel Plate(SUS 304) | |||||
Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
Ambient Temp. | +5°C ~+35°C | |||||
Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
Controller | LCD Touch Screen, Chinese or English display selectable | |||||
Operation model :Program or fix point running | ||||||
Memory capacity :120programs,1200steps, | ||||||
All repeat 999 cycles, part repeat 99 cycles |
6. Packing Info
We use standard inner box PP film and carton plywood for the packing.
1.OEM service: we can custom your any designs. Color, material, sizes, power, etc, all by your request.
2. ODM service: We have a professional design team, you can choose any model, any design from our website.
3. We have strictly quality control system to make sure our goods will be same as your request. Our professional and well experience QC stuffs control the quality strictly from the production begging to the goods leave warehouse.
4. A variety of payment methods can be selected.
5. Various modes of transport can be choose.
6. The goods are intact packaging before shipment.
