| Application: | Laboratory, Testing Center | Internal Volume: | 408L |
|---|---|---|---|
| Interior Material: | SUS 304 Stainless Steel Plate | Exterior Material: | Baked Painting Steel Or Stainless Steel |
| Warranty: | 12 Months Free Parts Warranty | Lead Time: | 30 Working Days Upon The Deposit |
| Trade Terms: | EXW, FOB, CIF, DDU, DDP | H.S. Code: | 9032100000 |
| Temperature Constancy: | ±0.5 | ||
| High Light: | humidity and temperature controlled chamber,temperature test chamber |
||

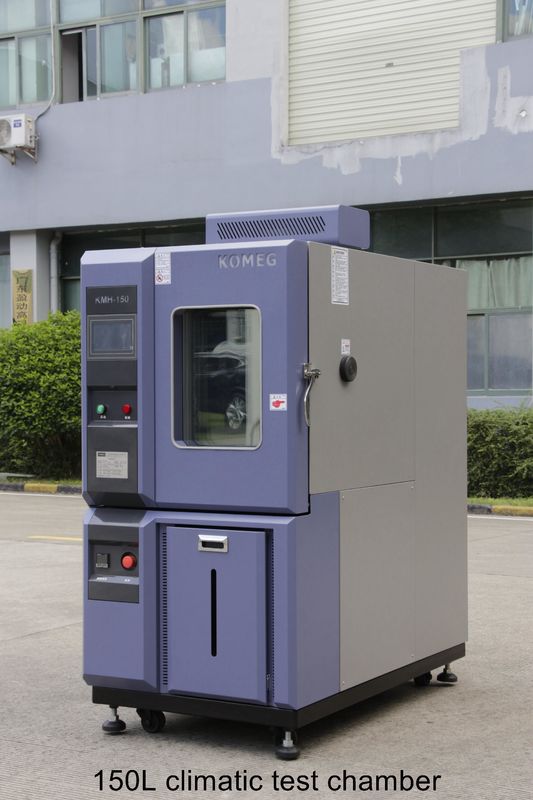

Material Antioxidation Testing Cabinet/Environmental Test Chamber/Laboratory Material
Temperature Humidity Environmental Test Chamber is called environmental testing chamber, which is able to accurately simulate such complicated natural environments as low temperature, high temperature, high temperature and humidity, low temperature and humidity etc., applicable to the QC inspection in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
The performance index conforms to the requirements of GB5170,2,3,5,6-95 ‘Inspection Methods for Basic Parameters of Environmental Test Equipment for Electric and Electronic Products—Low Temperature, High Temperature, Constant Temperature & Humidity and Alternating Temperature & Humidity Test Equipment’.
1. Product CE Certificate and Features:
1. Applicable to electronic electrician, home appliance, automotive, instruments and meters, electronic chemicals, spare parts, raw materials and coatings coating in the adaptability of temperature and humidity environment test.
2. Adopt imported digital display temperature control meter, moisture, temperature and humidity controlling visual display.
3. The working chamber is made of high quality 304 stainless steel mirror plate, shell electrostatic plastic spraying and efficient thermal insulation layer.
4. Adopts steam humidifying method, automatic water circulation loop, with functions of automatic filling water.
5. The door is equipped with large viewing window, indoor lighting installation, can observe the test the test status of the sample.
6. Install cable test hole, electricity test sample for test.
7. Have overtemperature, water shortage, leakage protection device such as a security.
2. Structure:
3. Refrigeration system:
Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor
4. Controller:
Digital Touch Screen
127 program, running for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.
5. Technical Specification:
(1) KMH-R series
| Model | KMH-R series | |||||
| 150R | 225R | 408R | 800R | 1000R | ||
| Temp. range | -20°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -20°C ～+100°C ,within 35 min | |||||
| Pull down time | +20°C ～-20°C , within 45 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
(2)KMH-L series
| Model | KMH-L series | |||||
| 150 L | 225 L | 408 L | 800 L | 1000 L | ||
| Temp. range | -40°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -40°C ～+100°C ,within 45 min | |||||
| Pull down time | +20°C ～-40°C , within 60 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
(3)KMH-S series
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -70°C ～+100°C ,within 60 min | |||||
| Pull down time | +20°C ～-70°C , within 80 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
6. Packing Info
We use standard inner box PP film and carton plywood for the packing.
1.OEM service: we can custom your any designs. Color, material, sizes, power, etc, all by your request.
2. ODM service: We have a professional design team, you can choose any model, any design from our website.
3. We have strictly quality control system to make sure our goods will be same as your request. Our professional and well experience QC stuffs control the quality strictly from the production begging to the goods leave warehouse.
4. A variety of payment methods can be selected.
5. Various modes of transport can be choose.
6. The goods are intact packaging before shipment.
