Product Details:
Payment & Shipping Terms:
|
| Produce Name: | Drying Oven | Usage: | Process Testing Machine |
|---|---|---|---|
| Temp. Range: | 50℃～200℃ | Temp. Constancy: | ±1.0℃ |
| Temp. Uniformity: | ±2.0℃ | Volume: | 1500L |
| Warranty: | 1 Years | Safety Devices: | NFB, Over Temp. Reley, Fuse |
| High Light: | laboratory drying oven,large industrial ovens |
||

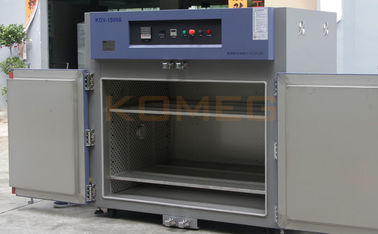

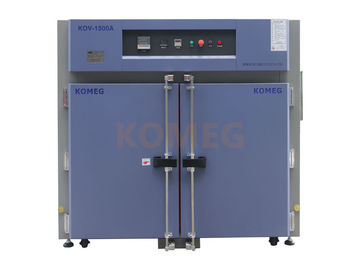

Double Door Digital Display Lab Scale Drying Oven For Stability Test Factory Sale Directly
This series of reliability test for industrial products / production, with the features of high temperature control precision and wide control range, performance indicators in line with GB5170.2.3.5.6-95 "electric and electronic products environmental testing equipment Inspection methods for basic parameters of high-temperature test equipment" and meet the standard.
Specification
| Specifications of drying oven | |||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||
| Temp. constancy | ±1.0 ºC | ||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||
| Interior material | Stainless steel plate | ||||
| Exterior material | Painted Stainless steel plate | ||||
| Insulation material | Glass wool | ||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||
| Accessories | Recorder, insolating layer | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
| specifications | ||||
| Model | KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 |
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 |
| Capacity(KVA) | 6.5 | 7.5 | 8.5 | 9.5 |
| Power | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | |||
| Temp. constancy | ±1.0 ºC | |||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | |||
| Heat up time | 50 ºC to 200 ºC within 50 min | |||
| Interior material | Stainless steel plate | |||
| Exterior material | Painted Stainless steel plate | |||
| Insulation material | Glass wool | |||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | |||
| Accessories | Recorder, insolating layer | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations |
||||
South Korea imported thermostat controller ST-570
* Achieve high accuracy (0.1%), high-performance
* High resolution (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Can complete simultaneously output multiple output (Max 4 points)
* Simple parameter setting, text available
* Support suppression system (Overshoot) temperature function
* Alarm output 1 point
* RUN/STOP performance
* Default operation start and termination functions
* Operation screen displays of the auxiliary output status
* Each interval input adjustment function (Max 4 Zone)
*Achieve control of heating, cooling function
* PID auto-adjustment function (AT Gain)
* Support for multiple communication protocols (Modbus, etc.)
* Achieve high-quality, high reliability (CE, CUL, ISO, etc.)
Product detial
Our service
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
Tag: vacuum drying oven, laboratory drying oven
