| Power: | 3 Phase 4 Wires+Groud Wires | Application: | Lab, Electronic |
|---|---|---|---|
| Temp Range: | -70 ~ +150°C | Humidity Range: | 20 To 98%RH |
| Material: | Stainless Steel Plate SUS 304 | Warranty: | 1 Year |
| Highlight: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

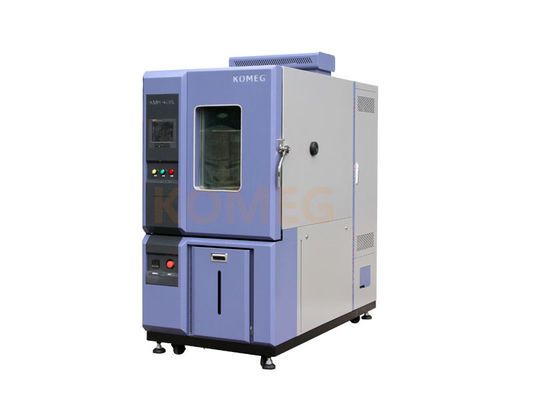

408L Programmable Temperature Humidity Environmental Test Chamber For Electronics
Programmable temperature humidity environmental test chamber generally have viewports or video feeds to allow for visual inspection of the sample during the test. Reach-in chambers provide an opening that technicians may use to handle test samples. Programmable temperature humidity environmental test chamber providing interior visual lighting must take into account the heat generated and compensate accordingly.
| Model | KMH-S series | |||||
| 150 S | 225 S | 408 S | 800 S | 1000 S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -40°C ～+100°C ,within 45 min | |||||
| Pull down time | +20°C ～-40°C , within 60 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
A. Reliability testing based on current test standards between -70 °C to 150 °C
B. Accurate temperature heating and cooling control
C. Excellence design, balance temperature & humidity control system.
D. Custom-made machine are available and optional accessories satisfied your special requirements.
E. Programmable and data collection by computer
F. Easy operation system with energy-saving, the controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system
● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test
This kind of chambers may be computer programmable, and networked or Web-enabled are also available. As with the wide variance in size, numbers of user control options are available, ranging from simple analog indicators up to more modern digital readouts with LCD displays.
