Product Details:
Payment & Shipping Terms:
|
| Products Name: | Combined Vibration And Temperature And Humidity Test Chamber | Temperature Range: | -70℃ ～ +150℃ |
|---|---|---|---|
| Humidity Range: | 20%R.H～98%R.H | Chamber Size: | W 1000 × H 1000 × D 1000 Mm |
| Material: | Stainless Steel | Rated Sine Force: | 20 KN |
| Frequency Range: | DC～3000 Hz | Max Displacement(p-p): | 51mm |
| Table Size (mm): | 600×600 Mm | ||
| High Light: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

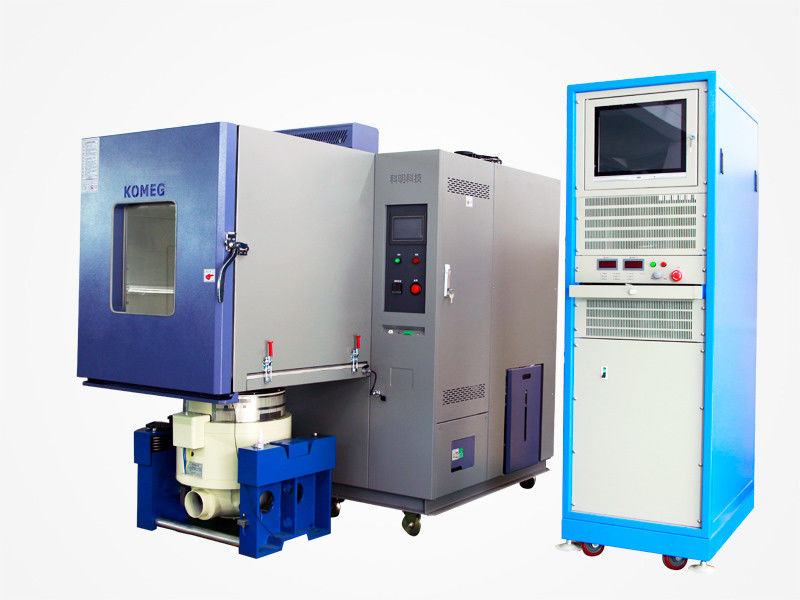

Combined Vibration and Temperature and Humidity Test Chamber for Reliability and Durability Test
Working Principle
KOMEG vibration chambers offer rapid temperature change rates with combined temperature, humidity, and/or vibration environments. These chambers are designed for compatibility with electrodynamic or mechanical vibration systems. The Vibration Table ideal for vibration testing of small components or electronics and is designed for stand-alone testing or may be placed in an environmental chamber for combined temperature and vibration testing.
Application
Can match appropriate vibration table. Meet all kinds of the corresponding temperature, humidity, vibration, three comprehensive test requirements. Widely used in aviation, aerospace, shipbuilding, electrical, electronics, communications and other fields
Features
● Combined laboratory structure and refrigeration system as a whole, compact and beautiful, easy operation.
●Refrigeration compressor, LCD touch screen and main parts are imported brand, equipped with RS232 communication interface.
●Good mechanical transmission and match different types of vibration table.
Packaging
Each set protected with resin fiber and PP film, then put into strong wooden case with operation mannual and video inside.
After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
The reasons why class enterprises choose us
1. We appreciate you, the customer, and we always treat our customers with the greatest consideration and courtesy.
2. We'll be here tomorrow. Our business has been headquartered in Shenzhen, Dongguan for over twenty years. We are one of the largest independant environment test equipment manufacturers in China.
3. We'll do our best to remedy any problem you might have with a purchase. We are old fashioned in our customer service; We believe we have an obligation to give you our best if you purchase from us.
4. Your order will be filled accurately and shipped promptly. We have thousands of parts in stock. We have been selling by email order for over fifteen years.
5. You won't pay too much. Our volume buying and low overheads assures you of a low price and top quality new products.
Specifications:
| temperature/humidity/vibration Multi-Functional Integrated Testing Chamber | |||
| Specifications | |||
| THV- | |||
| 408 | 1000 | ||
| Working chamber volume ( L ) | 408 | 1000 | |
| Interior size ( W*H*D ) mm | 600*850*800 | 1000*1000*1000 | |
| Safety device | No fuse breaker, over pressure over heat and over current protection for compressor, | ||
| Over temp. protection, over load protection for blower, | |||
| Hydraulic and Water lack Protection dry heat protection | |||
| Power | AC 380V/50Hz ,3phase 5 wires+ Ground wire | ||
| Temp regulating mode | Balanced Temperature & Humidity Control System ( BTC ) | ||
| Ambient temp | +5 ºC~ +35 ºC | ||
| Performance | Temp range | -70 ºC~ +150 ºC | |
| Temp constancy | ≤0.5 ºC | ||
| Temp uniformity | ±2.0 ºC | ||
| Humidity constancy | ±2.5%RH | ||
| Humidity range | 2.0%RH ~ 98%RH | ||
| Humidity uniformity | If humidity≤75%RHJ, ±3.0%RH ; f humidity > 75%RHJ, ±5.0%RH | ||
| Cooling rate | ≤5 ºC /Min or ≤10 ºC /Min ( -55 ºC~ +80 ºC within humidity range ) | ||
| Material | Exterior material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel plate | |
| Interior material | Stainless steel plate(SUS 304) | ||
| Insulation material | Rigid polyurethane foam | ||
| Cooling system | compressor | Semi-Hermetic Compressor | |
| Cooling mode | Water cooled | ||
| Heater | Iron-chrome wire heater | ||
| Blower | Centrifugal Blower | ||
| Sight window | 470mm*350mm Glass incorporating heat generator | ||
| Temp sensor | Pt-100 | ||
| Controller | Touch screen controller | ||
| Shaking table | Custom made as required | ||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||
Specification for Combined Vibration and Temperature and Humidity Test Chamber KMVH-1000S-C5.pdf
