Product Details:
Payment & Shipping Terms:
|
| Products Name: | Combined Vibration And Temperature And Humidity Test Chamber | Temperature Range: | -70℃ ～ +150℃ |
|---|---|---|---|
| Humidity Range: | 20%R.H～98%R.H | Chamber Size: | W 1000 × H 1000 × D 1000 Mm |
| Rated Sine Force: | 32KN | Frequency Range: | DC～3200Hz |
| Max Displacement(p-p): | 51mm | Table Size (mm): | 800mm×800mm |
| High Light: | humidity and temperature controlled chamber,temperature test chamber |
||

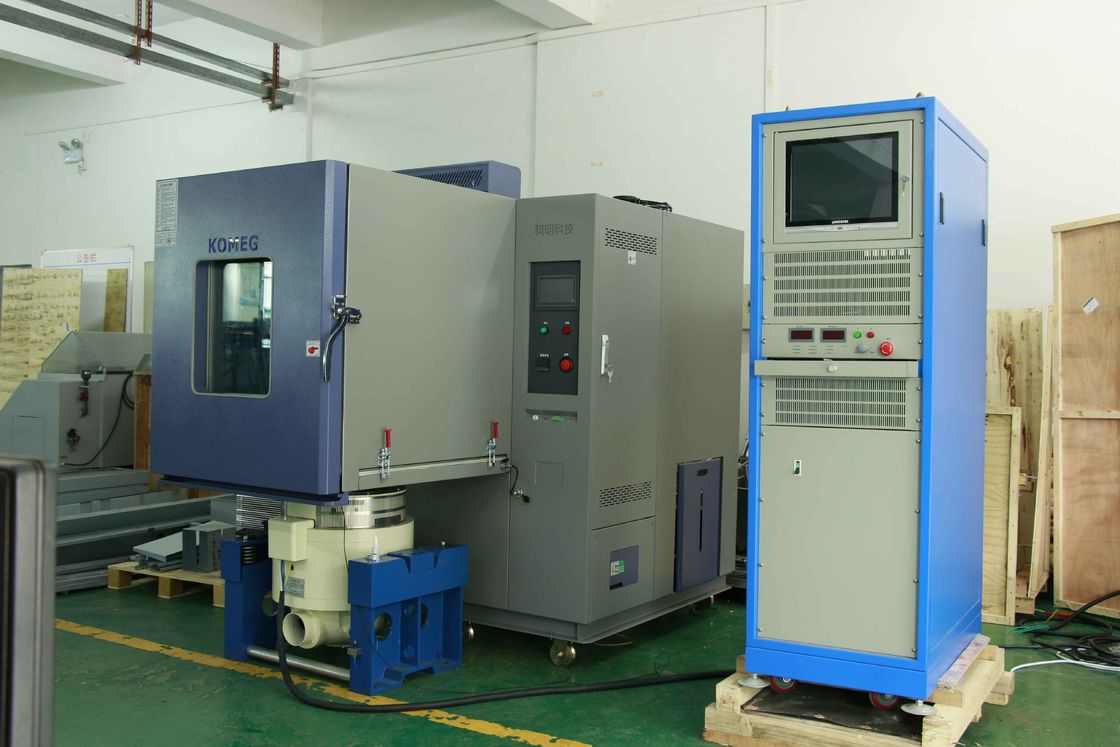

CE Certificated Temperature Humidity Vibration Combined Climatic Test Chamber
Working Principle
Temperature Humidity Vibration Three Integrated Test Chamber is a comprehensive meet all kinds of corresponding temperature, humidity, vibration test requirements.
Application
Can match appropriate vibration table. Meet all kinds of the corresponding temperature, humidity, vibration, three comprehensive test requirements. Widely used in aviation, aerospace, shipbuilding, electrical, electronics, communications and other fields
Features
● Combined laboratory structure and refrigeration system as a whole, compact and beautiful, easy operation.
●Refrigeration compressor, LCD touch screen and main parts are imported brand, equipped with RS232 communication interface.
●Good mechanical transmission and match different types of vibration table.
Packaging
Each set protected with resin fiber and PP film, then put into strong wooden case with operation mannual and video inside.
After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
The reasons why class enterprises choose us
1. We appreciate you, the customer, and we always treat our customers with the greatest consideration and courtesy.
2. We'll be here tomorrow. Our business has been headquartered in Shenzhen, Dongguan for over twenty years. We are one of the largest independant environment test equipment manufacturers in China.
3. We'll do our best to remedy any problem you might have with a purchase. We are old fashioned in our customer service; We believe we have an obligation to give you our best if you purchase from us.
4. Your order will be filled accurately and shipped promptly. We have thousands of parts in stock. We have been selling by email order for over fifteen years.
5. You won't pay too much. Our volume buying and low overheads assures you of a low price and top quality new products.
Specifications:
|
Ⅰ. Performance (Water cooled, Water temperature +25℃, no load ) |
||||
|
||||
| 1. Temperature range | -70℃ ～ +150℃ | |||
| 2.Temperature deviation | ≦±2.0℃ | |||
| 3.Temperature fluctuation | ±0.5℃ | |||
| 4.Temperature uniformity | ≦2.0℃ | |||
| 5.Temperature change rate |
Heating rate: -70℃ to +150℃ nonlinear 5℃/min no load Cooling rate: +150℃ to - 70℃ nonlinear 2℃/min no load |
|||
| 2. Humidity | ||||
| 1. Humidity range | 20%R.H～98%R.H | |||
| 2.Humidity range |
|
|||
| 3. Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||
| 4. Humidity fluctuation | ±2.0％RH | |||
| Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet. | ||||
| Ⅱ. Chamber Structure | ||||
| 1. Chamber size |
Workspace volume: W 1000 × H 1000 × D 1000 mm Exterior size: W 1200 × H Pending × D 2650 mm (about) |
|||
| 2．Insulation box |
※ wall material: high-quality carbon steel with static color spray ※ inner wall material: SUS304 # matte stainless steel plate ※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
|||
| 3. Heater | High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR). | |||
| 4.Supply air circulation system |
A. Special stainless steel lengthened axis of the motor 1 B. SIROCCO FAN C. Adjustable shutter outlet |
|||
| 5．Door |
Single door, single window, left open, handle on right hand side A. Window W460 * H560mm with energy-saving lamps 1 only B. Explosion-proof handle C. Button: SUS # 304 |
|||
| 6. Temperature measuring body | High precision DIN A class, dry bulb SUS # 304 PT 100Ω 1 Pcs | |||
| 7．Cable port | Φ50mm*1 located on both sides(each*1) with rubber stopper and plastic cover | |||
| 8．Sample holder | Two layers of stainless steel sample holder, load capacity 30kg/layer | |||
| Ⅱ. Specifications | |
| Sine force | 32KN |
| Random force | 32KN |
| Shock force | 64KN |
| Frequency Range | DC～3200Hz |
| Maximum displacement | 51mm |
| Maximum speed | 2m/s |
| Maximum acceleration | 1000m/s2 |
| Moving coil diameter | Φ320mm |
| The equivalent mass of moving parts | 32kg |
| Maximum static load | 500kg |
| First resonant frequency | 2100Hz±5% |
| Load connection point | 17 points |
| Table –board screw size (standard) | M10 |
| Axial isolation frequency | ＜3Hz |
| Magnetic flux leakage | ≤1mT |
| Size (no packaging) | L 1380mm × W 990mm × H 1090mm |
| Vibration test machine weight | 2400kg |
| Amplifier output | 32kVA |
| Signal to Noise Ratio | ＞65dB |
| Rated output voltage | 120Vrms |
| Power amplifier efficiency | ＞90% |
| Table size | 800mm×800mm |
| Equivalent quality | About 65kg |
| Upper limit frequency | 1000Hz |
| Table material | Magnesium alloy |
| Load connection point | Available as required |
Specification for Vibration and Temperature Test Chamber KMVH-1000S-C5.pdf
