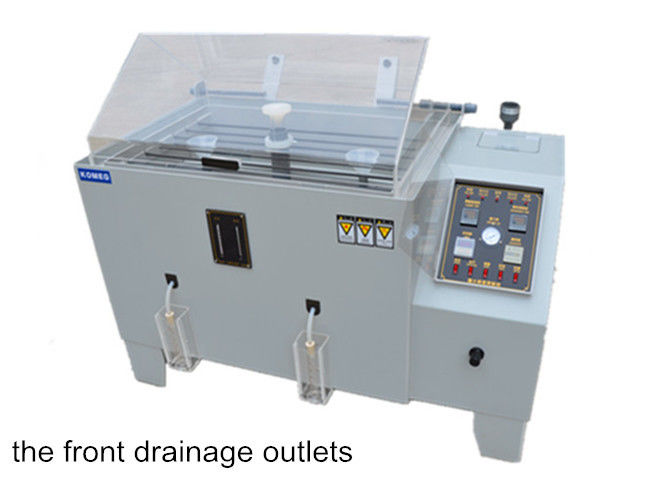

Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber

Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber
Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber

Large Image :  Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: KOMEG
Certification: CE CERTIFICATE
Model Number: HL-90-BS
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: 1100 ~6800 USD / SET
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 SETS PER YEAR
Detailed Product Description
Power: Electronic Temperature Range (Testing Space): 35±1℃~50±1℃
Testing Room Relative Humidity: > 85% Usage: Salt Spray Test Chamber
PH: 6.5~7.2; 3.0~3.2 Air Compressor: 1/2 HP
Power Supply: AC220V 50Hz Volume: 270L
Test Applicable: NSS, ACSS,CASS,CORK Package: Plywood
High Light:

salt spray testing machine

,

salt spray test equipment



Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber





Product Description



Salt cycle corrosion chamber is used to create and maintain the salt spray (fog) test environment, and test the anti-corosion quality of the materials surfaces, and is suitable for researching materials, light industry, electronics, instrumentation and other industries a variety of products





Specifications:



Specifications (Note: We reserve the right to change specifications without prior notice)

Model

HL-160-NS

HL-120-BS

HL-90-BS

HL-60-SS

Interior dimensions(W*H*D)mm

1600 X 500 X 1000

1200 X 500 X 800

900 X 500 X 600

600 X 400 X 450

Exterior dimensions(W*H*D)mm

2240 X 1500 X 1600

1410 X 1280 X 880

1460 X 1280 X 910

1130 X 1070 X 630

Testspace Volume(L)

800

480

270

108

Salt Water Tank Volume (L)

60

40

25

15

Heater

15KW+1KW

11KW+1KW

7KW+0.75KW

3KW+0.75KW

Air compressor

2HP

2HP

1/2HP

1/2HP

Temp. range (Testing barrel)

35±1℃~50±1℃

Temp. range (Pressure barrel)

47±1℃~63±1℃

Test applicable

NSS, ACSS,CASS,CORK

Pressed Air Pressure

1.00±0.01kgf/cm²

Spray Amount

1.0~2.0ml/80cm²/h(Collect at least 16 hours, take the average)

Ambient Relative Humidity

More than 85%R.H.

PH Value

6.5~7.2 3.0~3.2

Spraying Manner

Programmable Spraying

Power

AC220V 1Φ 50Hz



Structure(figure1)



Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber 0



Instruction:



(1) Spray tower



(2) Funnel cup



(3) Touch screen controller



(4) Regulator



(5) Pressure gauge



(6) Metering cylinder





Controller(figure 2)



Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber 1



Controller instruction:



(1)Chamber real-time temperature



(2)Chamber temperature setting



(3)Actual test time



(4)Test time setting



(5)Accumulative time



(6)Power swithch



(7)Machine start/stop working button



(8)Spray start/pause button



(9)Test chamber low water alarm



(10)Defog after test



(11)Salt water tank low water alarm



(12)Reduce setting value



(13)Increase setting value



(14)Pressure barrel low water alarm



(15)Non-spray time setting



(16)Spray time setting



(17)Pressure barrel temperature setting



(18)Pressure barrel real-time temperature





Control system:



Test chamber temperature control: Control the chamber temperature , according to standard, NSS AASS test is 35℃,and CASS test is 50℃.



Pressure barrel temperature control:Control the saturated air barrel temperature, NSS AASS is 47℃,CASS test is 63℃.



NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).



CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).



Power switch:Control the whole machine power. Long press for power on or off.



Start/stop switch:Control the heating system of test chamber, heat sink and Pressure barrel.

Spray/pause switch:control the spray system.



Defog switch:control defog system, clear the salt mist in chamber after test.



Test chamber low water alarm:When the water level is low, the light will flicker . Add pure water into the test chamber until the light doesn,t flicker.



Salt water tank low water alarm:When the salt water level is low, the light will flicker.Add salt water into the salt water tank until the light doesn,t flicker.



Pressure barrel low water alarm:When the water level is low, the light will flicker.Add pure water into the pressure barrel nutil the light doesn,t flicker.



Illustration on the back of the salt spray tester



Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber 2









Our Services



We are on line 24 hours, your any questions will get timely effective treatment and recovery.



Transport



Depending on the size of the order and its destination, we will find the most efficient way of delivering your order. Collect shipments through your account at UPS, FedEx, freight forwarder of choice or other can also be arranged. Let us know of such arrangements with your Purchase Order.

Quotes and Orders do not include customs duties and taxes as they vary from country to country and are the sole responsibility of the buyer.



FAQ



1. Q: Have your machine met relevant standards, and with relevant TEST CERTIFICATE?

A: Yes, our machines are manufactured according to International Standards. If TEST CERTIFICAT required, it can be offered.



2. Q: How-to vedio provided?

A : Yes, if required, our engineers will record a specialize how-to video for you.



3. Q: Is the machine made in your own plant?

A: Yes, welcome to visit our plant(factory), also we support OEM and ODM.



4. Q:How you do the maintenance oversea?

A: In the way you are convenient, by Telephone or E-mail or Vedio meeting etc.



Auto Sheet Temperature Humidity Salt Spray Mist Corrosion Testing Chamber 3



SALT SPRAY TEST CHAMBER Brochure -KOMEG.pdf
