Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rapid Temp Change Chamber | Application: | Reliability Testing, Research & Development Testing, Failure Analysis |
|---|---|---|---|
| Working Chamber Volume: | High And Low Temperature Test Chamber | Power Source: | AC380V |
| Cooling Mode: | Water Cooled | Compressor: | Semi-Hermetic Compressor |
| Heater: | Iron-chrome Wire Heater | Controllor: | Touch Screen Programmable Controllor |
| Temperature Constancy: | ±0.5℃ | ||
| High Light: | Environmental Stress Screening Chambers,environmental testing chambers |
||

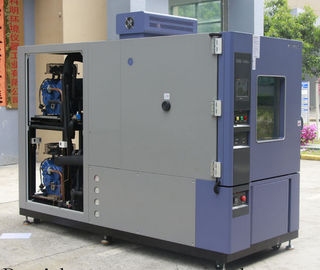

ESS-1000SL15 Fast / Rapid Temperature Change ESS Chamber High And Low Temperature Control Chamber
1. Applications
High Low rapid change Temperature Test Machine is mainly used for for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
2. Standard compliance
3. Specifications
| Model | ESS-SL |
| 1000SL15 | |
| Working Chamber Volume(L) | 1000L |
| Temp Rate of Change( ºC /Min) | 15 ºC /Min |
| Temperature Range | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
4. Features:
Intelligent 32bit measuring and control system with colorful screen. Interface USB and Ethernet.
-Programmable power outlet with 4-CH. ON/OFF output control to ensure safety.
-Patented air circulation system improve test's accuracy.
-Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog.
-Network video monitoring is synchronized with test data.
-Without defrosting during operating in low temperature.
- Modular fabrication technique.
-APP mobility management.
-Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate.
-Uniquely operation mode makes testing zone's temperature back to R.T after test, which protects sample status.
-Automatic reminder of maintenance time of equipments and software of fault records.
-Optional remote service function and video CD of equipment operation.
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
