High Rapid Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber

China High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber supplier
High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber supplier High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber supplier High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber supplier High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber supplier

Large Image :  High Rapid Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber

Product Details:

Place of Origin: China
Brand Name: komeg
Certification: CE
Model Number: ESS-2765S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Rigid foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs/day
Contact Now
Detailed Product Description
Temp Range: -70℃ ~100℃ Rapid Temp Change-55℃~+85℃ Humidity Constancy: +-0.5℃
Interior Material: SUS 304 Exterior Material: Baked Painting Steel
Compressor: Semi-Hermetic Compressor Cooling Mode: Water Cooled


High Rapid ESS Chamber / Altitude Temperature Change Climatic Test Chamber


High-precision microcomputer control thermostat system, PID control, the system of heating and weight



reduction to achieve low energy consumption, energy saving, carbon reduction effect. Heating electronic



intelligent control that can be long-term stable use.



Ⅱ. Application

It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.



Ⅲ. Features

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test



1.Energy-saving Bypass mode to adjust cooling capacity to achieve a constant temperature and humidity effectively
2Easy Operation

Using company owned brand KOMEG KM-5166 LCD touch screen controller with PID control parameters setting

Flexible approach for data collection and recording

3High reliability

Key parts are imported, ensuring the service life and high reliability

Efficient oil separator to ensure the service life of the compressor

4. Technical specification (Air cooled, room temperature +25℃, no load
1.Temperature range -70℃ ~ +100℃
2.Temp Deviation ≦±2.0℃
3.Temp Fluctuation ±0.5℃



4.Heat up rate From -70℃ ↑ +180℃ Average 20℃/min No load .(According to IEC60068-3 Standard )
5.Cooling rate From +180℃ down to -70℃ Average 20℃/min No load .(According to IEC60068-3 Standard)
6.Load Product calorific value 1000w.
2.Insulation box

Wall material: high-quality carbon steel with static color spray

 Inner wall material: SUS304 # matte stainless steel plate

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

3.Door

Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.
4.Observation window With observation window(Specific size based on design )electric insulation coated glass prevent condensation effectively
5.Lighting device LED Lighting device *1 located on observation window
6. Heating

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

7.Condensat Water outlet hole Available for drain the condensate water
9. Cable port Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover
9.Shelf for samples Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer
11. Mobile Casters Mobile Casters with foot cups
12.Electric control box Total power circuit breaker, over-temperature protection.
Ⅵ. Cooling System
1.Compressor

German Bock /Bizr hermetic compressor



2.Refrigerant Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe and non-toxic .
3.Condenser Shell and Tube condenser(Water -cooled)
4.Evaporator Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of low temperature and humidity conditions
5.Other accessories Use internationally-known brand, such as high precise expansion valve, oil extractor, dryer and many other accessories.
6.Refrigerant flow control Adjust energy consumption output and control automatically to the refrigeration system.
7.Refrigeration Technology

※ Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.

※water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.



Ⅶ. Control System



1.Sensor High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω.



3. Display function

Temp.& humidity Setting (SV) Practical (PV) value can be displayed directly

Execution of the program can display numbers, paragraphs, remaining time and cycles, running time display,

Program editing and graphic curve display,

Fixed or program operation status display,

Resolution: 800 * 480, 7-inch TFT display screen.

4.Display resolution Temperature: + 0.01℃;Humidity: + 0.1%;Time : 0.01min .
5.Setting range

Temperature condition:-100~200℃

Temperature can be adjusted based on the working temperature of the equipment (the upper limit:+5℃, the lower limit:-5℃)

Humidity condition:0~100 %RH

6. Operating mode Programmable running, constant running
7.Program Capacity

Set the running time up to 999999 h 59 m (can also be set to continuous operation without time limit);

Available program capacity: up to 269 groups, total 13450 segments;

Memory capacity that can be used: 50 steps per group;

Repeatedly executed commands: Each command can be up to 32,000 cycles.

8.Setting Way Man-machine dialogue mode using touch input and control.
9.Interface

Can be connected to the computer display curve, data acquisition;

Can be used as monitoring and remote control system;

Can do more than one machine synchronization control;

RS-232, RS-485 and Ethernet.(Include Wire : meter )

10.USB function USB port for rapid data extraction or program input.
11.Record way

RAM with battery protection, setting (SV), Practical(PV) and sampling time can be saved; curve recording cycle can be set 30 ~ 300 sec,

Maximum historical data and curve memory continuous storage is 90 days (when the sampling time is 1 min)

no continuous use 10 years data are available.

11.Power off memory Power recovery mode can be set as hot start, cold start and stop
12. Pre-set function Boot time can be set freely and machine runs automatically when turning on power
14.Software environment Windows XP or Windows 7 / WIN8 operating system
15.Network Connection

Can be connected to Ethernet via professional software,

Remote control & assistance function and data collection can be achieved through network, Multi machine can be controlled simultaneously

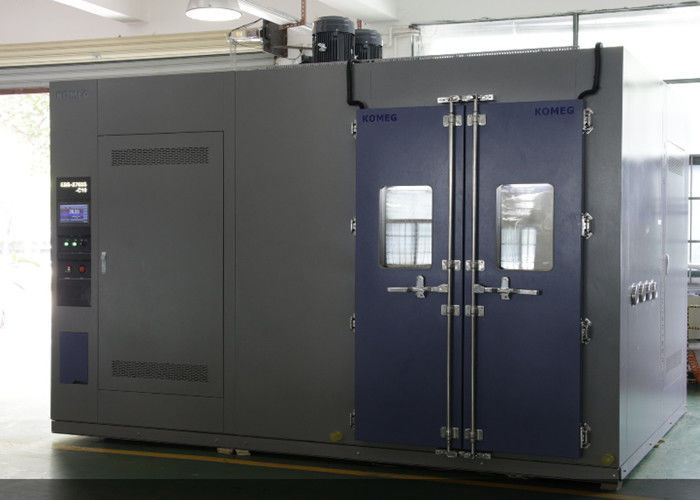

Photos show



High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber

High  Rapid  Change ESS Chamber / Altitude Temperature Change Climatic Test Chamber
