| Cable Port: | Φ50mm*1 Located On Each Side Of Chamber, With Rubber Stopper And Stainless Steel Cover | Humidity Uniformity: | 3.0％RH (no-load) |
|---|---|---|---|
| Interior Material: | SUS 304 | Ramping And Soaking Rate: | Heating Up Rate: -20℃↑ +100℃ About 35min (no-load, Ambient Temperature +25℃) Cooling Rate: 20 ℃to -20℃ About 45min (no-load, Ambient Temperature +25℃) |
| Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） | Packing: | Rigid Foam And Wooden Box |
| High Light: | led light testing equipment,led testing instruments |
||
LED Products will step into their Spring for the environment protection, and LED Test Chamber will gain some advantage with the LED Lamps. LED Test Chamber can be seen in a lab of a university or testing center, In a word, LED Test Equipment will help people find good quality products.
Feathers
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specification
| Capacity(L) | 800L |
|
Temperature range |
-40℃ ～ +150℃ |
|
Temp Deviation |
≦ ± 2.0℃ |
|
Temp Fluctuation |
±0.5℃ |
|
Ramping and soaking rate |
Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃) Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃) |
|
Humidity range |
20%R.H～98%R.H |
|
Humidity deviation |
±5.0％RH(≤75％RH) |
|
Humidity uniformity |
3.0％RH (no-load) |
|
Humidity fluctuation |
±2.0％RH |
|
Chamber structure |
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
Main Material List imported from famous brand
|
Name |
Brand |
|
Compressor |
French Tecumseh |
|
Oil separator |
American Emerson, ALCO, Temprite |
|
Plate heat exchanger |
GEA, Xingsuneng, Guoxing |
|
press switch |
Denmark DANFOSS, Saginomiya |
|
Condenser |
Guangzhou Yongqiang, Klean Air |
|
Evaporator |
Yongqiang |
|
Dry filter |
Denmark DANFOSS, USA SPORLAN |
|
Capillary tube |
KOMEG |
|
Expansion valve |
Denmark DANFOSS, USA SPORLAN |
|
Magnetic valve |
Japan SAGLNOMLYA or Nickideu / Denmark DANFOS |
|
Controller |
KOMEG |
|
Residual current circuit breaker |
Taiwan SHIHLIN |
|
No-fuse switch |
French Schneider |
|
AC contactor |
Japan French Schneider |
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

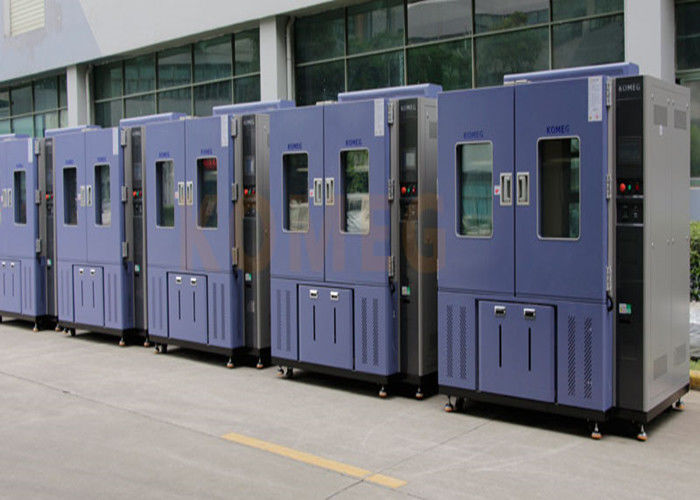

Photos show
