Product Details:
Payment & Shipping Terms:
|
Humidity Range: | 20~98%R.H | Controller: | LED Touch Screen |
---|---|---|---|
Working Volume: | 1500L | Temperature Uniformity: | ±2.0º C (with Empty Load) |
Compressor: | Danfoss Or Tecumseh Or Bock | Wiring Method: | AC 380±10% 50Hz ,3 Phase 4 Wires +Ground Wires |
Temperature Fluctuation: | ±0.2C | Temperature Uniformity: | ±1.5C |
Humidity Resolution: | 0.1%RH | Humidity Fluctuation: | ±0.5%RH |
High Light: | led light testing equipment,led testing instruments |

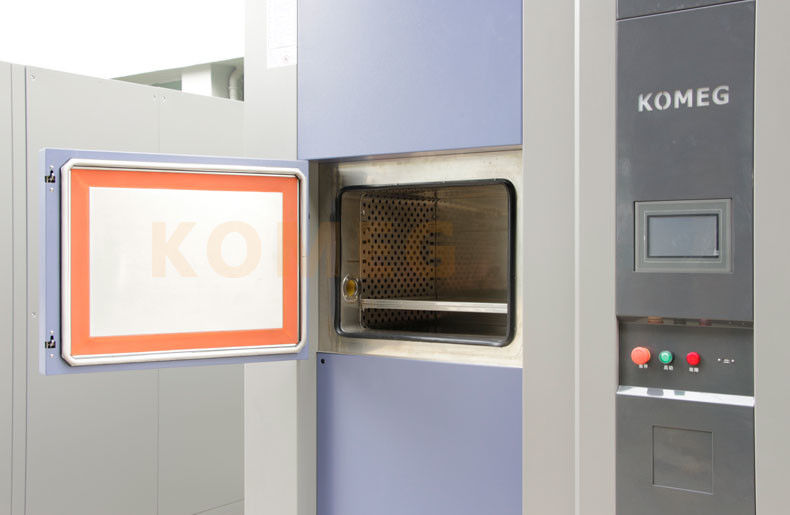

PCB and LED Resistance Extras Cold Thermal Cycle Testing Chamber Energy Saving
Product description :
The thermal cycle test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low-temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by a chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics. and other materials can be used as a basis to improve their products or reference.
Application:
Test material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace, and other products.
Specifications:
Model | KMH-1500L | ||||
1500L chamber volume | |||||
Temp. range | -40°C ~150°C | ||||
Display resolution | 0.1°C | ||||
Temperature stability | High±0.5°C, low ±1.0°C | ||||
Temperature uniformity | ±2.0°C | ||||
Heat uptime | -40°C ~+100°C, within 45 min | ||||
Pull downtime | +20°C ~-40°C, within 60 min | ||||
Interior Dimension(mm) | W 1500 × D 1000 × H 1000 mm | ||||
Exterior Dimension(mm) | About: W2010 x D1510 x H 2150 mm | ||||
Interior material | Stainless Steel Plate ( SUS 304) | ||||
Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | ||||
Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
Total power | 7KW(heater 3KW included) | ||||
Max current | 13.6A | ||||
Ambient Temp. | +5°C ~+35°C | ||||
Power Supply | AC 380V±10% 50Hz,3 phase 4 wires +Ground Wires | ||||
Weight | 420KG | ||||
Sight window size | 430 X 530mm | ||||
Sample holder | 2 pcs | ||||
Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
Safety device (standard) | No fuse breaker,overpressure, over heat&over current protect, over temp. | ||||
protect, overload protect for the blower, dry heat protect | |||||
Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
Refrigeration system | Air Cooled (Water Cooled is an option) | ||||
Hermetic compressor | |||||
Single-stage refrigeration system, | |||||
CFC-Free refrigerant(HFC-507/HFC-23) | |||||
Controller | 7-inch LCD Touch Screen panel | ||||
Operation model: Program or fixpoint running | |||||
Memory capacity :120programs,1200steps, | |||||
All repeat 999 cycles, part repeat 99 cycles | |||||
Note: 1. We reserve the right to change specifications without prior notice |
Features:
Standards Implemented and met :
●GB10592-89 Technical requirements for high and low-temperature test chamber
●GB2423.1-1989 Low-temperature test mode
●GB2423.2-1989 High-temperature test mode
●GJB150.3-1986 High-temperature test mode
●GJB150.4-1986 Low-temperature test mode
●GJB150.9-1986 Warm test method
Standard configuration :
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, overpressure,overheat and over current protection for compressor, Over temperature protection, overload protect of the blower, dry heat protection
Optional accessories :
●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier: R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected to the chamber
F. The energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
Minimum Order Qty: | 1 unit |
Price: | Negotiable |
Payment Terms: | T/T, negotiable |
Warranty | 12 months on parts (excluding the damages caused by natural disasters, abnormal power, improper operation, and maintenance, etc) |
Delivery Time: | 60 working days after received a 50% deposit |
Packaging Details: | Packed in carton firstly, and then reinforced with plywood case for outer packing |
Our Services
1, Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.
2, After-sales service
After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods, and even arrange work engineers on-site service.
3, the Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
KOMEG supplies you with the environmental test chamber with fast shipping time, competitive price, and good quality ! Contact us now!
● Features 1: Fast Lead Time, Provide an high-quality & reliable environmental chamber.
● Features 2: With Competitive Price, There much Top companies buy environmental chambers from us.
● Features 3: Good Quality Guarantee, The main parts we choose France Tecumseh, Germany , USA Copeland, Japan Sanyo…
● Features 4: 100% QC Check before shipment. There has 2 times check, during manufacture and before shipment.
● Features 5: Good Service System. There has a service team can help the customer via remote assistance by internet.
● Features 6: CE, ISO System. The environmental test chambers have got the CE, ISO system approval.
● Features 7: Accept OEM. ODM Orders. We accept to make your brand /logo on our environmental chambers.
● Features 8: Real Factory Guarantee. We are the real environmental test chambers manufacturer, It’s so important for a long term cooperation.
