Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber

Certification
Good quality Temperature Humidity Chamber for sales
Good quality Temperature Humidity Chamber for sales
Fast delivery and quality products.

—— Gozia

Friendly and pleasant cooperator, "I like the factory, I like the design, I like the workstyle"

—— Wagner

The design and quality impress me a lot.

—— Mr Yee

" A trustworthy supplier of climatic test chamber".

—— Denis

I'm Online Chat Now

Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber

China Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber supplier
Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber supplier Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber supplier Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber supplier

Large Image :  Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE approval
Model Number: ESS-408L-C3

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 35 day after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Temp Range: -40℃ ~ +150℃ Temp Deviation: ± 2.0℃
Temp Fluctuation: ± 0.5℃ Interior Material: Stainless Steel
Temp Regulation Methods: BTC Cooling Method: Water Cooled



Rapid Temperature Change Environmental stress screening (ESS) test chamber



OEM &ODM are welcome



Specifications



It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.



Model no

ESS-408L-C3

Interior volume

408L, different capacity as your requirements

interior dimension

W70XH75X D80CM

          Heat up rate

           From -40℃ ↑ +80℃ Nonline 3℃/min(No load )



Temp range

-40℃ - +150 ℃

Temp fluctuation

+-0.5℃

Cooling down time

From +80℃ down to -40℃ Nonline 3℃/min(No load )

Interior material

SUS304

          Heating

         High quality nickel-chromium alloy wire electric heaters,

        Non-contact control mode(SSR)

         Electric control box

      Total power circuit breaker, over-temperature protection.




Temperature controller



Sensor

High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω

Controller

Color touch screen controller with PID control

Display function

Temp and humidity setting (SV) The actual (PV) value is displayed directly;

Support executive program number, Paragraph, remaining time, number of cycles, running time display;

Program editing and graphical curve display;

Fixed point or program action status display;

7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen.

Control resolution

Temp: + 0.01℃;Humidity: + 0.1%;time: 0.01min

Setting range

Temp Condition:–100~200 ℃;

According to the temperature of the chamer to adjust the working range (upper limit +5 ℃, lower limit -5 ℃)

Humidity Condition:0~100 %RH

Operating mode

Programmable running, constant running

Program capacity

Running time up to 999999 h 59 m (also can be set to continue running without time limit);

Available program capacity: up to 269 groups, a total of 13450 paragraphs;

Usable memory capacity: 50 steps per group;

Repeatable commands: Up to 32000 cycles per command

Setting way

Man-machine dialogue mode, using touch input and control

Communication Interface

RS-232,RS-485 and Ethernet.

Data collection and curve display when connected with a computer

Can be used as monitoring and remote control system

Multi machines synchronization control available

U Disk Memory Card

1G-8G available for downloading historical curve and data, pluggable




For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18098281986

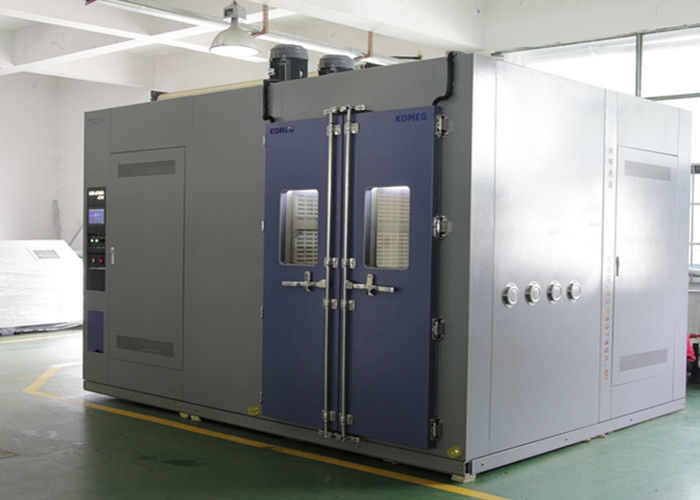

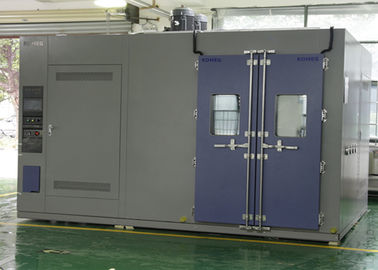

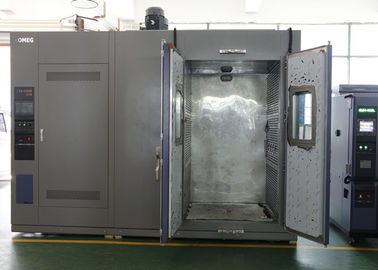

Photos show



Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber
