|Interior Dimension:||W 1200 × D 800 × H 500 Mm||External Dimension:||W 1700 × D 950 × H 1210 Mm|
|Power:||220V / 50HZ. 15KW||Test Room:||35℃±1℃|
|Test Room:||50℃±1℃||Air Pressure Barrels:||63℃±1℃|

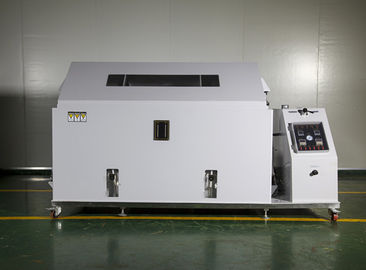

Economical Salt Spray Environmental Test Chamber for Corrosion Resistance
|Salt spray test machine is specifically designed for materials surface corrosion resistance testing, these materials are treated in kinds of paint, coating, plating, antirust oil treated, etc.; widely used in metal, electro, electronic, chemical, automotive, aviation, aerospace, telecommunications and other industries. Carrying out corrosion testing for the products of materials and coating, so as to analyze and evaluate the samples’ performance under specific environmental conditions of marine environment.|
|Ⅱ. Main Specifications|
W 1200 × D 800 × H 500 mm
W 1700 × D 950 × H 1210 mm
|2.1 Power||220V / 50HZ. 15KW|
|3.1 Box material||The inside and outside the box are made of high temperature and high humidity corrosive high grade A gray PVC (thickness 8 ~ mm), the use of advanced production technology with three-dimensional ring, welded, solid structure, never deformation, gorgeous, applicable to salt spray, copper acetate and other testing specifications.|
|3.2 Reagent bottle||Conceal one-piece reagent bottle, easy cleanout and operation.|
|3.3Air pressure barrel||It is made of SUS304 # stainless steel, refined tank structure design, high temperature, high humidity, high pressure, high corrosiveness resistant., and after several years of accumulated experience, successfully solved the short time water shortage of the general salt spray machine technical problems, unique internal design of the pressure tank, so that water shortage in pressure tank is no longer your worry and troubles. It is in a leading position in the industry.|
|3.4Test sample holder||A "gray" PVC material is refined into a "V" shaped strip. The full set is made of molds. The strength is higher. It is matched with tempered glass straight 10mm "O" strip to ensure that the product 15 ° -30 ° angle of the test sample rack using flat indexing, can adjust the angle, four fog uniform, consistent by the fog, the test results are accurate, the number of test samples placed more.|
|3.5 Chamber cover||Using a 5mm thick transparent PVC plate with high toughness, a 100 degree ridge transparent cover was designed by physical bending method, so that dew droplets remaining on the cover slid along the cover wall to the sealing groove not fall the test products.|
|3.6 Other Function||
A. With self-detection and other advanced features, is a great choice for your multiplier.
B. All-digital circuit design, accurate temperature control, use high-quality imported electrical materials, reasonable wiring design, long life, test function is complete.
C. With power outage memory function, so that the original time after the call to complete the remaining time to complete the test Inspection work, with double over-temperature protection, water level warning, to ensure safe use.
D. Spray and stop fog time can be set separately for circulating intermittent spray.
E. Fog seal tank using environmentally friendly water sealing, to prevent mist leakage.
F. Spray tower with conical disperser, with a guided fog, adjust the fog and even falling fog, etc.
G. The instrument adopts ergonomic design, beautiful appearance, easy operation.
|According to the standard parameter of JIS, ASTM, CNS, GB.|
salt spray test: NSS, ACSS
Air pressure barrels:47℃±1℃
② Corrosion resistance test: CASS
Air pressure barrels: 63℃±1℃
|4.1 Air supply system||Air pressure is two-stage adjustment, the first is roughly adjustment 2 Kg/cm2, import air filter with the function of water draining, the second is accurate adjustment 1Kg/cm2,1/4 pressure gage, show precision and accuracy.|
4.2 Mist spray pattern
Knut principle absorb the salt water and then atomization, fogging degree is on average, no block and crystal phenomenon absolutely, make sure the test proceed continuously.
|4.3 Heating system||Adopt direct heating way, fast rate of temperature increase so reduce the standby time, when reach the temperature, automatic shift temperature constant state, accuracy temperature, low power consumption. Pure titanium heating tube, resistance to acid and alkali corrosion, overlength working life.|
|4.4 Control system:||
|4. 5 Safety Protection||Laboratory pressure saturation tank heating tank with liquid expansion safety temperature controller 0 ~ 120 ℃ (Italy EGO). Automatic, manual two water systems, automatic or manual pressure bucket, laboratory water level, to prevent water damage to ultra-high temperature instruments.|
4.6 Safety protection device:
|4.7 Working principle||Knut principle draws brine and atomizes it. The degree of atomization is uniform without clogging the crystals. This ensures that the test is continuously carried out and the compressed air is moistened by the bubble column leading to the nozzle. The nozzle will corrode the solution and air Atomized into a corrosive gas mist, the heater inside the box to keep the temperature inside.|
|4.8Standard installation||1:V type/O type Support 1 set|
|2: Hopper 2 pcs|
|3: Collector 2 pcs|
|4: Glass nozzles 1 pcs|
|5: Automatic Defog function 1 set|
|6: Spray tower 1 set|
|7: Reagent sodium chloride(500g/bottle) 2bottle|
|8: Operating manual 1 set|
|9: Plastic rust-proof barrels(5Lcapacity) 1 set|
|10: Automatic filling water 1 set|
1. Power Supply:220V / 50HZ. 15KW
2.Operating ambient temperature:5～30℃
3. Using water quality:
(1).Neutral test fluid mixing——distilled water(pure water)(The HP value should be 6.5 ~ 7.2)
(2). Acid test solution deployment - distilled water (pure water) (the HP value should be between 3.0 to 3.3)
(3) The rest of the water - tap water
4.Air pressure setting
(2). Air compressor surge tank filter——2.0～2.5kgf/ cm
5.Installed at the edge of the window, be helpful for the exhaust, drainage
|4.10Easily damaged parts||Salt spray nozzle, meter measuring cylinder|
|4.11Consumables||Sodium chloride, purified water and tap water|
