|Cooling Mode:||Water Cooled||Heater:||Iron-chrome Wire Heater|
|Compressor:||Semi-Hermetic Compressor||Controllor:||Touch Screen Programmable Controllor|
|Interior Material:||Stainless Steel(SUS04)||Exterior Material:||Baked Painting Steel Or Stainless Steel(SUS04)|
Environmental Stress Screening Chambers,
environmental testing chambers

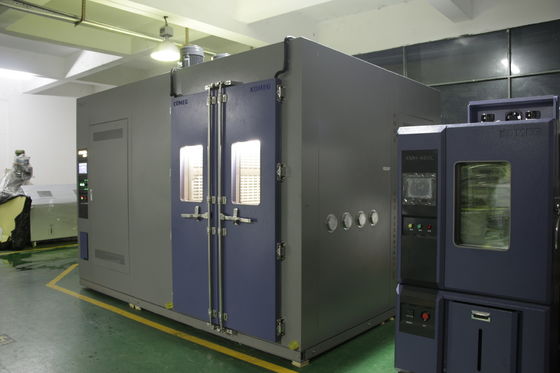

Double door stainless steel 2765L rapid temperature change testing chambe
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and
materials under the conditions of high and low temperature and high temperature and humidity. For
quality and reliability test of simulating temperature and humidity changes in electrical, electronic,
mechanical and other products, parts and materials.
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature
setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to
ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution.
|Performance||Temp.range||-40℃ ～ +150℃|
|Rapid Temp Chang||Rapid Temp Change+80℃～-40℃
Full Linear Control 3℃/min,Rapid Temp Change-40℃～+80℃
Full Linear Control 3℃/min,
|Temp.regulating methods||BTC methods|
|Material Science||Interior material||Stainless Steel (SUS304)|
|Exterior material||Baked Painting Steel Or Stainless steel(SUS304)|
|Insulation material||Rigid polyurethane Foam|
|Refrigeration system||Refrigerator||cascade refrigeration system|
|Cooling Mode||Water Cooled|
|Heater||Iron-chrome wire heater|
|Door window||Glass incorporating heat generator|
|Temp sensor||Pt-100 Platinum resistance|
|Controller||Touch Screen Programmable Controller|
|Safety device||Over protection,over-heat,over-current protection for compressor,over-temperature protection,over-load protection for blower,hydraulic and lack of water protection,leakage protection|
|Standard configuration||Observation window,Cable port,(Ø50mm,1piece for both left and right side),baffle(2sets),chamber lamp|
|Select accessories||RS-232C,recorder,special cable port,special specimen holder,additional baffle|
|Power||AC 380V/50HZ 3phase4wires+Ground wires|
Standards Implemented and Met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched
first, then use strong plywood case for easyload and transport, and to keep the chambers from potential
crash or impact.
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
