Product Details:
Payment & Shipping Terms:
|
| Interior Material: | Stainless Steel Plate (SUS304 ) | Exterior Material: | Baked Painting Steel Or Stainless Steel |
|---|---|---|---|
| Insulation Material: | Rigid Polyurethane Foam | Door Size: | Single And Double Wing |
| Workspace Volume: | W 2100 × H 2100 ×D 2100 Mm | Humidity Range: | 10%-98% |
| High Light: | walk in humidity chamber,walk in climatic chamber |
||

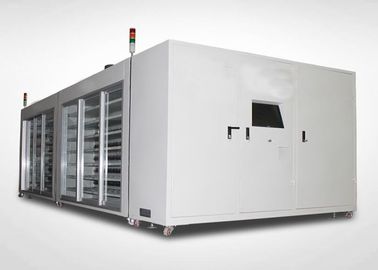

Accelerated Aging Test Burn In Room/ Walk-in Modular Lab Test equipment For Monitors
OEM&ODM are welcome , kindly contact:anna@komegtech.com
Applications
The aging room, also called the burning room, is a device that simulates a high-temperature, harsh
environment test for high-performance electronic products. It is an important laboratory equipment for
improving the stability and reliability of products, and is a product that improves the quality and
competitiveness of production companies. Important production processes, the device is widely used in
power electronics, computers, communications, bio-pharmaceuticals, chemical and other fields.
Tehnical specification
|
Temperature range |
40 ～ +70℃
|
|
Temp Deviation |
≦ ± 2.0℃
|
|
Temp Fluctuation |
±0.5℃
|
|
Temp Uniformity |
±2.0℃
|
|
Burner trolley |
Easy to paint Size, build height and width are customized according to customer's
actual requirements,
easy to take and put, the trolley can be easily pushed and removed, and the product
can be easily loaded and unloaded |
|
Door |
Observation window
|
|
Control mode |
PLC+PID |
|
Humidity uniformity |
±3.0％RH(No load)
|
|
Humidity fluctuation |
±2.0％RH
|
|
Chamber size |
Exterior size: W 5150 × H 4150 ×D 2575 mm
Working interior : W 5000 × H 4000 × D 2500 mm (about) |
Other specification
|
Door |
double wing door, left open. The size: W900*H2000mm
|
|
Observation window |
With observation window(according to design)
|
|
Machine load-bearing |
≧500kg
|
|
Refrigerant |
Environmental-friendly refrigerant: R404A
|
|
Condenser |
Shell and Tube condenser(air -cooled)
|
|
Display resolution |
Temperature: + 0.01℃; Humidity: + 0.1%; Time: 0.01min
|
|
Setting range |
Temperature condition:-100~200℃
Temperature can be adjusted based on the working temperature of the equipment
upper limit:+5℃, the lower limit:-5℃)
Humidity condition:0～100 %RH |
|
Operating mode |
Programmable running, constant running
|
|
USB function |
1G-8G available for downloading historical curve and data, control
system parameters, pluggable |
|
Surrounding Environment |
5 ～ 35℃ |
Features
6.2 Control System Integration Aging Function Design. Design function control cabinet, time required for
aging, temperature, all kinds of operation switch can be operated on a control panel; the panel design of the
panel is beautiful and easy to operate.
6.3 Aging process can be fully automatic control, with some abnormal self-processing functions, so that the
operation is automated and simple.
6.4 Has multiple protection features, safe and reliable.
a. Electric anti-dry burning, when the fan fails or the temperature in the air duct is too high, the power of the
circulating system will be automatically cut off, and the alarm will alarm.
b. The linkage design of electric heating and fan, when the fan fails to start, the heater can not be started
separately. At the time of closing, the electric heat and the circulation fan are closed at the same time to
prevent the electric heating from damage due to dry burning.
c. Heater connection adopts high temperature resistant wire, 300OC does not burn.
d. Indoor installation of explosion-proof lighting, increase lamp life and prevent bulb explosion.
e. The use of flame-retardant insulation materials in the library, good insulation performance and high safety factor.
f. Over-temperature sound and light alarm function: In the over-temperature condition during the aging
process, the red light is on and the buzzer sounds.
g. Smoke alarm function: Smoke alarm is installed in the room to prevent the product from burning and
alarm in the process of aging products. The alarm box automatically shuts down the power of the aging
room.
Standards Implemented and met
GB-2423. 1-89(IEC68-2-1) Test A: Low Temperature Test
GB-2423. 2-89(IEC68-2-2) Test B: High Temperature Test
GJB360. 8-87(MIL-STD．202F) High Temperature Operating Life Test
GBJl50. 3(MIL-STD-810D) High Temperature Test
GJBl50. 4(MIL-STD-810D) Low Temperature Test
GB2423. 3-93(IEC68-2-3) Test Ca: method for steady-state damp heat test
GB2423. 4-93(IEC68-2—30) Test Db: Damp Heat Alternative Test
GJBl50. 9-93(MIL-STD-810D) Damp Heat Test

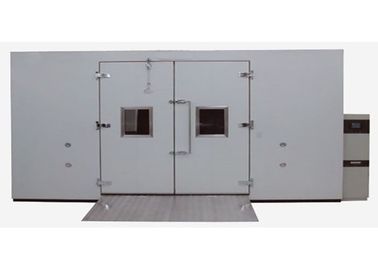

Photos show
