Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | -40℃ ～ +130℃（No Light），+60℃ ～ +85℃（Illuminated）， | Temp. Deviation: | ≦±2.0℃（No Load，No Light） |
|---|---|---|---|
| Temp.Uniformity: | ≦2.0℃（No Load，No Light） | Humidity Range: | 20%～90%RH |
| High Light: | walk in humidity chamber,walk in climatic chamber |
||

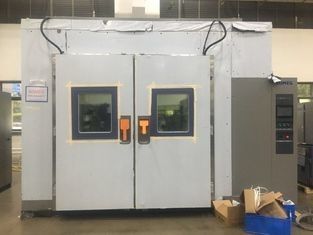

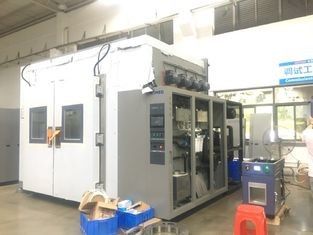

Laboratory double door air-cooled 15L walk-in chamber with lighting device
A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished
products in electrical and electronics, aerospace, batteries and automobiles, etc. KOMEG manufactures
both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature
chamber or a temperature humidity chamber.
The KMHW-Series walk-in temperature and climate test chambers are especially developed for large test
specimens. Size and design are optimal loading of test specimens. The modular construction and
variability in size and equipment is ideally for specific application.
.
Features
● GB-2423．1-2008 (IEC68-2-1) Test A: Low Temperature Test
● GB-2423．2-2008 (IEC68-2-2) Test B: High Temperature Test
● GJB360. 8-87(MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3(MIL-STD-810D) High Temperature Test
● GJBl50. 4(MIL-STD-810D) Low Temperature Test
● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93(IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93(MIL-STD-810D) Damp Heat Test
Specifications
|
IV. Main Technical Parameters (Performance: Air-cooled, Room temperature +25°C, no load) |
||||
| 1.Temperature range | -40℃ ～ +130℃(No light),+60℃ ～ +85℃(Illuminated), | |||
| 2. Temp. Deviation | ≦±2.0℃(No load,No light) | |||
| 3.Temp.Fluctuation | ±0.5℃(No load,No light), ≦±2.0℃(No load) | |||
| 4. Temp.Uniformity | ≦2.0℃(No load,No light) | |||
| 5. Humidity range | 20%～90%RH | |||
| 6.Temperature and humidity range |
|
|||
| 7.Humidity deviation |
±3.0％RH(≧75％RH) ±5.0％RH(﹤75％RH) |
|||
| 8.Humidity Uniformity | ±3.0％RH | |||
| 9.Humidity fluctuation | ±2.0％RH | |||
| 10. Air exchange rate | The amount of air per hour is about 1 or 2 times. | |||
| 11.Cleanliness level | Cleanliness level ISO 5 (Use environmental cleanliness level :ISO 6) | |||
| Temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | ||||
| Ⅴ. Chamber Structure (on-site installation) | ||||
| 1. Chamber size |
Workspace volume: W 3000 × H 2500 × D 2000 mm Exterior size: W 4500 × H 2900 × D 3500mm (The overall size is not greater than W 4500 × H 3200 × D 3600mm |
|||
| 2. Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation material: 50mm rigid polyurethane foam insulation + glass fiber. (5 surface insulation, no floor) |
|||
| 3. Door | Double door, Door size (1000+1000)*H2000 mm, including window (W460XH560mm). | |||
| 4. Lighting device | Moisture-proof lighting with explosion-proof lampshade. | |||
| 5.Electric control box | Total power circuit breaker, over-temperature protection. | |||
| 6.Pressure balance | The test chamber has a pressure balance port 1 to prevent the pressure in the chamber from being too high. | |||
| 7. Control method | Forced circulation ventilation, Balanced thermostat conditioning (BTHC). | |||
| 8. Heating | High-quality nickel-chromium alloy wire heater, non-contact control mode (SSR). | |||
| 9. Humidifying | Stainless steel corrosion resistance heat evaporation humidification. | |||
| 10.Pure water machine | Pure water machine type 1, please provide 1 ~ 2kg/cm2 tap water source. | |||
| 11.Humidity Sensor | Electronic humidity sensor, no need to replace the wet cloth. | |||
| 12.Condensate outlet | Equipped with studio condensate and unit condensate drain holes. | |||
| 13.High efficiency filter | HEPA * 1, High efficiency 99.99% | |||
| 14.Ventilation fan | High static pressure ventilation fan *1(New air inlet with medium HEPA *1, High efficiency 85%) | |||
| 15.Differential pressure gaug | Differential pressure gaug 0 – 50 mmH2O *1 | |||
Product details
Packaging:
Chambers are covered with air bubble film before put them into the strong plywoodcase, which not only
has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic,
odorless, moisture corrosion, crash-proof, etc
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
Company introduction:
Since 1990, manufacturers of custom environmental chambers and standard environmental chambers,
Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude
chambers, temperature chambers, temperature and humidity chambers, environmental test chamber
manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar
panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in
chambers, laboratory test chambers, environment test rooms.
