Product Details:
Payment & Shipping Terms:
|
| Interior Size: | W 5000 Mm*H 5000 Mm*D 5000 Mm | Exterior Size: | W 5300 Mm*H 5600 Mm*D 7000 Mm |
|---|---|---|---|
| Temperature Range: | -60℃ ～ +60℃ | Temperature Fluctuation: | ≦±0.5℃ |
| Temperature Uniformity: | ≦2.0℃ | Temperature Deviation: | ≦±2.0℃ |
| Humidity Sensor: | Electronic Humidity Sensor No Need To Change The Wet Cloth | Compressor: | Copeland Compressor Or Compressor |
| High Light: | walk in environmental chamber,walk in climatic chamber |
||

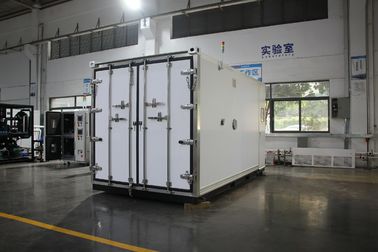

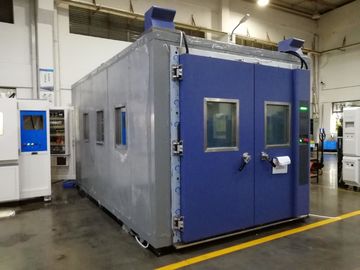

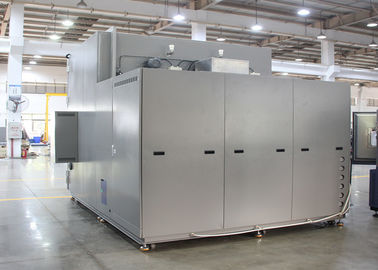

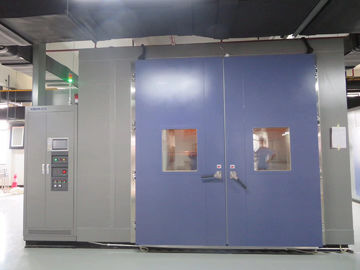

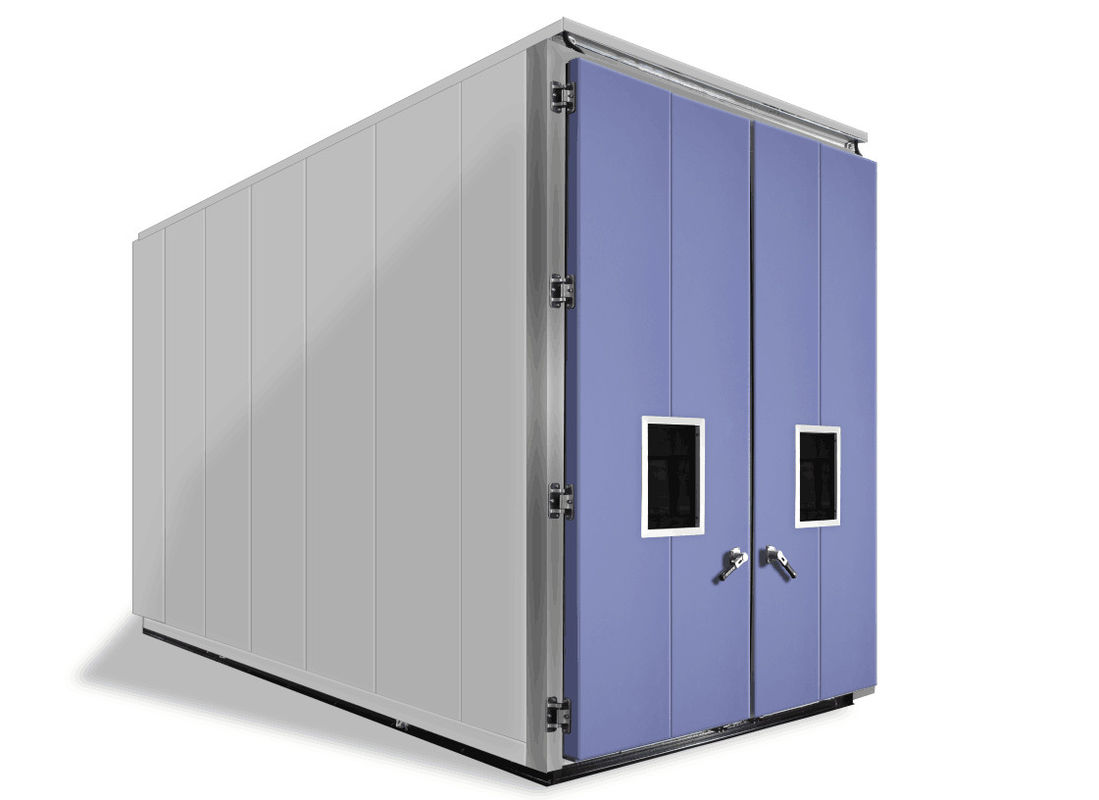

Specification for Walk In Climatic Test Chamber KM...
Industrial Large Capacity Drive Programmable Climatic Test Chamber for Testing Transformer
OEM&ODM are welcome , more information ,kindly contact :us@komegtech.com anna@komegtech.com
Application
KOMEG’s Walk-In Constant Temperature Humidity Stability Climatic Test Chamber is perfectly meet the large size test application that requires high temperature and high humidity. The chamber is constructed with structural steel, the steady structure able to test the large components and products. The various optional function is available for different test standard and requirement.
Standard Compliance
1. IEC68-2-1 (GB/T2423.1-2008)
2. IEC68-2-2 (GB/T2423.2-2008)
3. IEC68-2-3 (GB/T2423.3-2006)
4. IEC68-2-30 (GB/T2423.4-2008)
5. IEC68-2-14 (GB/T2423.22-2008)
6. MIL-STD-810D (GJB150.3A-2009)
7. MIL-STD-810D (GJB150..4A-2009)
8. MIL-STD-810D (GJB150.9A-2009)
Product specification
| Model | KMHW-6M | KMHW-8M | KMHW-15M | KMHW-30M | KMHW-80M |
|
Test Space W x H x D (mm) |
2000*2000*1500 | 2000*2000*2000 | 3000*2200*2500 | 5000*2000*3000 | 4000*2500*8000 |
|
External Dimension W x H x D (mm) |
3350*2280*1800 | 3350*2280*2300 | 4350*2480*2800 | 5200*2280*4350 | 4200*2780*9700 |
Performance parameters
| Temperature Range | A:0~90℃ B:-20~90℃ C:-40~90℃ D: -70~90℃ |
| Humidity Range | 20%RH-98%RH; Low humidity: Maximum 5%R.H. |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Deviation | ≤±2℃ |
| Temperature Uniformity | ≤±2℃ |
| Humidity Fluctuation | ≤±2.5% |
| Humidity Deviation | ≤+2/-3%R.H. (when humidity >75%RH), ≤±5RH% (when humidity <75%RH) |
| Heating Rate | Approx 1~ 3℃/mins,average non-linear ,no load |
| Cooling Rate | Approx 0.5~ 1℃/ mins,average non-linear ,no load |
| Temperature Overshoot | ≤±2℃ |
| Internal Material | 1.0mm thick SUS#304 high &low temperature resistance stainless steel. |
| External Material | High-quality anti-corrosion electrolytic board, surface electrostatic powder baking paint, KOEMG standard color |
Features
1. Energy-efficient technology, more stable, durable longevity.
2. Steel structure, Stainless steel interior cabinet, easy to clean.
3. Test data logging output with a USB memory stick.
4. RS485 and Ethernet remote control.
5. Alarm notification via phone available.
6. Programmable
