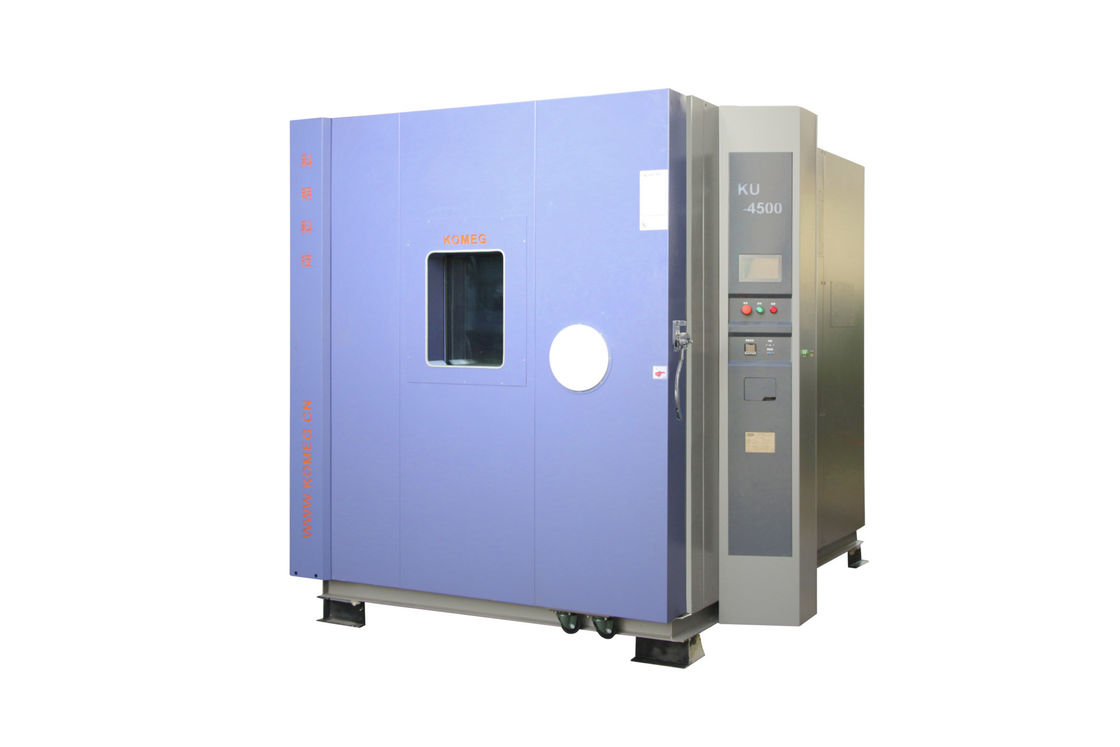

Environmental Simulation Altitude Test Chamber For Aerocraft Components

China Environmental Simulation Altitude Test Chamber For Aerocraft Components supplier
Environmental Simulation Altitude Test Chamber For Aerocraft Components supplier Environmental Simulation Altitude Test Chamber For Aerocraft Components supplier

Large Image :  Environmental Simulation Altitude Test Chamber For Aerocraft Components

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KU-4500S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15working days after received your payment
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Product Name: High Altitude Simulation Test Chamber Application: Steady And Transient State Testing
Emperature Range: -70℃~+150℃ Pressure Constancy: When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, When≤4kPa, ±0.1kPa
Depressurization Rate: Constant Pressure~1kPa≤30mins(Normal Temp)

Environmental Simulation Altitude Test Chamber for Aerocraft Components Aeroplane







Altitude Test Chamber Overview



KOMEG high altitude simulation test Chamber is considerably more cost-effective than other brand altitude test chambers, which have gained the attention of the racing industries, heavy duty diesel and many automotive original equipment manufacturers and tier suppliers.

High Altitude Simulation Test Chambers have been test for the instruments and meters, electrical products, materials, spare parts, equipments, etc at a low pressure, high temperature, low temperature, under the effect of single factor or multiple factors at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen. Mainly used in aviation, aerospace, information, electronics and other industries.





Applications for the Altitude Simulation System:

Gasoline Engine R&D

Diesel Engine R&D

Cold Start Testing

Fuel Economy Testing

Aircraft Engine R&D

Induction System R&D

Power Testing

Turbo Charger and Aftercooler R&D

Emissions Testing

Steady and Transient State Testing



Altitude chamber working principle

Environmental Simulation Altitude Test Chamber For Aerocraft Components



Temperature and pressure range chart

Environmental Simulation Altitude Test Chamber For Aerocraft Components

Temperature and humidity range chart

Environmental Simulation Altitude Test Chamber For Aerocraft Components



Environmental Simulation Altitude Test Chamber For Aerocraft Components



Environmental Simulation Altitude Test Chamber For Aerocraft Components



Features



●Temperature range from -70 to 150℃

●Altitude range ground to 100,000 feet

●External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
●Adopts international brand of imported parts for cooling system to improve operation reliability
●High precision and stable performance with touch screen controller, friendly Man-Machine interface.
●Multiple layers of safety device to easy maintenance.

●Viewing window and cable ports available

●Vacuum pump sized for climb/dive rate required by application





Standards Implement and Met

GB11159-89  GB10590-89  GB15091-89

GB/T2423.25-1992  GB/T2423.26-1992  GJB150.0-86



pecifications

Model

KU-1000S

Inner Size (D*W*H)mm

1000D*1000W*1000H

Capacity(KW)

15

Chamber Volume(L)

100

Performance

Temp range

-70ºC~+150ºC

Temp constancy

±0.5%

Temp deviation

≥100ºC, ±3.0ºC(at constant pressure with empty load)

<100ºC, ±2.0ºC(at constant pressure with empty load)

Cooling rate

0.7ºC~1.0ºC/min(Overall average)

Pressure range

Constant pressure ~1kPa

Pressure constancy

When ≥40kPa, ±2kPa,     4kPa~40pKa  ±0.5kPa,   when≤4kPa, ±0.1kPa

Depressurization rate

Constant pressure~1kPa≤30mins(Normal temp)

Pressure recovery rate

10kPa/Min(adjustable)

Material

Exterior material

Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate

Interior material

Stainless steel(SUS304)

Pressurized parts

High quality steel plate(Rust proof & Plastic spray treated)

Insulation material

High quality glass wool

Cooling System

Compressor

Semi-Hermetic Compressor

Cooling Mode

Water cooled

Temp regulating method

Balanced Temperature & Humidity Control System(BTHC)

Pump

Rotary vane type vacuum pump

Heater

Iron-chrome wire heater

Sight window

Circular viewing glass incorporating heat generator

Temp Sensor

Pt-100

Controller

Touch Screen Controller

Safety Devices

Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower,Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm

Standard Accessory

Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2

Power

AC380V/50Hz, 3Phase 5 wires+ Ground Wire.

Note: 1. We reserve the right to change specifications without prior notice;     2. Customized sizes and configurations available
