| Product Name: | High Altitude Simulation Test Chamber | Application: | Steady And Transient State Testing |
|---|---|---|---|
| Exterior Material: | Baked Painting Steel | Interior Material: | Stainless Steel |
| Temp Range: | -70℃ ～ +150℃ | Pressure Range: | 760～1mmHg(Torr) |
| High Light: | high altitude chamber,altitude testing chamber |
||
125L Air Cooled Altitude Test Chamber With Environmental-friendly refrigerant
Applications
High and low temperature low pressure is suitable for the product (machine), spare parts, materials of
high temperature, low temperature, high, high and low temperature cycling test and temperature level
test, high temperature test, the test box can be used to test the heat of test samples and non heat
dissipating specimens. For the test of heat dissipation test sample, the radiating power of the altitude low
pressure test chamber can not exceed that of the test box. Because of the dynamic value of refrigerating
volume, it changes with the change of temperature.
Features
● Temperature range from -70 to 170℃
● Altitude range ground to 100,000 feet
● External pressure type box body structure and stainless steel tank design, rational air circulation
system and scientific layout of heating, refrigerating system.
● Adopts international brand of imported parts for cooling system to improve operation reliability
● High precision and stable performance with touch screen controller, friendly Man-Machine interface.
● Multiple layers of safety device to easy maintenance.
● Viewing window and cable ports available
● Vacuum pump sized for climb/dive rate required by application
Specifications
| IV. Specification (Performance: air cooled, water temperature at 25℃, no load) | |
| 1. Temperature range | -70℃～+150℃ |
| 2.Temperature fluctuation | ±0.5℃(normal pressure, no load) |
| 3.Temperature deviation | ≦±2.0℃(normal pressure, no load) |
| 4.Temperature uniformity | ±2.0℃(normal pressure, no load) |
| 5.Heating up rate |
a.From +20℃ ～ +150℃ 60min(no load,normal pressure) |
| 6.Cooling rate |
a .From +20℃～ -60℃ 60min(no load,normal pressure) |
| 7.Pressure range | 760～1mmHg(Torr) |
| 8.Pressure deviation |
≦ 2KPa (≧40 KPa ) |
| 9.Pressure-temperature control range |
|
| 10.Pressure down time | 100KPa to 1KPa within 30min |
Main Features of our high altitude test chamber:
1. 5.6" LCD touch screen color controller, Korea Samvontech brand.
2. 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles.
3. PID+SSR / SCR controller.
4. RS-232 / RS-485 / USB / Ethernet / RJ45 communication interface.
5. Pressure range: atmosphere pressure to 0.5KPa
6. Inner cable port of 50mm/100 mm can meet the requiremnt of power- on test for user's product.
7. SUS#304 stainless steel plate inner chamber.
8.1 year free parts warranty, extended warranty is also available.
Environmental test chamber Standard

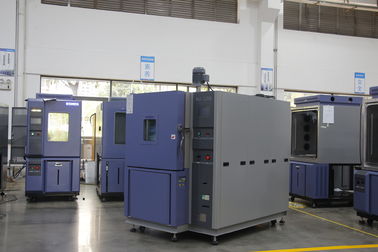

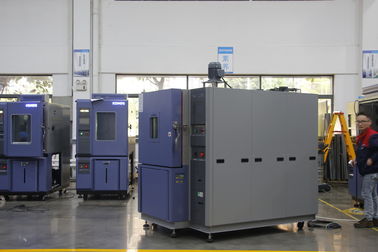

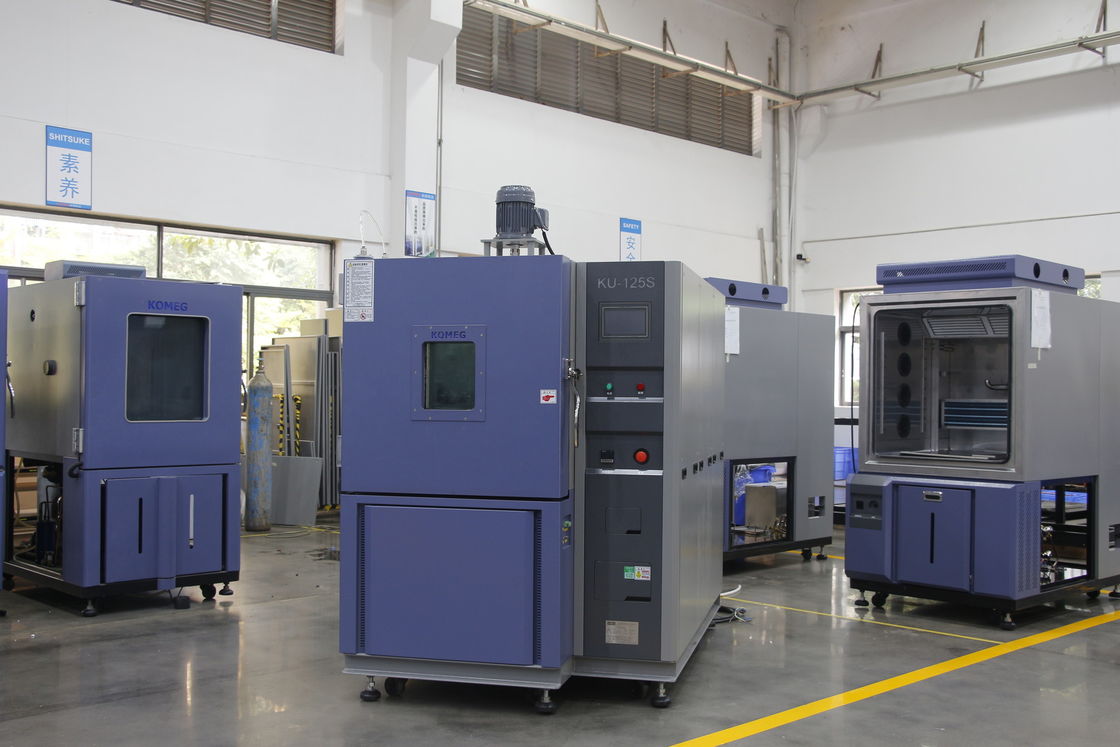

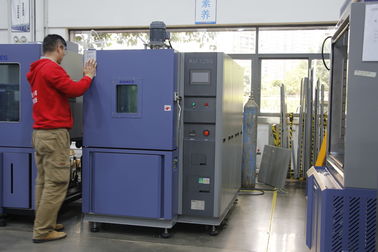

Prouduct Display
Packing and Shipment:
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48
hours and solution provide within 3 working days. We can offer operation video and English operation
muanual. We can provide video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
