Temperature Altitude Test Chamer With Explosion Proof And Safety Device 512L

Temperature Altitude  Test Chamer With Explosion Proof And Safety Device 512L
Temperature Altitude  Test Chamer With Explosion Proof And Safety Device 512L
video play

Large Image :  Temperature Altitude Test Chamer With Explosion Proof And Safety Device 512L

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE/ROHS/FCC/
Model Number: KU-512S
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
Temp Range: -70℃~+100℃ Temp Uniformity: ≦±2.0℃(Normal Pressure、no Load)
Temp Deviation: ±2.0℃(Normal Pressure、no Load) Temp Fluctuation: ≦±0.5℃(Normal Pressure、no Load)
Pressure Deviation: ±2.0KPa(>25KPa) ±0.5KPa(2KPa~25KPa) Power: AC 3ψ4W 380V 50Hz (R, S, T, N Plus Ground) (voltage Fluctuation ≦ ± 10%)
High Light:

high altitude chamber

,

portable altitude chamber

512LTemperature altitude testing chamer with explosion proof and safety device




Applications


High and low temperature low pressure is suitable for the product (machine), spare parts, materials of



high temperature, low temperature, high, high and low temperature cycling test and temperature level



test, high temperature test, the test box can be used to test the heat of test samples and non heat



dissipating specimens. For the test of heat dissipation test sample, the radiating power of the altitude low



pressure test chamber can not exceed that of the test box. Because of the dynamic value of refrigerating



volume, it changes with the change of temperature.





 Specifications



1. Temperature
1.Temp range -70℃~+100℃
2.Temp Uniformity ≦±2.0℃(Normal pressure,no load)
3. Temp Deviation ±2.0℃(Normal pressure,no load)
4. Temp Fluctuation ≦±0.5℃(Normal pressure,no load)
5. Heating up time -40℃ → +85℃ Nonlinear 5℃/min (Normal pressure,no load)(KOMEG can meet customer requirements C.Better)
6. Cooling time +85℃ → -40℃ Nonlinear 5℃/min (Normal pressure,no load)(KOMEG can meet customer requirements C.Better)
3. Pressure
1. Pressure range 10KPa~101.3KPa(Relative height of 40,000 feet or about 12,192 meters)
2. Pressure deviation

±2.0KPa(>25KPa)

±0.5KPa(2KPa~25KPa)

3. Depressurization time

Normal pressure to 10KPa within 30min(Normal Temp, Inner chamber dryin)

(KOMEG can meet customer requirements D.Better)

4. pressure rate Less than or equal to 10 Kpa/min (manual pressure relief)
.Chamber Structure
1. Interior Chamber size W 800 × H800 × D 800mm (KOMEG can meet customer requirements a.Better)
2. Exterior chamber size W 1610 × H 1890 × D 2550 mm
3. Wall material high-quality carbon steel with static color spray
4 Inner wall material Import advanced SUS304 # matte stainless steel plate
5 Insulated Heating material Rigid polyurethane foam insulation layer + glass fiber
6. Door

Single door,Open left,with window(W 210×H 270 mm), explosion-proof handle, Heating wire was installed at the door frames to prevent condensation at low temperatures.

Two explosion-protected chains are added on both sides of the box door. The chain is longer. When the box is opened, it can be opened a bit, letting Quick release of internal air pressure, but no pop.

7. Observation window

With 1 set 210 × 270mm (width × height) observation window,Glass enclosed stainless steel protective net, to prevent the explosion when flying glass (can not guarantee absolute safety).

8. Transmission shaft

Motor drive shaft: There is a magnetic fluid drive shaft * 1 on the left side of the machine, and the rated torque is N10Nm.

The inner and outer boxes have a shaft length of 50 mm and a shaft diameter ofФ=12 mm. Both the inner and outer box shafts are designed as D-axis structures.,Convenient to fix,Milling two symmetry planes on each of the two axes,Single plane depth is 1.5mm,

Plane and D-axis end plane distance 5mm,The width of the plane (the length in the direction of the axis) is 10 mm.

9. Manual inflation valve Manual inflation valve *1 for manual inflation during vacuum power failure, restore the pressure inside the box to open the door.
10. Air heater inside the chamber Fin heat pipe type stainless steel electric heater
11. Heater control mode SSR (solid state relay) contactless equal period pulse width modulation
12. Vacuum pump VD301 ULVAC
13. Vacuum sensor

Model no :UNIK 5072 (United states GE)

Measuring range:0〜200KPa

Comprehensive accuracy:±0.2﹪FS.BSL

Output:4〜20mA

Pressure interface:G1/4 internal screw thread




Standards Implement and Met


GB/T10589-1989Technical conditions for low temperature testing room



GB/T10586-1989Technical conditions of hot and humid testing room



GB/T10592-1989Temperature attitude Testing room





Prouduct Display

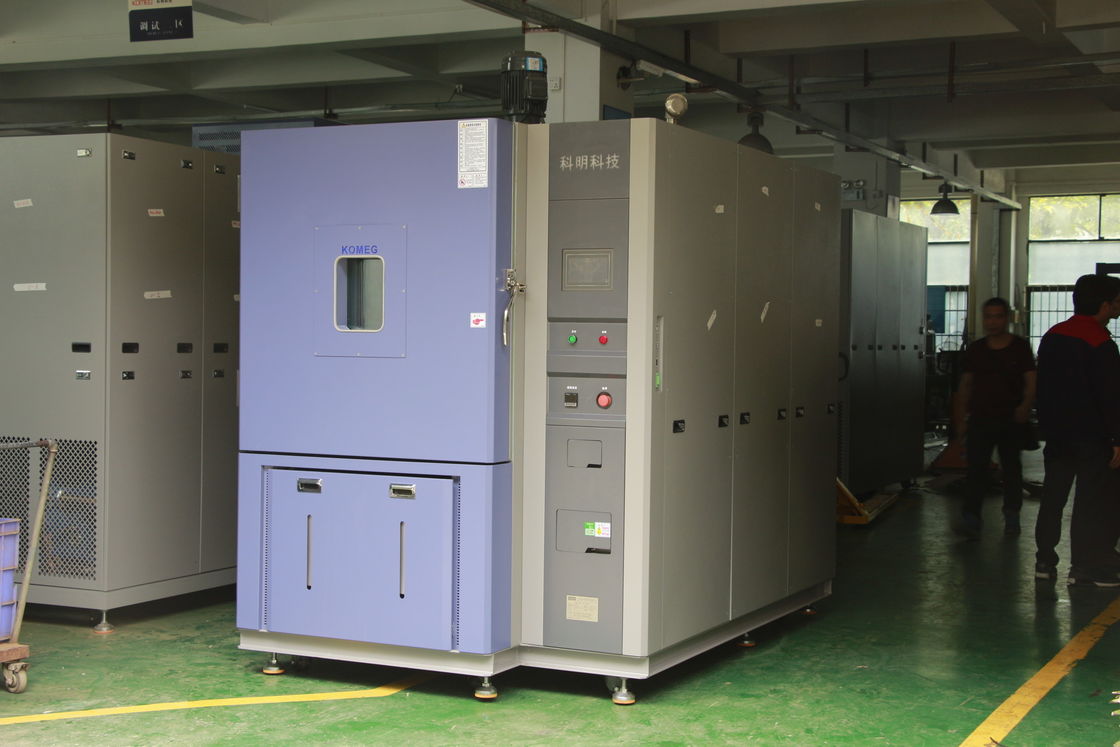

Temperature Altitude  Test Chamer With Explosion Proof And Safety Device 512L 0





Packing and Shipment:



(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Temperature Altitude  Test Chamer With Explosion Proof And Safety Device 512L 1


Pre-sales service

1) More than 20 years manufacturer experience and 8 years export experience.

2) Acceptable customization for all kinds of special specification products.

3) We value very inquiry sent to us, ensure quick and competitive offer.

4) We put your order into our tight production schedule,ensure your punctual delivery time.

5) We are a sales team, with more than 4 years experience, more professional and reliable.

6) Welcome to view our factory at any moment .

After-sales service

1) We deal with your complains within 24 hours.

2) Training how to install the machine, training how to use the machine.

3) Engineers available to service machinery overseas.

4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be

dedicated to provide high quality service and products for you.
