Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening

China Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening supplier
Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening supplier Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening supplier

Large Image :  Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE
Model Number: ESS-800S-SC20

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 30 day after confirm the order
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 100pcs /day
Contact Now
Detailed Product Description
Humidity Constancy: +-0.5ºC Cooling Mode: Water Cooled
Exterior Material: Baked Painting Steel Temperature Range: -70℃~+150℃
Color: Bule

       Rapid-rate Temp Change Test Chamber (Environmental Stress Screening)

Applications :
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research

institution, inspection and quarantine bureau, university etc..



Ⅳ.Main Technical parameters
1. Chamber (Water cooled ,ambient temperature +25℃,no load )
1.1 Workspace volumeW1000 × D800 × H 1000 mm
1.2 Exterior sizeW 1600 × H 2330 × D 3195 mm (Approx )
2. Temperature
2.1 Temperature range-70℃~+150℃
2.2 Temp Deviation≦±2.0℃
2.3 Temp Stability±0.5°C
2.4 Temp Uniformity≤±2.0°C
2.5THeating up timeFrom -40⁰C to up to +85⁰C, linear 20⁰C/min (Dead load 30Kg iron)
2.6 Cooling timeFrom +85⁰C to up to -40⁰C, linear 20⁰C/min (Dead load 30Kg) iron without heating
2.7 Temp Control rampFrom 20°C to 85°C (20°C/min) +85°C dwell for 23 minutes,
From 85°C to -40°C (20°C/min)-40°C dwell for 23 minutes
From -40°C to 20°C (20°C/min) in 3 minute ramp
*Temperature performance test is based on the relevant provisions of IEC60068 -3 standard
measurement; sensor placed in the unit outlet
Ⅴ,Chamber Structure
Overall structure and chamber was composed of three parts as below.
Insulation box, separate refrigeration units, and electrical control cabinet.
1.Insulation boxwall material: high-quality carbon steel with static color spray
inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
2.DoorSingle door ,left open ,Heating wire was installed at the door frames to
prevent condensation at low temperatures.
3Observation windowWith observation window(specific size according to design) multi-hollow
electric insulation coated glass prevent condensation effectively
4.Cable portΦ100 mm located on right sides with rubber stopper and plastic cover
5.Lighting deviceLED One type located on observation window
6. HeaterHigh quality nickel-chromium wire electric heater, non contact control (SSR)
7.Condensate drain outletWith workroom condensate and condensate drain
8.Shelf for samplesstainless steel sample holder 2pcs,Adjustable, load capacity 30kg/ layer
9.Mobile CastersMobile Casters *4 with foot cups
10.Electric control boxTotal power circuit breaker, over-temperature protection.
Ⅵ,Freezing system
1. CompressorBock /Bizer Semi-Hermetic Compressor from Germany
2. RefrigerantEnvironmental-friendly refrigerant: R404A ,R23
3. CondenserShell and Tube condenser(Water -cooled)
4. EvaporatorFin-type multi-stage automatic load capacity adjustment, No frost in long-
term use of low temperature and humidity conditions
5. Other accessoriesUse internationally-known brand, such as high precise expansion valve,
oil extractor, dryer and many other accessories.
6.Refrigerant flow controlAdjust energy consumption output and control automatically to the
refrigeration system.
7.Refrigerant flow controlAdjust energy consumption output and control automatically to the
refrigeration system.

. Electrical control system
1. Control cabinetA. Emergency stop switch
B. Power switch
C. Over-temperature protection
D.RS-485 interface
3. Protection SystemA. Heater protection switch if no water
B.Heater over-current circuit breaker
C.Circulating fan over-current overload protection
D. Compressor high voltage protection switch
E. Compressor overheat protection switch
F. Compressor over-current protection switch
G. Over-voltage under-phase protection switch
H. Circuit Breakers
I. Leakage switch
J.Zero-crossing gate fluid power controller
5. AlarmEquipment stops running and sends audible alarm when the above protection appears, meanwhile, fault, causes and solutions will be displayed on the screen.

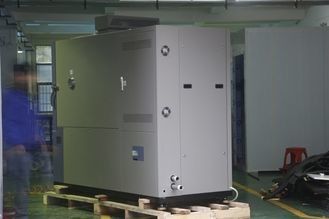

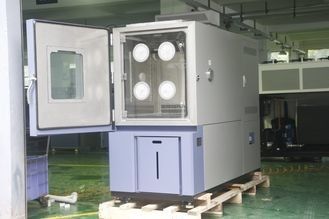

Photos show :

Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening

Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening
Rapid - Rate Temp Change Test ESS Chamber Environmental Stress Screening
