High Temperature Shock Range: | +60℃ ~ +150℃ | Low Temperature Shock Range: | -55℃ ~ -10℃ |
---|---|---|---|
Testing Chamber High Temp Range: | +60℃~+200℃ | Testing Chamber Low Temp Range: | -70℃~-10℃ |
Shock Recovery Time: | -55 °C ~ +150 °C About 5min Load IC 2kg No Heat | ||
High Light: | thermal shock chamber,environmental testing chambers |

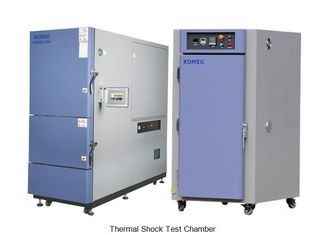

Two-slot thermal shock test chamber test material tolerance ISO
Applications
Use low temperature and high temperature cold storage heat storage tank to open DAMPER according to
the action to achieve rapid impact effect; balance temperature control system (BTC), control SSPR in
P.I.D. mode, so that the heating amount of the system is equal to the heat loss, so it can be used stably
for a long time.
Specifications
Ⅱ. Detailed parameters:( Water-cooled, water temperature is +25 ° C, no load) | |
1. High temperature shock range | +60℃ ~ +150℃ |
2. Low temperature shock range | -55℃ ~ -10℃ |
3. Testing chamber high temp range | +60℃~+200℃ |
4. Testing chamber low temp range | -70℃~-10℃ |
5.Temperature stability | ±0.5℃ |
6. Temp. Uniformity | ±2.0℃ |
7. Shock recovery time | -55 °C ~ +150 °C about 5min load IC 2kg no heat |
8. High and low temperature impact thermostat time |
30min or more |
9. Test tank transfer time | Less than 10 seconds |
Ⅲ. Structure Features | |
1. Basket Size | W 400 × H 400 × D 400 mm |
2. EX. Dimension |
About W 860 × H 2070 × D 2000 mm (not including the machine protruding part) |
3. Inner wall material | Stainless Steel Plate SUS304 |
4. Wall material | Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing |
5.Body insulation material | Rigid polyurethane Foam + glass fiber. |
6. Heater | Efficient electric radiator |
7. Circulating Fan |
a. TECO motor b. stainless steel extended shaft c. Multi-blade fan blade (SIROCCO FAN) |
8. Test chamber door | single door |
9. Thread port | 1*ψ50mm at the top of the machine |
10. Sample Holders | 2 sample holders with SUS #304 |
11. Test Drive way | Rack gear racking |
12. Packing strip | Silicone foaming |
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
