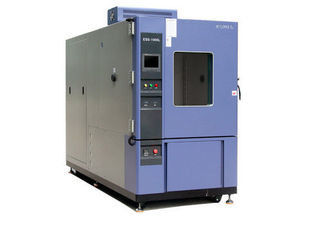

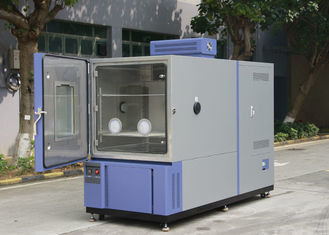

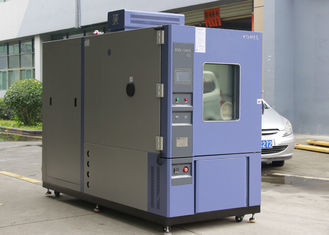

1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller

1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller
1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller 1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller 1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller 1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller

Large Image :  1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller

Product Details:
Place of Origin: China
Brand Name: KOMEG
Certification: CE approval
Model Number: ESS-1000S-C15(Water cooling)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Packed in carton firstly, and then reinforced with plywood case for outer packing
Delivery Time: 35 working days after received 60% deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 000~1, 500 SETS / YEAR
Detailed Product Description
Effective Volume: About 1000 Liters Inside Dimension: W1000 Mm*H1000 Mm*D1000 Mm
Temp. Range: -70℃ ~ +180℃ Temp. Uniformity: ≦2.0℃
Load: Up To 100KG Steel Humidity Range: 15~98%R.H
Temp Range: +15℃ ~ +50℃
High Light:

Environmental Stress Screening Chambers

,

Thermal Shock Test Chamber

1000 L Single door rapid-rate temp change test chamber with 7 inch color touch screen controller



Product Usage



This equipment is suitable for electrical, electronic, mechanical and other products, parts, materials, etc. for low temperature cold test, high and low temperature test and other products reliability test,With temperature and humidity control accuracy and wide control range,Performance indicators in line with GB5170.2.3.5.6-95 requirements..





Sample requirements



In order to make your test data more realistic and effective,The test chamber must be used reasonably while meeting the following principles:

The total mass of the load is not more than 80Kg per cubic meter of studio volumeThe total volume of the load cannot be greater than 1/5 of the working chamber volume

On any section perpendicular to the dominant wind direction,The sum of the load areas should be no more than 1/3 of the cross-sectional area of the working chamber.Do not block the flow of airflow when the load is placed.





Specifications



. Volume and size

2.1 Effective volume About 1000 liters
2.2 Inside dimension W1000 mm*H1000 mm*D1000 mm
2.3 Outer dimension

W1200 mm*H2030 mm*D2795 mm(not including the machine protruding part!)

Tips: The external dimensions should be confirmed according to the final design!

2.4 Floor area About 3.3m2; (confirm after contract signing)

. Main Technical Parameters

3.1 Test Conditions

Equipment cooling method:Water-cooled

The specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet.

3.2 Temp. Range -70℃ ~ +180℃
3.3 Temp. Fluctuation ±0.5℃
3.4 Temp. Uniformity ≦2.0℃
3.5 Temp. Deviation ≦±2.0℃
3.6 Temperature change rate

Heating rate:

-45℃~+85℃, The average speed of the whole process is 15 °C/min; (when fully loaded with 100KG steel)



Cooling rate:

+85℃~-45℃, The average speed of the whole process is 15 °C/min; (when fully loaded with 100KG steel)

3.7 Load Up to 100KG steel
3.8 Humidity range 15~98%R.H (The lowest point is 60 ° C 15% RH)



3.9 Temperature humidity control range 1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller 0
3.10 Humidity Deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

3.11 Humidity Uniformity ±3.0%RH(no load))
3.12 Humidity Fluctuation ±2.0%RH
3.13 Noise ≦75 decibels (dB) (The noise needs to be measured 1m away from the door of this chamber.)
3.14 Features

GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test .

GB-2423.2-2008(IEC68-2-2) Test B: High Temperature Test .

GJB360.8-2009(MIL-STD.202F)High Temperature Life Test .

GJBl50.3-2009(MIL-STD-810D)High Temperature Test.

GJBl50.4-2009(MIL-STD-810D) Low Temperature Test.

GB2423.3-2008(IEC68-2-3)Test Ca:Constant Heat Test .

GB2423.4-2008(IEC68-2—30)Test Db:Damp Heat Alternative Test.

GJBl50.9-2009(MIL-STD-810D)Damp Heat Test.







Product detail


1000 L Single Door ESS Chamber With 7 Inch Color Touch Screen Controller 1







FAQ:



How long will it take from order placement to goods delivery?



For standard environmental chambers, we have semifinished products and finished products, the delivery



time is about 15days.For non-standard environmental chambers, the delivery time is about 45~50 days.



Do you have any advantages in your price?



KOMEG production bases in Dongguan songshan lake district. At present it is the largest scale producer



in environmental test chamber filed. We are looking forward to long term cooperation business



relationship with customer, with the idea for small profits but quick turnover, customer will get the most



competitive price from our factory headquarters directly.



How many certifications do you have ?



We have passed the CE certification, the ISO certification and certification etc.



May I ask you how do you deliver these products?



We have several ways of delivery, such as FOB, CIF, DDP etc.



Which countries have your product sold to?



We have sold to so many countries, such as Russia, America, Korea, Denmark, Vietnam, Thailand,India,



Singapore, Pakistan, Turkey, German, England and other more than 40 countries.



How long the warranty of your environmental chambers covered?



We provide free parts replacement service for accessories with one year.



What solutions will you provide if your products break down ?



We will give you guidance through video conference/picture when we receive your notice of repair. If



necessary, we could also send our engineers to your country for troubleshooting.



How to install and use the product?



The product is shipped with an operating instructions and video of English version.For large walk in test



chamber that can't be put into the container, we will dismantled it first and send our engineer for



installation





After-sale Service:


If you face any problems in future during testing process we promise we will give you a reply within 48



hours and solution provide within 3 working days. We can offer operation video and English operation



muanual. We can provide video-conference. If customers require on-site service, the transport and travel



expense shall be borne by customer.





Packing Details:


We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched



first, then use strong plywood case for easyload and transport, and to keep the chambers from potential



crash or impact.
