Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion

China Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion supplier
Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion supplier Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion supplier

Large Image :  Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion

Product Details:

Place of Origin: China
Brand Name: Komeg
Certification: CE
Model Number: ESS-370S-C15

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: rigid poly foam and wooden box
Delivery Time: 30 days after confirm the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs /day
Contact Now
Detailed Product Description
Temp Range: -40℃~+85℃ Humidity Constancy: +-3.0℃
Cooling Mode: Air Cooled Interior Material: Stainless Steel Plate
Insulation Material: Rigid Poly Foam And Glass Fibre Wool

Rapid-rate Temperature Change Test Chamber Environmental Stress Screening

Main Technical Specification (swater cooled, water temperature +25℃, no load )



1. Chamber size

Workspace volume: W 1000 × H 1000 × D 800 mm

Exterior size: W 1200 × H 2030 × D 2645 mm (about)

2.Temperature range

-70c to +150c



3.Heating up rate

From -40°C to +85°C, average 15°C/min with load 48KG

4.Cooling down rate

From +85°C down to -40°C, average 15°C/min with  load 48KG

2.Insulation box

※ wall material: high-quality carbon steel with static color spray

※ inner wall material: SUS304 # matte stainless steel plate

※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

3.Door Single door. Heating wire was installed at the door frames to prevent condensation at low temperatures.
4. Observation window Observation window on the door. Multi-layer hollow electro-thermal coating glass can effectively heat insulation and prevent condensation.
5. Lighting device One lamp on the observation window
6. Heater High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR).
7. Humidification

Humidifying basin heating and humidifying method;

Stainless steel sheathed heater;

Heater control: non-contact pulse width modulation, SSR (solid-state relay);

Water level control device, heater anti-dry device.

8. Condensate water outlet Equipped with condensing water and condensate drainage unit
9.Cable port Φ100mm*1 located on both sides(each*1) with rubber stopper and plastic cover
10.Sample holder Two layers of stainless steel sample holder, load capacity 30kg/layer
11. Mobile casters Containing mobile casters (with goblet)
12.Electric control box Total power circuit breaker, over-temperature protection.
13. Water Pump System Water pump of automatic water supply

. Electrical control system
1. Control Panel

a. Emergency stop switch

b. Power switch

c. Over temperature protection device

d. RS-485 or RS-232 Interface

2. Safety protection device

A. Heater dry combustion protection switch

B. Humidifier empty burn prevent protection switch

C. Heater over-current circuit breaker

D. Humidifier over-current circuit breaker

E. circulation fan over current overload protection

F. Compressor high pressure protection switch

G. compressor over temperature protection switch

H. compressor over-current protection switch

I. Over-voltage open phase, reverse protection switch

J. Circuit breaker

K. No fuse switch

L. Low humidifier protection

M. Water tank low water level warning

N. Zero-crossing gate fluid power controller



Applications



Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)





Standards Implemented and met



● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test

● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test



Our Services:


We are here to help you.Services available:

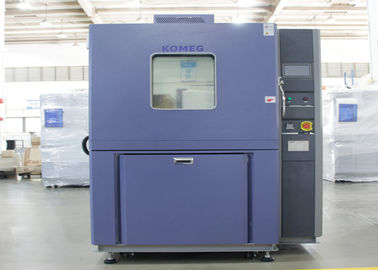

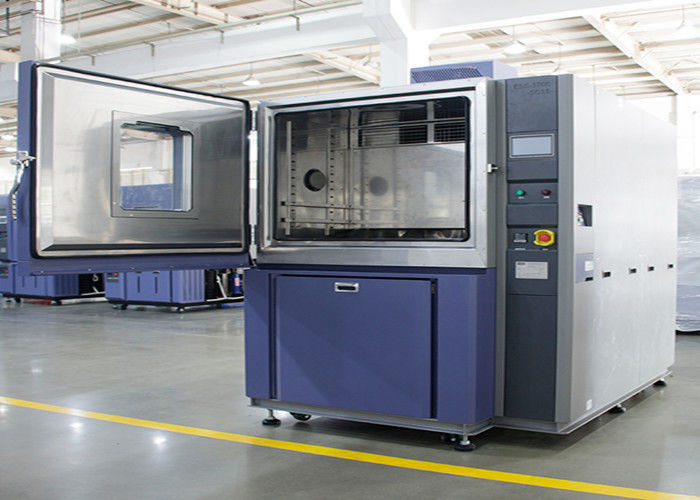

Photos show



Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion

Stainless Steel Plate ESS Chamber Environmental Stress Screening Anti - Explosion
